Product parameters:
| Model |
LED module 3535 |
 |
| Led source |
Edge-light |
| Type |
Rigid strip |
| Body Material |
aluminum |
| Function |
for light box, Lighting |
| Color temperature |
6000K-7000K |
| Emitting color |
RGB/ white |
High quality 2mmaluminum alloy base |
| Light Angle |
15*45 |
 |
| Length |
45CM, 5 lamp beads |
| Lamp power |
11.5W/meter |
| CRI(Ra>) |
80 |
| Input voltage |
DC24V |
| Lamp luminous flu(lm) |
400 |
| Working lifetime(hour) |
50000-70000 |
| IP rating |
IP67(waterproof type) |
| Working temperature |
-40-60 |
CP precision electronic components |
| Led chip brand |
Samsung |
 |
| OEM & ODM |
Both |
| Certification |
UL,CE,ROHS |
| Free Sample |
one sample is available |
| MOQ |
1pcs |
| Packaging details |
carton+splint wooden frame |
| EXW price |
USD13.8 /per meter |
| Supply ability |
100000 meters/ per week |
Convenient cable wire socket |
|
Standard - edge-lit
|
Waterproof_edge-lit
|

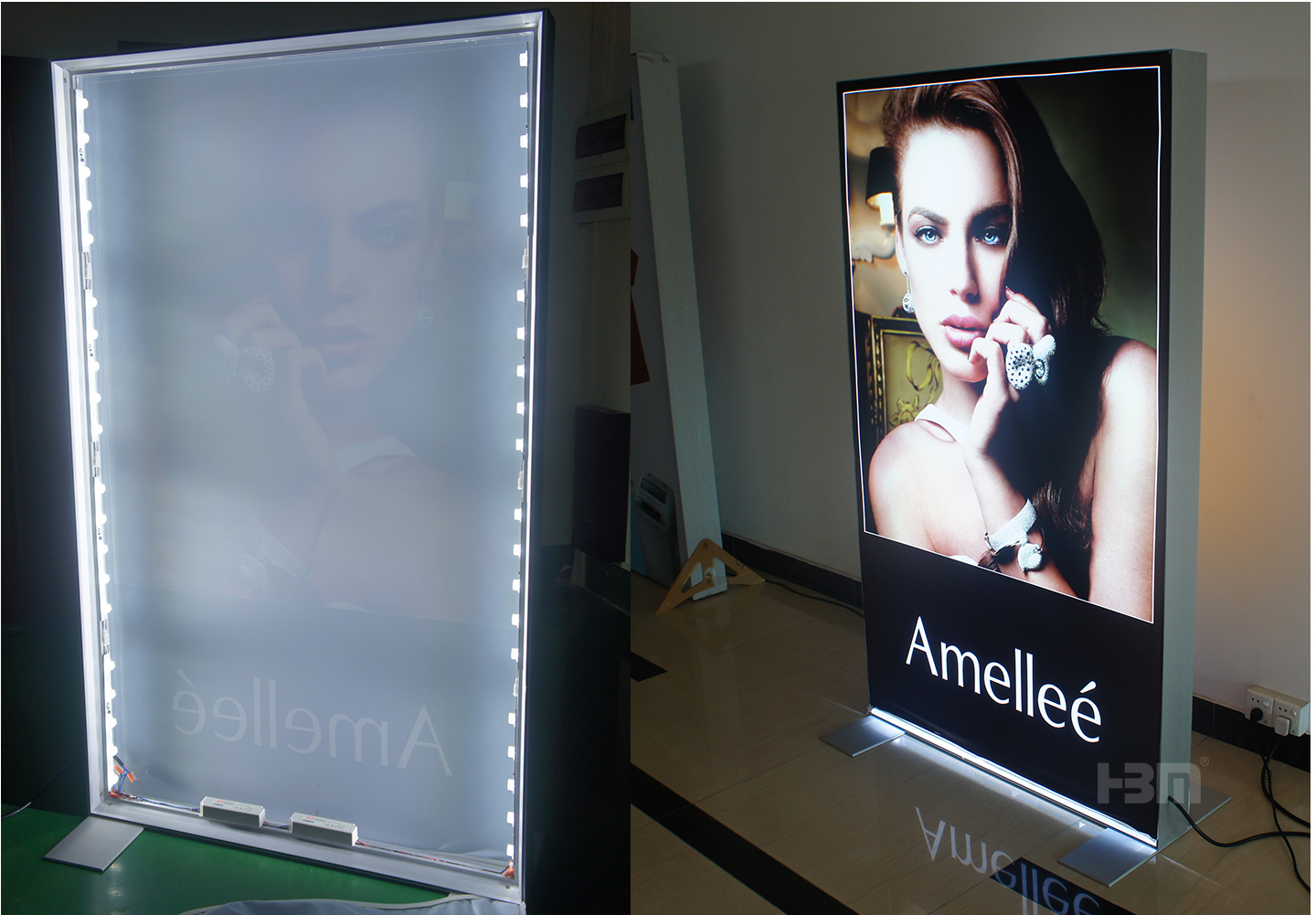

Edge-lit -Single-sided light box application:

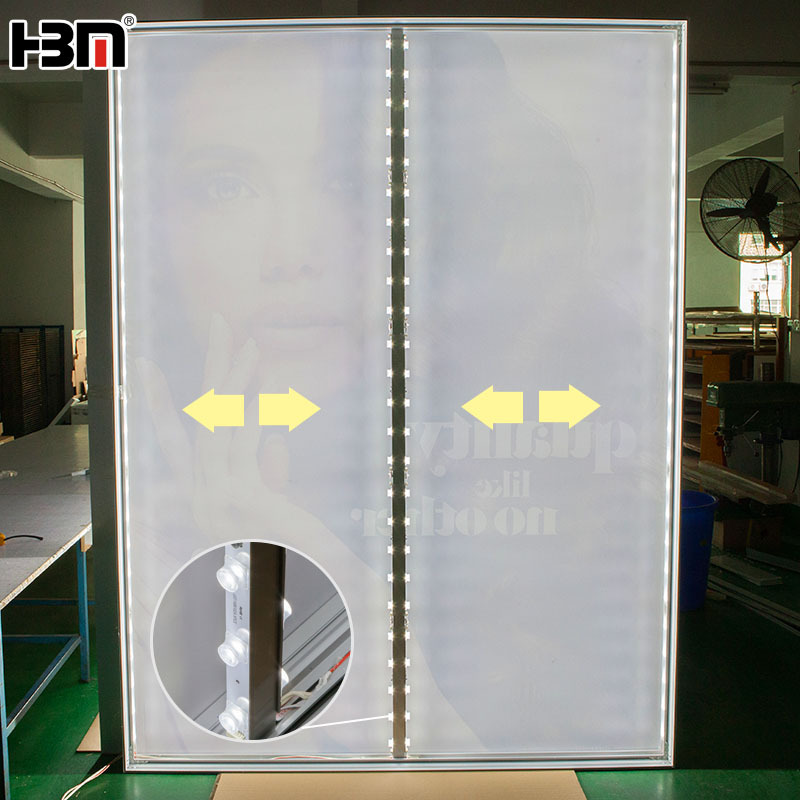

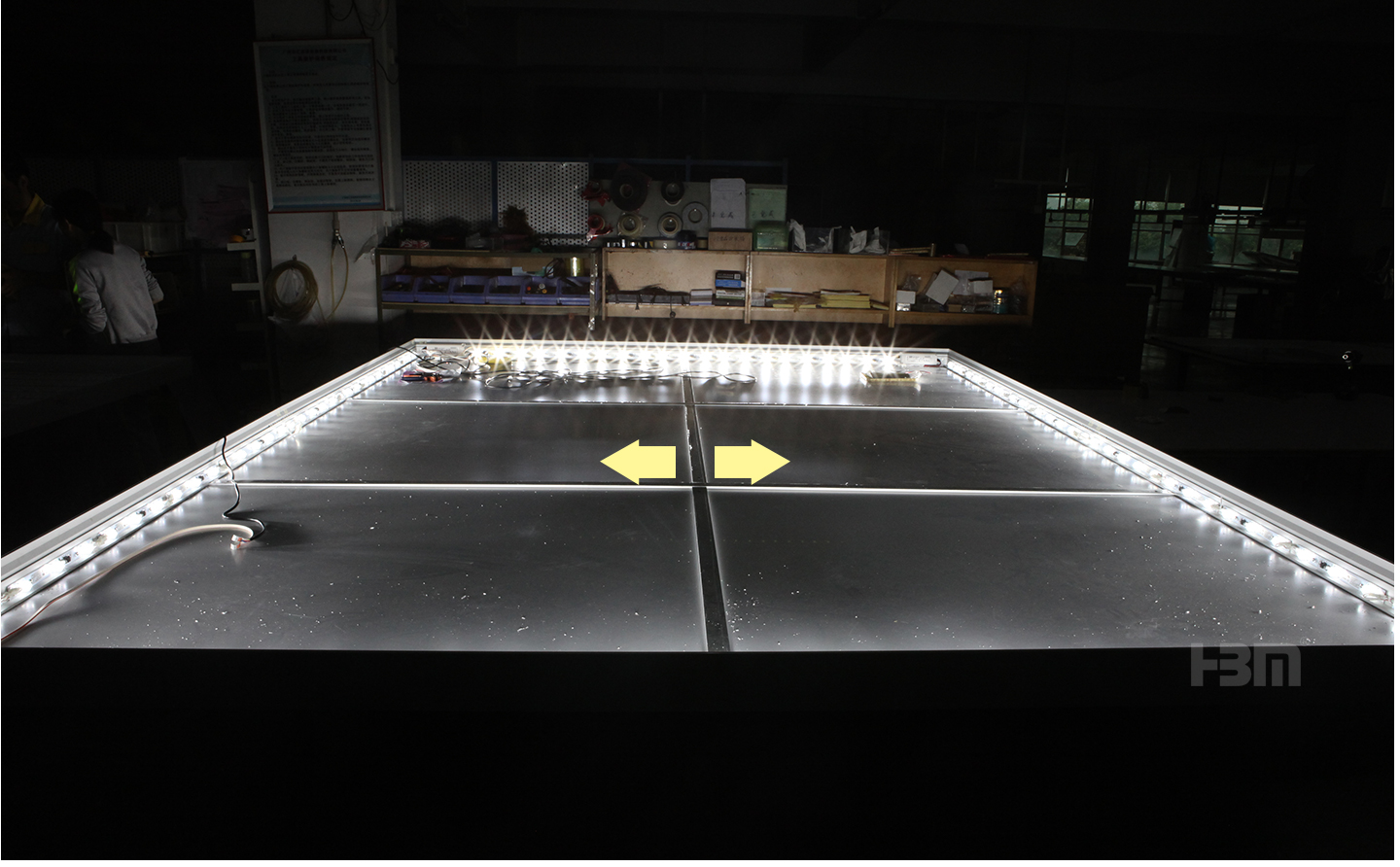

Edge-lit _double-sided light box application:
Narrow-beam LED module for edge-lit lightingThis product features a SMD3535 edge-lit source configured as a rigid LED strip module with a beam angle of approximately 15°×45°. It is equipped with a Samsung chip and designed to deliver consistent, directional illumination along the edge of fabric light boxes. The module is available in DC 12V and 24V versions, allowing integration into different voltage systems. Mounted on an aluminum PCB, the module benefits from enhanced heat dissipation during continuous operation. The rigid strip structure improves stability during installation. The light source is specifically designed for use in single-sided or double-sided fabric light boxes, providing high-intensity edge lighting while maintaining uniformity across the surface. A waterproof version is also available to expand installation flexibility.Output performance and application rangeThe module operates at a power of 11.5W per meter and delivers a luminous flux of around 400 lumens. It emits a white light with a color temperature between 6000K and 7000K, and offers color rendering index (CRI) above Ra 80, ensuring clear and accurate image or text visibility. The expected lifespan of the module is between 50,000 to 70,000 hours, supporting long-term use in stable lighting environments. It is built to perform within a wide working temperature range of –40°C to +60°C, making it suitable for indoor and semi-outdoor usage. The maximum effective lighting distance from module to fabric surface can reach 1800mm, depending on the light box depth and configuration, ensuring full surface coverage with minimal shadowing.Structural compatibility and installation formThis edge-lit LED module is designed to match fabric light boxes that utilize aluminum profile frames. It can be mounted along the frame edges to deliver lateral illumination across the fabric surface. The rigid strip structure allows for straightforward alignment and secure attachment inside the box system. The product is compatible with various accessory components including aluminum mounting frames and electrical connectors used in standard LED signage assemblies. Depending on specific project requirements, the module can be selected in waterproof or non-waterproof formats. It is ideal for applications that rely on edge-based lighting layouts, where narrow beam control and distance illumination are essential for achieving uniform backlighting results.
Product AdvantagesStable and even brightness across wide surfacesThe narrow 15°×45° beam angle of the SMD3535 edge-lit source enables focused and consistent light projection along the edges of fabric light boxes. This ensures that light travels evenly across the visual plane, reducing dark spots or inconsistent gradients. The module supports up to 1800mm distance from the fabric surface, making it especially effective for larger-format displays or double-sided light boxes where long throw lighting is required. The rigidity of the aluminum strip provides physical support during extended installations, preventing warping and preserving light directionality. Uniform brightness is maintained over prolonged usage, reducing the need for frequent adjustments.Long-lasting build with temperature resistanceThe product is constructed using an aluminum PCB, which facilitates better heat management and prolongs the LED lifespan. It operates reliably within a temperature range of –40°C to +60°C, making it suitable for environments with variable thermal conditions. With a projected service life of 50,000–70,000 hours, the edge-lit LED module reduces maintenance frequency and replacement costs. The inclusion of waterproof options provides installation flexibility in damp or partially exposed settings. The high CRI rating ensures that color and detail in fabric graphics are accurately illuminated, which is important for visual display clarity in commercial or signage uses.Flexible voltage input and mounting designWith support for both 12V and 24V DC, the module integrates easily into common LED power systems used across display installations. Its rigid design simplifies alignment and structural support inside the light box frame. The module's design is compatible with aluminum profile systems widely used in signage applications, enabling a secure and space-efficient layout. For dual-sided fabric boxes or deeper enclosures, the optical characteristics of the SMD3535 edge-lit source allow consistent light coverage without increasing module count. Installers can select between waterproof and standard variants depending on project environment, ensuring efficient and reliable performance across varied conditions.
