SMD3030 waterproof backlight led curtain type backlit strip
  • SMD3030 waterproof backlight led curtain type backlit strip
  • SMD3030 waterproof backlight led curtain type backlit strip
  • SMD3030 waterproof backlight led curtain type backlit strip

SMD3030 waterproof backlight led curtain type backlit strip

Item No.: HBMH-F-50-6

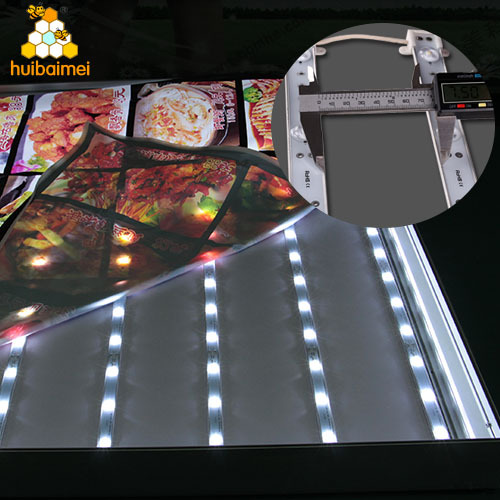

LED3030 waterproof backlit light strip, it is popular used for outdoor fabric light box(depth from 40mm-120mm), 170 degree beam angle, low decay, there is no ribbon shadow on the light box once light up.
INQUIRY
SMD3030 waterproof backlight lattice led strip:

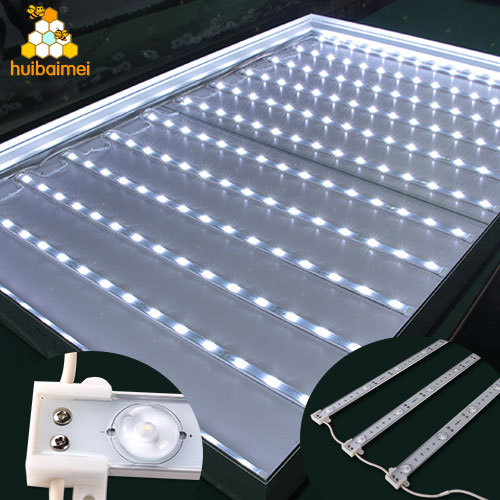

LED SMD3030 waterproof backlit light strip with lens,Taiwan Epistar chip which is popular used for slim fabric light box (depth from 40mm-120mm), 170 degree beam angle, low decay, there is no ribbon shadow on the light box once light up. It is with CE/RoHS certificates.

Product parameters:
 Model  diffuse reflection SMD3030 (waterproof)
 Led  source  back-light
 Type  lattice light strip
 Body Material  aluminum
 Function  for light box,Lighting
 Color temperature  6000K-7000K

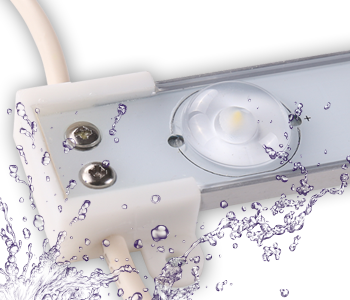

 Emitting color  RGB/ white Epoxy resin process waterproof itemIP67 rating
 Light Angle  170℃
 Length  50CM, 6 lamp beads
 Lamp power  10.8W/meter
 CRI(Ra>)  80
 Input voltage  DC24V
 Lamp luminous flu(lm)  400
 Working lifetime(hour)  50000-70000
 IP rating  IP65
Working temperature   -40-60 Top quality PMMA lens
 Led chip brand  epistar
 OEM & ODM  both
 Certification  CE,ROHS
 Free Sample  one sample is available
 MOQ  1 meter
 Packaging details  carton+splint wooden frame
 FOB price  USD 5.54/per meter
 Supply ability  100000  meters/ per week Top quality aluminum alloy backpanel with capillary groove
