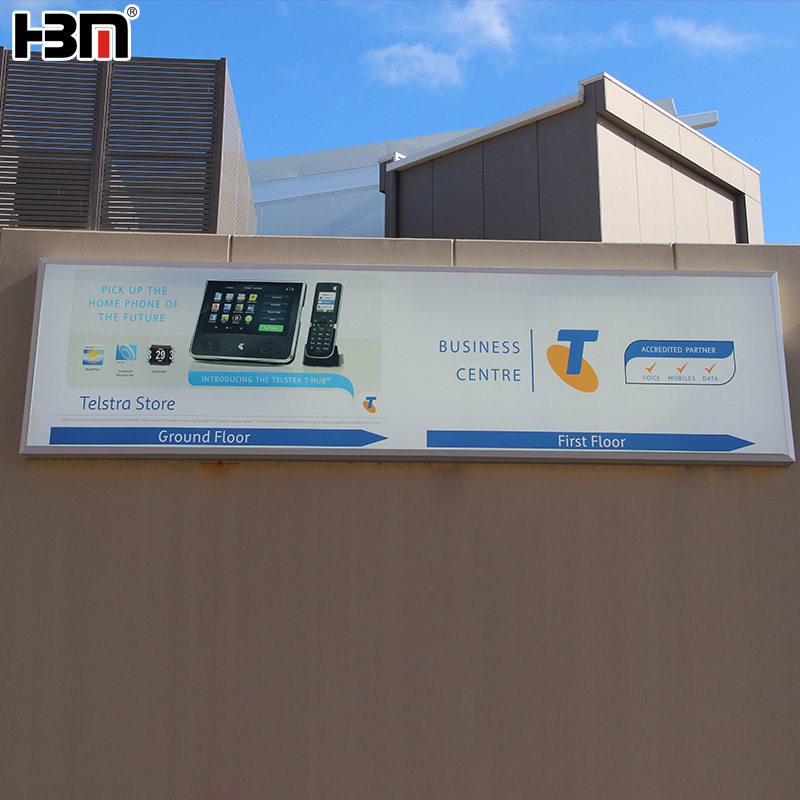

120mm aluminum profile large front open waterproof outdoor advertising light box

This is large project light box for wall. according to big size, to design the aluminum profile though test it. outdoor light box is including to waterproof led light, aluminum profile,waterproof power supply.waterproof poster

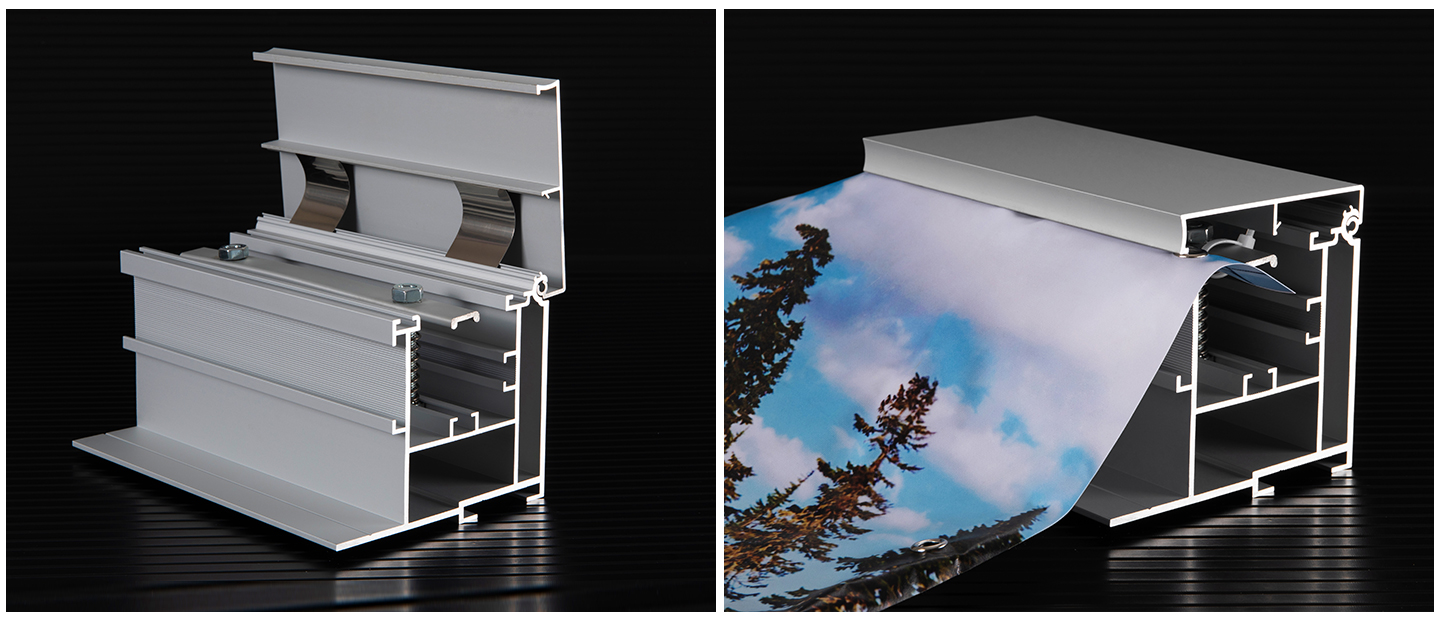

The aluminium profiles selected for this light box project：

 Enhanced project aluminum profile—Product parameters：

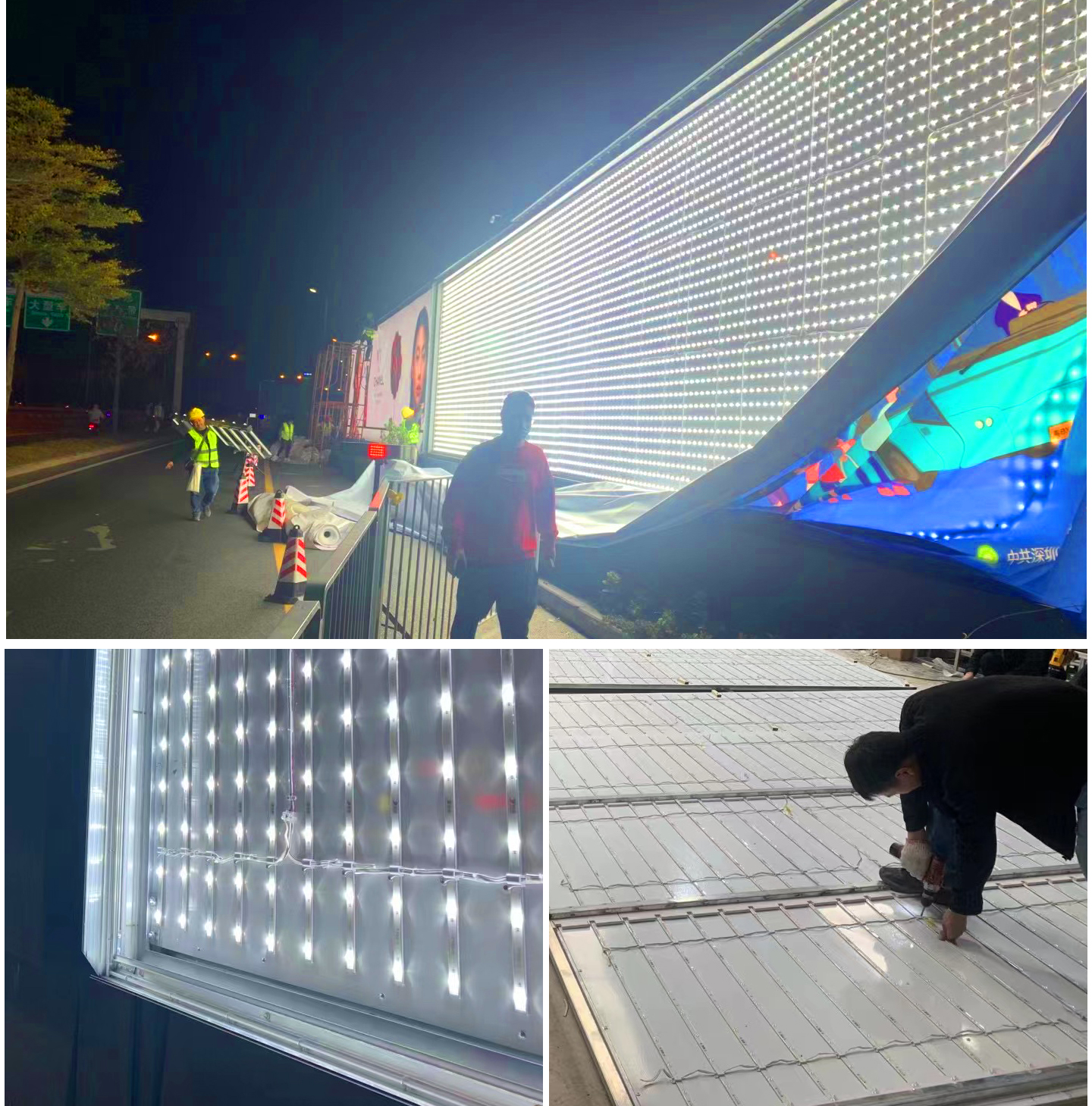

Installation details of outdoor fabric light box:

Xing Hang Yun offer one-stop solution for outdoor fabric light boxes, waterproof light boxes and advertising light boxes,

Customisable any size and specification,Contact us get free quote.

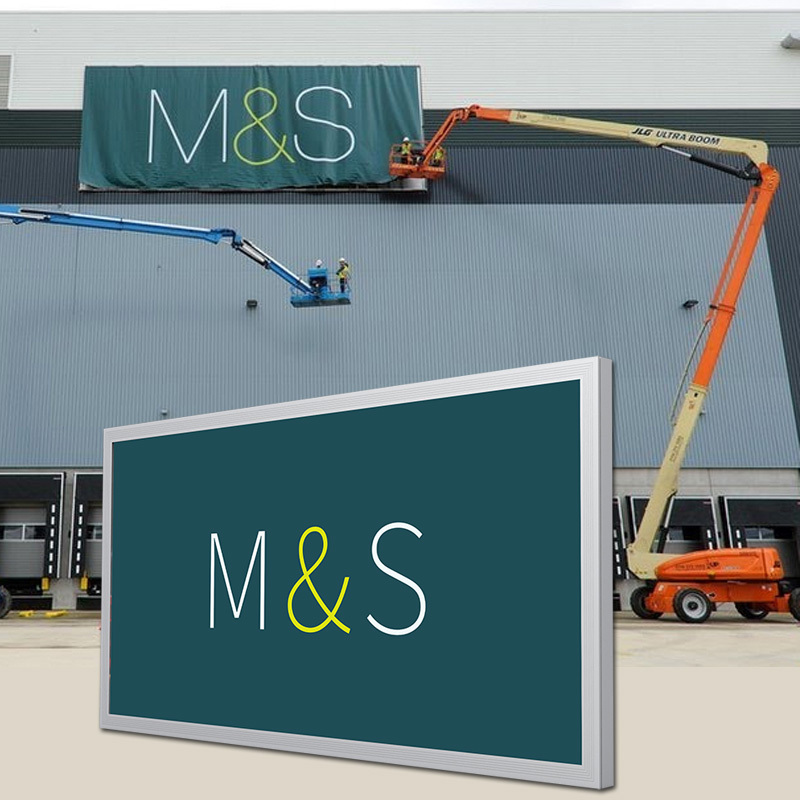

Reinforced aluminum profile structure ensures durability for large-size wall-mounted applications

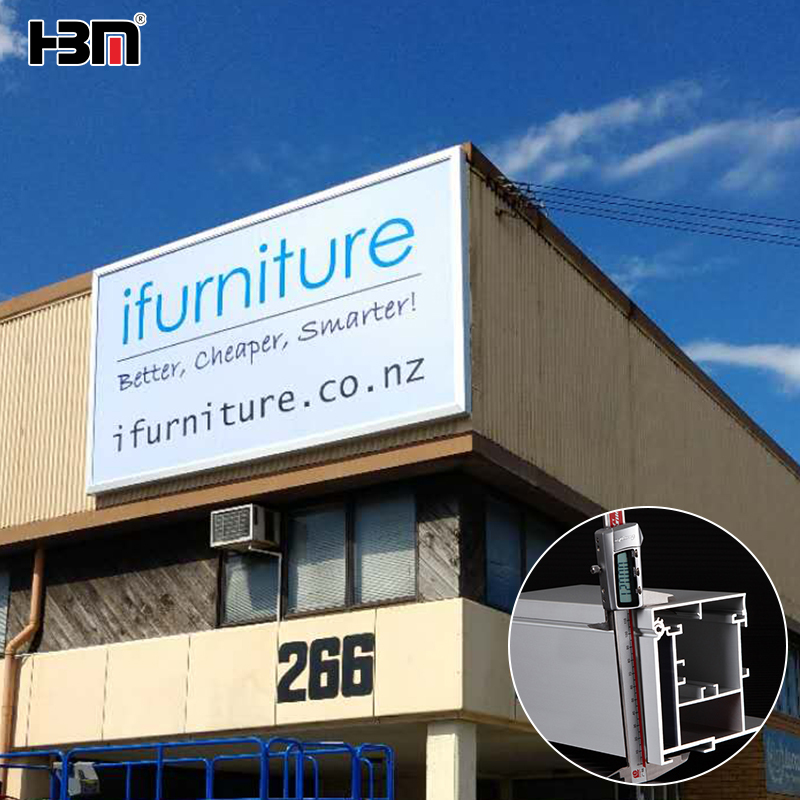

This product features a front-open aluminum profile frame specifically designed for large-format wall-mounted advertising light boxes. With an overall thickness of approximately 120mm and a face width of 52mm, the structure is engineered for stability in high-exposure environments. The front frame profile has a wall thickness of 3.3mm, while the back frame is 2.8mm, providing enhanced rigidity to support large-scale fabric graphics. Each aluminum profile can be extruded in lengths up to 6 meters, making it suitable for extra-wide installations. The product includes key accessories such as press bars and fabric fixing strips. The front-opening design allows for convenient fabric replacement and internal maintenance, reducing installation time for outdoor applications. Built to align with the structural and dimensional requirements of a 120mm aluminum profile large front open waterproof outdoor advertising light box, this system offers practical advantages for engineers and signage installers.

Integrated waterproofing design protects internal components during long-term outdoor exposure
Engineered for permanent outdoor use, this advertising light box incorporates sealing and drainage features to maintain performance in variable weather conditions. The aluminum profile system is designed with structural grooves and connecting elements that support waterproof assembly when installed correctly. This prevents rainwater ingress and protects internal components such as fabric graphics and optional LED modules. The waterproof function is not achieved through adhesive sealing but relies on precision-machined parts and consistent tolerances, ensuring long-term weather resistance. The outer frame and accessories are configured for compatibility with waterproof junctions, making the box suitable for installation on building facades or other exposed vertical surfaces. Designed with high-strength aluminum and engineered sealing principles, it meets the requirements of a waterproof outdoor advertising light box in both design and performance.

Modular accessory configuration allows for flexible installation and component integration
The light box system is structured for efficient on-site installation and optional component integration. While the base product includes essential components like the aluminum frame, fabric locking strips, and press bars, additional elements such as LED backlight modules, external power supply enclosures, and customized surface finishes can be configured per project needs. The front-open design simplifies the replacement of graphics without requiring full disassembly. The internal volume and panel layout are optimized for uniform light distribution when paired with compatible LED systems. Though the product does not include lighting by default, its structure supports seamless integration. This modular configuration streamlines logistics for signage manufacturers working on outdoor projects requiring 120mm aluminum profile large front open waterproof outdoor advertising light box specifications.



Product Advantages

Enhanced structural thickness supports long-term outdoor display without deformation
The aluminum profiles used in this product offer increased wall thickness—3.3mm for the front frame and 2.8mm for the back—which significantly improves load-bearing performance. This added rigidity is crucial when fabricating large-format light boxes exposed to wind and temperature variations. The 120mm depth and multi-groove structure further enhance mechanical stability. These characteristics align with the demands of large front open waterproof outdoor advertising light box use cases where strength and durability are essential.

Weather-resistant design reduces maintenance requirements in exterior signage applications
This light box is designed with outdoor exposure in mind, offering a waterproof structure that eliminates the need for frequent maintenance. The waterproofing mechanism is integrated into the profile design rather than applied externally, minimizing points of failure. Once assembled, the light box resists water intrusion, protecting internal graphics and lighting components. This makes it suitable for long-term use in building-mounted outdoor advertising light box installations where weather resistance is a key concern.

Easy front-access configuration simplifies graphic replacement and LED maintenance
Thanks to its front-open structure, this light box enables fast and straightforward access for print changes or LED adjustments. Installers can replace fabric graphics directly from the front without removing the entire frame, reducing labor time on site. This design is especially beneficial for high-mounted or large-format advertising setups. When paired with backlight modules, the internal layout ensures consistent light distribution across the display surface. The user-oriented opening mechanism supports the efficient deployment of 120mm aluminum profile large front open waterproof outdoor advertising light box systems.

About Us

Empowering Global Brands with Innovative Light Box and Display Solutions

XING HANG YUN, located in Guangfeng Building, Dashi Mengyong Village, Panyu District, Guangzhou City, the company was founded in 2008, with a registered capital of 1 million yuan, is a company in Guangzhou City, Guangdong Province to R & D design, production and marketing
A manufacturer of advertising equipment such as advertising light boxes, SEG aluminum profiles and billboards.

Core Manufacturing Capabilities and Quality Assurance

• Comprehensive Product Range: We offer a full spectrum of products, including fabric light boxes, aluminum profiles (ranging from 17mm to 160mm in depth), and various LED models.​
• One-Stop Service: From profile design and mold production to the assembly of finished products, our integrated approach ensures time-saving, cost-effective, and efficient services.​
• Certified Quality: Our factory has passed the ISO9001 quality management system certification. Additionally, some of our products have obtained international certifications such as CE, RoHS, and UL, ensuring compliance with global standards.​


Production Strength

• Experienced Team: Our technical and sales teams boast over 10 years of experience in the industry, providing expert guidance and support throughout the project lifecycle.​
• Global Reach: HBM's products are exported to 98 countries, serving a diverse clientele that includes renowned brands like China Mobile, Chimelong Group, Wanda Group, Midea, and international names such as Gucci and Dior.​

Commitment to Sustainability

Eco-Friendly Practices: Since 2012, we have invested significantly in upgrading our production equipment to meet national environmental safety standards. Notably, we transitioned to natural gas combustion equipment, enhancing safety and reducing environmental impact.​

Customer Collaboration Process

• Consultation: Understanding client needs and project requirements.​
• Design & Development: Tailoring solutions from profile design to mold production.​
• Production: Manufacturing high-quality products with precision.​
• Quality Assurance: Rigorous testing to ensure product excellence.​
• Delivery & Support: Efficient logistics and dedicated after-sales service.​

Global Service Capability

With a robust export experience spanning over 10 years, XING HANG YUN adeptly handles various professional foreign trade affairs, ensuring timely and safe delivery of goods. Our mature after-sales service system guarantees customer satisfaction across different regions.​

Partner with XING HANG YUN for reliable, high-quality, and innovative advertising display solutions that elevate your brand's visibility globally.

FAQ

Who are we?
XING HANG YUN is a specialized manufacturer of advertising light boxes and display products, serving clients in 98 countries with over a decade of industry experience.​

How can we guarantee quality?
Our factory is ISO9001 certified, and our products have obtained international certifications like CE, RoHS, and UL. We implement strict quality control measures throughout the production process to ensure product excellence.​

What can you buy from us?
We offer a wide range of products, including fabric light boxes, aluminum profiles (17mm to 160mm depth), various LED models, and customized advertising display solutions.​

Why should you buy from us and not from other suppliers?
XING HANG YUN provides one-stop services from design to production, ensuring efficiency and cost-effectiveness. Our extensive experience, certified quality, and global client base, including brands like Gucci and Dior, attest to our reliability and excellence.​

What services can we provide?
We offer comprehensive services, including product design, mold production, manufacturing, quality assurance, and after-sales support, tailored to meet the unique needs of each client.

Looking to elevate your brand's visibility with a high-quality LED light box? Contact XING HANG YUN today to customize your display solution and make a lasting impression!
