Back-lit led with lens Home > LED strips > Back-lit led with lens
manufacture light box backlight LED strip light SMD2835
  • manufacture light box backlight LED strip light SMD2835
  • manufacture light box backlight LED strip light SMD2835
  • manufacture light box backlight LED strip light SMD2835

manufacture light box backlight LED strip light SMD2835

Item No.: HBMH-TJ-50-6-H
SMD2835 diffuse reflection LED, Taiwan Epistar chip with custom PMMA Lens reflect light, glows up to 170° when light source is through the lens, thus, it can achieve uniform light highlighting effect and be away from ribs.
INQUIRY
SMD2835 diffuse reflection LED:
SMD2835 diffuse reflection LED, Taiwan Epistar chip with custom PMMA Lens reflect light, glows up to 170° when light source is through
the lens, thus, it can achieve uniform light highlighting effect and be away from ribs. The item is usually used in ultra thin fabric light box
and counters decoration lighting.

Product parameters
 Model  diffuse reflection SMD2835
 Led  source  back-light
 Type  lattice light strip
 Body Material  aluminum
 Function  for slim fabric light box, Lighting
 Color temperature  6000K-7000K

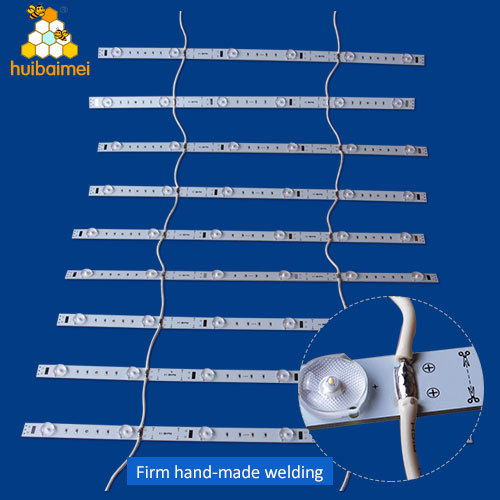

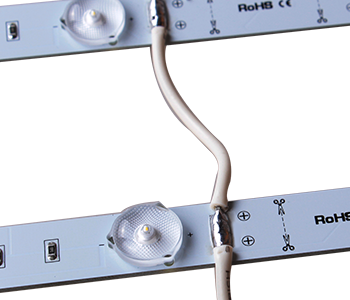

 Emitting color  RGB/ white Firm hand-made welding and If you need to adjust the spacing,  just loosen the screw
 Light Angle  170℃
 Length  50CM, 6 lamp beads
 Lamp power  12W/ meter
 CRI(Ra>)  80
 Input voltage  DC24V
 Lamp luminous flu(lm)  400
 Working lifetime(hour)  50000-70000
 IP rating  IP67(Waterproof item)

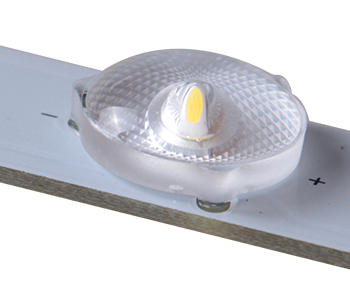

  Working temperature   -40-60 Top quality PMMA lens
 Led chip brand  epistar
 OEM & ODM  both
 Certification  UL,CE,ROHS
 Free Sample  one sample is available
 MOQ  1 meter
 Packaging details  carton+splint wooden frame
 FOB price pls contact with seller
 Supply ability  100000  meters/ per week High quality double-deck 2mm fiberglass panels with excellent heat exchange
