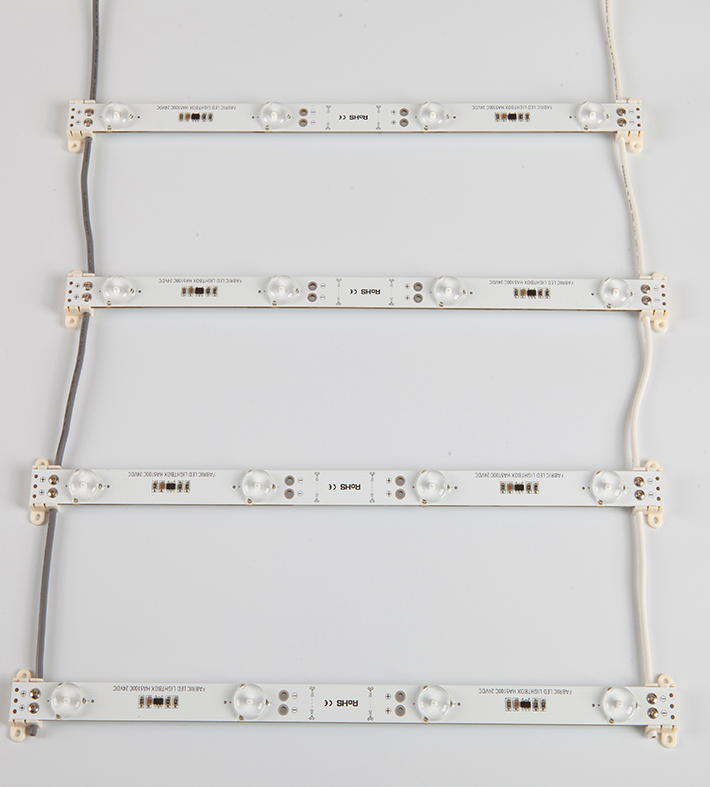

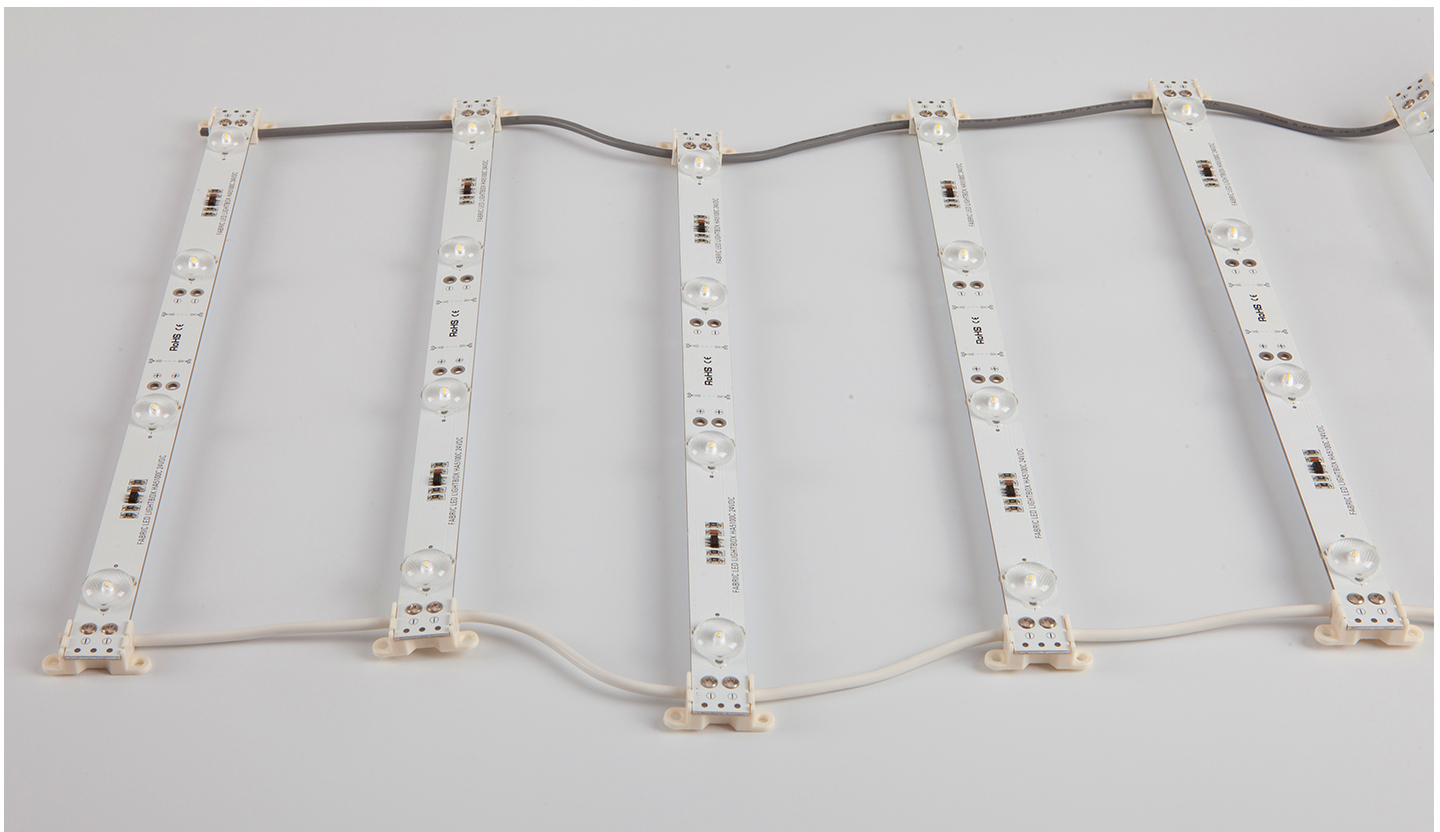

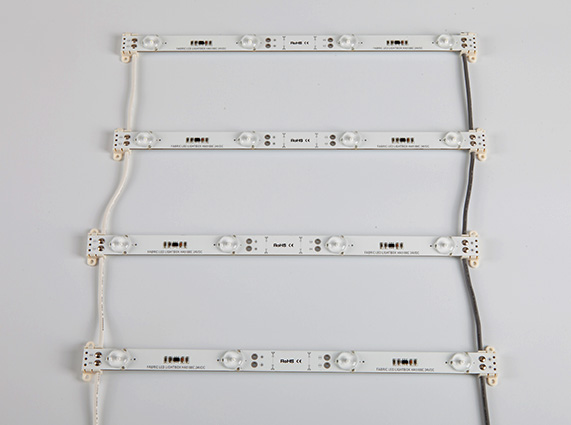

SMD3030 backlight LED lattice led strip with lens :
SMD3030 LED backlight lattice strip, Taiwan Epistar chip, beam angle 170 degree. It is widely used for slim fabric lightboxes as backlight.
Keep high brightness without
LED light strip parameters:
| Model |
SMD3030 |
 |
| Led source |
Back-light |
| Type |
Lattice strip |
| Body Material |
MDF |
| Function |
For fabric light box, Lighting |
| Color temperature |
6000K-7000K |
| Emitting color |
White |
Ajust the space of LED strip according to customers' special requirements |
| Light Angle |
120 |
 |
| Length |
50CM, 12 lamp beads |
| Lamp power |
6W/meter |
| CRI(Ra>) |
80 |
| Input voltage |
DC12V |
| Lamp luminous flu(lm) |
400 |
| Working lifetime(hour) |
50000-70000 |
| IP rating |
IP34 |
| Working temperature |
-40-60 |

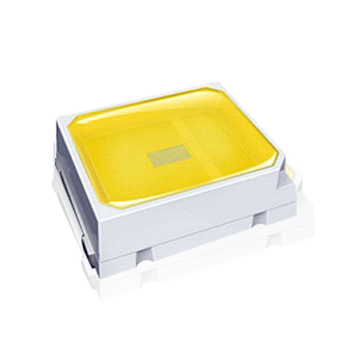

top quality Taiwan Epistar chip SMD3030 packing |
| Led chip brand |
Epistar |
 |
| OEM & ODM |
Both |
| Certification |
CE,RoHS |
| Free Sample |
One sample is available |
| MOQ |
1m |
| Packaging details |
Carton+splint wooden frame |
| EXW price |
USD3.8 /per meter |
| Supply ability |
100000 meters/ per week |

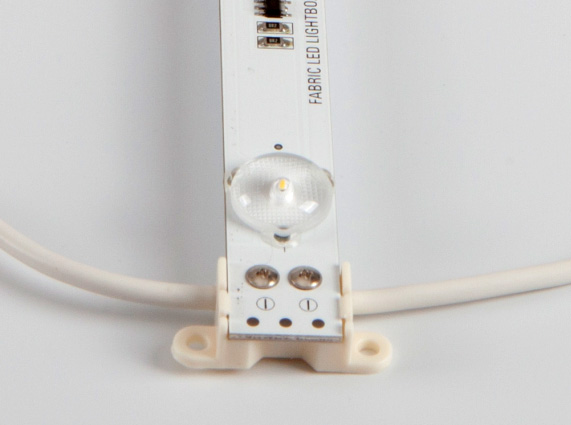

high quality injection T-buckle, convenient and durable |

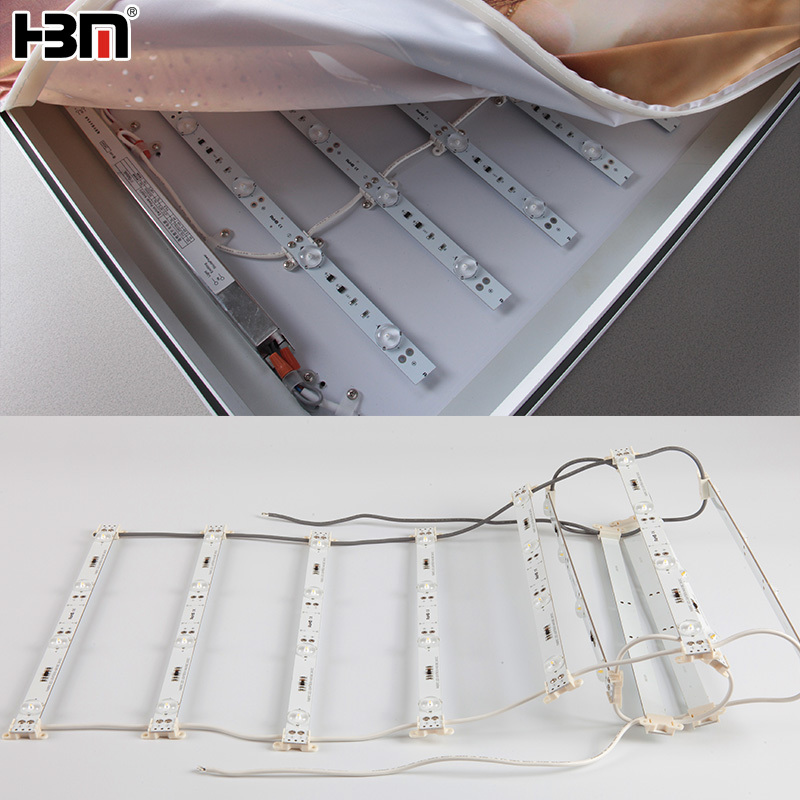

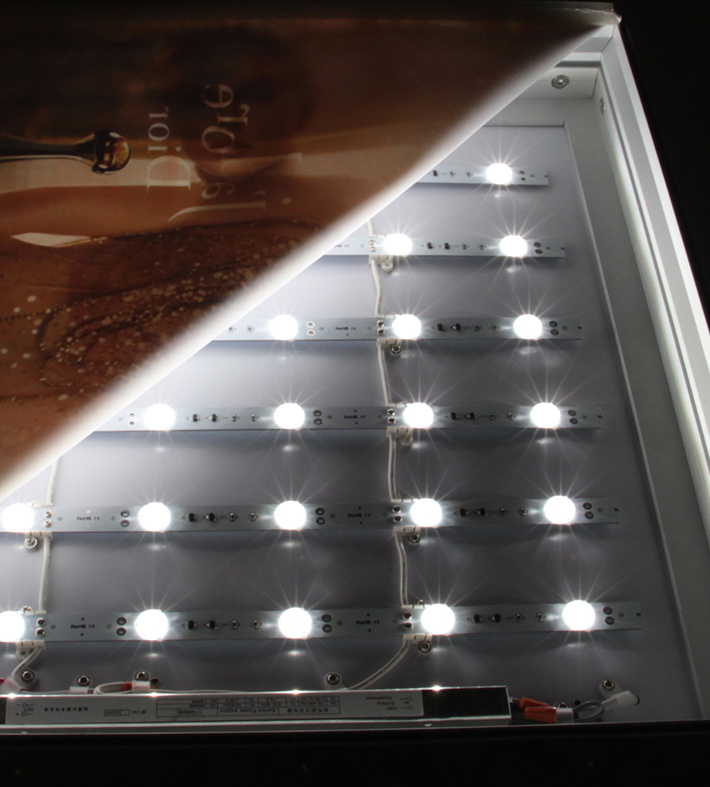

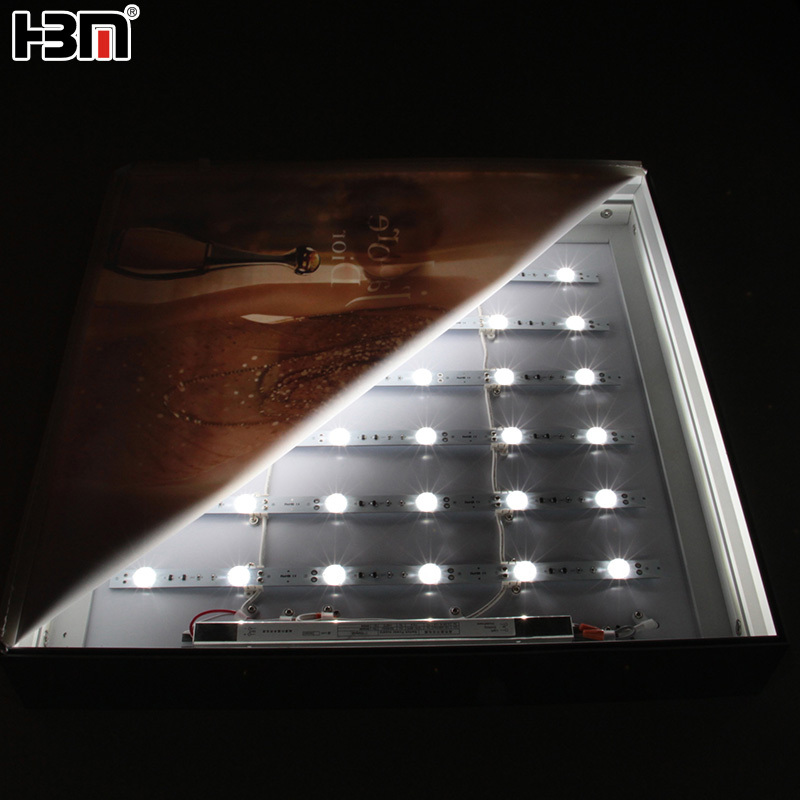

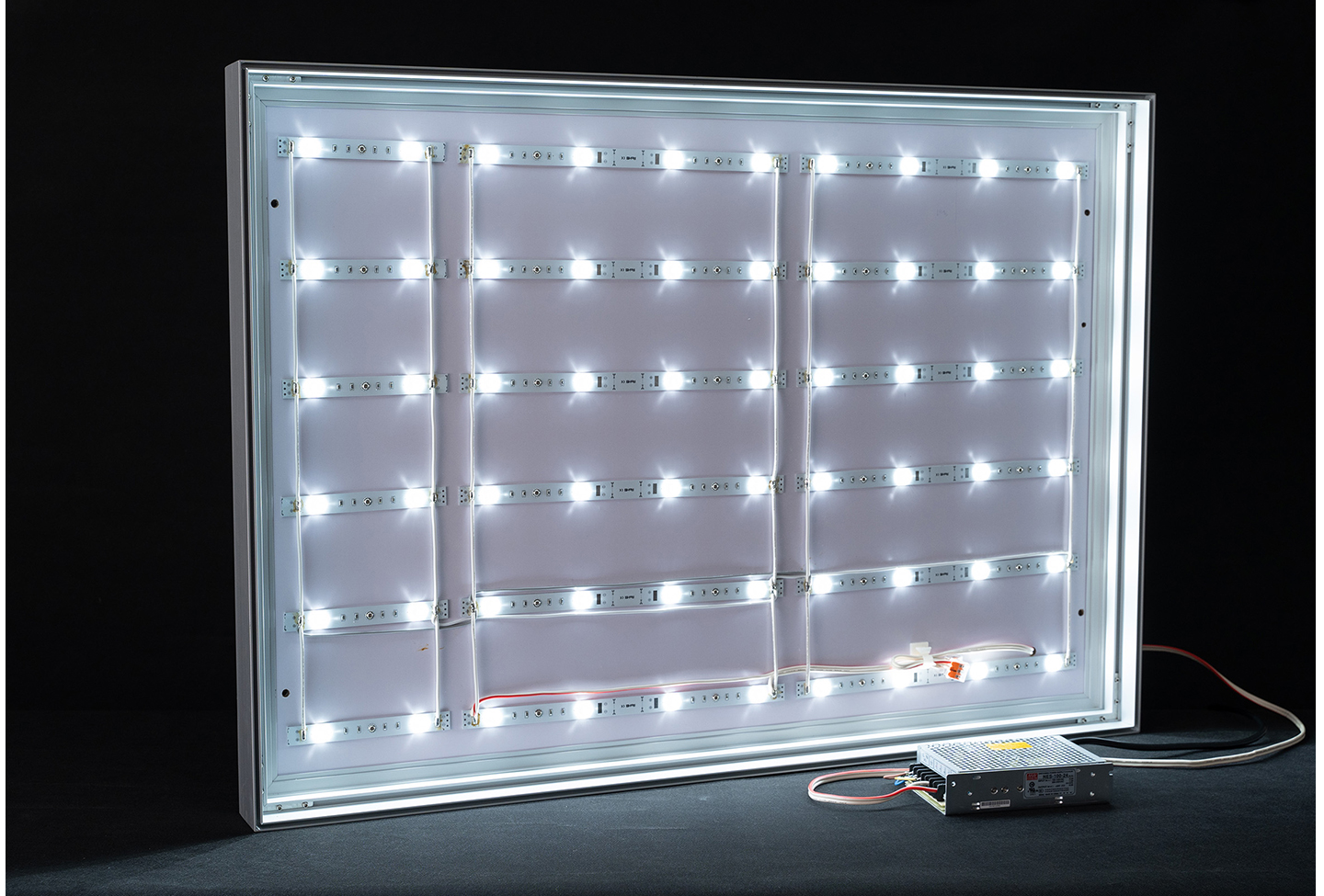

SMD3030 led light strip application of frameless light box：
Uniform illumination design optimized for slim fabric light boxes

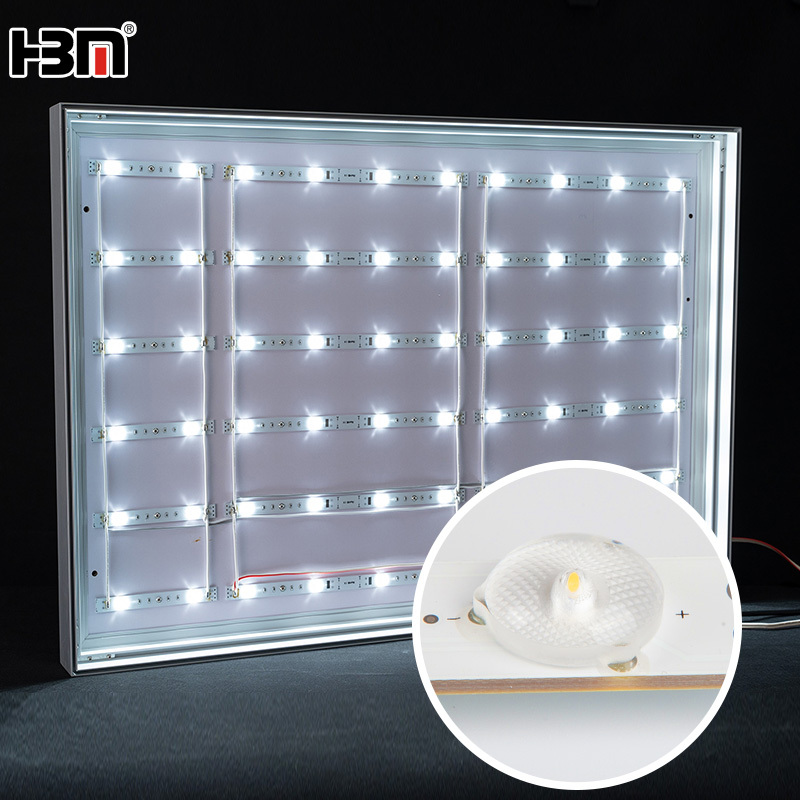

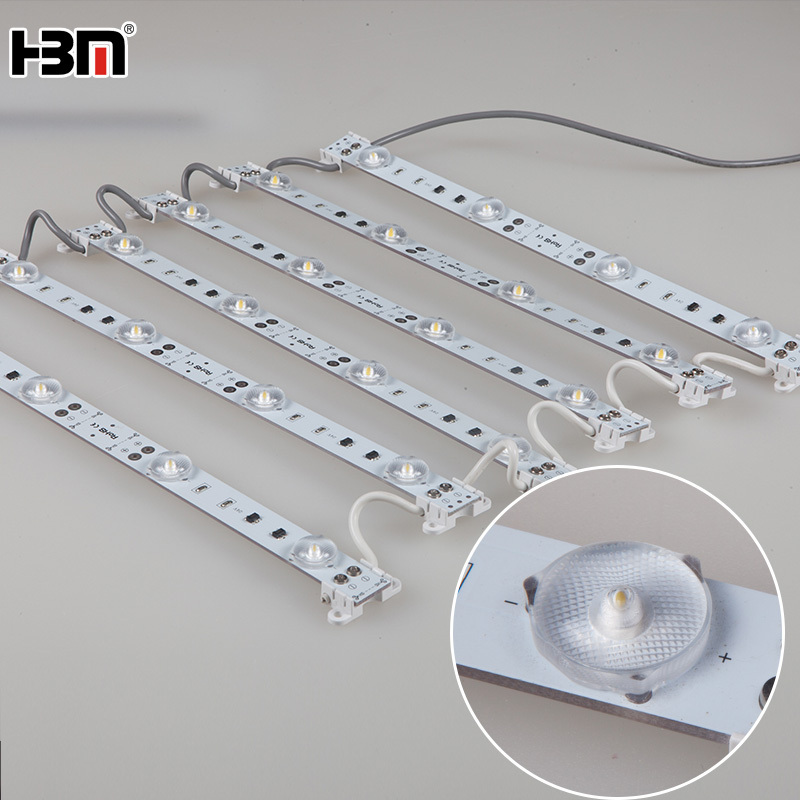

This LED backlight strip uses SMD3030 LEDs paired with Epistar chips, delivering consistent color temperature and stable light output. Designed with an integrated lens, it provides a 170° beam angle, ensuring wide and even light coverage across fabric surfaces in slim frameless light boxes. The white light emitted falls within a 6000–7000K range, offering a clean, bright tone suitable for indoor display lighting. With a CRI >80, it effectively restores the natural appearance of illuminated visuals without harsh spots or glare, making it suitable for applications requiring uniformity and visual clarity.
Multiple length configurations for flexible light box integration
The strip is available in various lengths, including 58 cm (8 LEDs), 50 cm (6 LEDs), 44 cm (6 LEDs), 29 cm (4 LEDs), and 14.5 cm (2 LEDs), allowing custom arrangements for net, matrix, curtain, or lattice backlight structures. It operates at DC12V, with a power consumption of 6W per meter. The substrate material is MDF, and the product operates reliably within a temperature range of –40°C to 60°C. With an IP34 protection rating, it is suitable for indoor environments where minor dust or moisture exposure may occur. The rated lifespan is 50,000 to 70,000 hours, supporting long-term installations without frequent replacements.
Certified product with OEM/ODM support and secure packaging
This backlight strip supports OEM and ODM customization, with a minimum order quantity of 1 meter. The product is packaged using cartons reinforced with wooden frames to protect the strips during transportation. It holds CE and RoHS certifications, confirming its compliance with relevant safety and environmental standards. Pricing is set at USD 3.8/meter (EXW), with free sample availability and weekly production capacity of up to 100,000 meters. Production relies on automated lines using Taiwan Epistar chips and high-speed SMT equipment, ensuring consistency and production efficiency.
Product Advantages
Delivers wide beam spread and fabric surface uniformity for display lighting
With an integrated lens and SMD3030 LED configuration, this backlight strip achieves a 170° beam angle, reducing shadow zones and uneven brightness in large fabric light boxes. The design ensures seamless illumination across the entire surface, essential for high-quality visual displays. This structure enhances the led Net/ curtain/Matrix/Lattice type backlight 3030 led strip light with lens performance in installations requiring broad coverage without hotspots or color distortion.
Reduces replacement frequency and operating cost through long-life design
The use of Epistar chips enables high luminous efficiency and stable color rendering, with a service life between 50,000–70,000 hours, helping to lower maintenance and replacement costs in commercial lighting projects. The CRI >80 rating ensures accurate color representation for graphics or signage. With a low voltage of 12V DC and power consumption of 6W/m, the product offers energy-efficient performance while maintaining stable light output in varying environmental temperatures from –40°C to 60°C.
Supports diverse configurations to simplify project deployment
Available in multiple lengths and LED densities, this strip light is suited for matrix, curtain, net, or lattice-type backlight structures, making it adaptable to a wide range of indoor signage and display applications. OEM/ODM options allow project-specific customization, and the 1-meter MOQ offers flexibility for small-scale or prototype deployments. The product's CE and RoHS compliance ensures export readiness, while the packaging with carton and wooden reinforcement provides safe transportation for bulk orders. These features make the 3030 led strip light with lens a practical choice for display system integrators.
About Us
Empowering Global Brands with Innovative Light Box and Display Solutions
XING HANG YUN, located in Guangfeng Building, Dashi Mengyong Village, Panyu District, Guangzhou City, the company was founded in 2008, with a registered capital of 1 million yuan, is a company in Guangzhou City, Guangdong Province to R & D design, production and marketing
A manufacturer of advertising equipment such as advertising light boxes, SEG aluminum profiles and billboards.
Core Manufacturing Capabilities and Quality Assurance
- Comprehensive Product Range: We offer a full spectrum of products, including fabric light boxes, aluminum profiles (ranging from 17mm to 160mm in depth), and various LED models.
- One-Stop Service: From profile design and mold production to the assembly of finished products, our integrated approach ensures time-saving, cost-effective, and efficient services.
- Certified Quality: Our factory has passed the ISO9001 quality management system certification. Additionally, some of our products have obtained international certifications such as CE, RoHS, and UL, ensuring compliance with global standards.
Production Strength
- Experienced Team: Our technical and sales teams boast over 10 years of experience in the industry, providing expert guidance and support throughout the project lifecycle.
- Global Reach: HBM's products are exported to 98 countries, serving a diverse clientele that includes renowned brands like China Mobile, Chimelong Group, Wanda Group, Midea, and international names such as Gucci and Dior.
Commitment to Sustainability
Eco-Friendly Practices: Since 2012, we have invested significantly in upgrading our production equipment to meet national environmental safety standards. Notably, we transitioned to natural gas combustion equipment, enhancing safety and reducing environmental impact.
Customer Collaboration Process
- Consultation: Understanding client needs and project requirements.
- Design & Development: Tailoring solutions from profile design to mold production.
- Production: Manufacturing high-quality products with precision.
- Quality Assurance: Rigorous testing to ensure product excellence.
- Delivery & Support: Efficient logistics and dedicated after-sales service.
Global Service Capability
With a robust export experience spanning over 10 years, XING HANG YUN adeptly handles various professional foreign trade affairs, ensuring timely and safe delivery of goods. Our mature after-sales service system guarantees customer satisfaction across different regions.
Partner with XING HANG YUN for reliable, high-quality, and innovative advertising display solutions that elevate your brand's visibility globally.
FAQ
Who are we?
XING HANG YUN is a specialized manufacturer of advertising light boxes and display products, serving clients in 98 countries with over a decade of industry experience.
How can we guarantee quality?
Our factory is ISO9001 certified, and our products have obtained international certifications like CE, RoHS, and UL. We implement strict quality control measures throughout the production process to ensure product excellence.
What can you buy from us?
We offer a wide range of products, including fabric light boxes, aluminum profiles (17mm to 160mm depth), various LED models, and customized advertising display solutions.
Why should you buy from us and not from other suppliers?
XING HANG YUN provides one-stop services from design to production, ensuring efficiency and cost-effectiveness. Our extensive experience, certified quality, and global client base, including brands like Gucci and Dior, attest to our reliability and excellence.
What services can we provide?
We offer comprehensive services, including product design, mold production, manufacturing, quality assurance, and after-sales support, tailored to meet the unique needs of each client.
Looking to enhance your display impact with a high-performance LED backlight solution for fabric lightboxes? Contact XING HANG YUN today to customize your display solution and make a lasting impression!
