Product description：
This anodized aluminum extrusion is new model, 80mm thickness frame for fabric light box. It is desiged with both backlit and edgelit LED source.

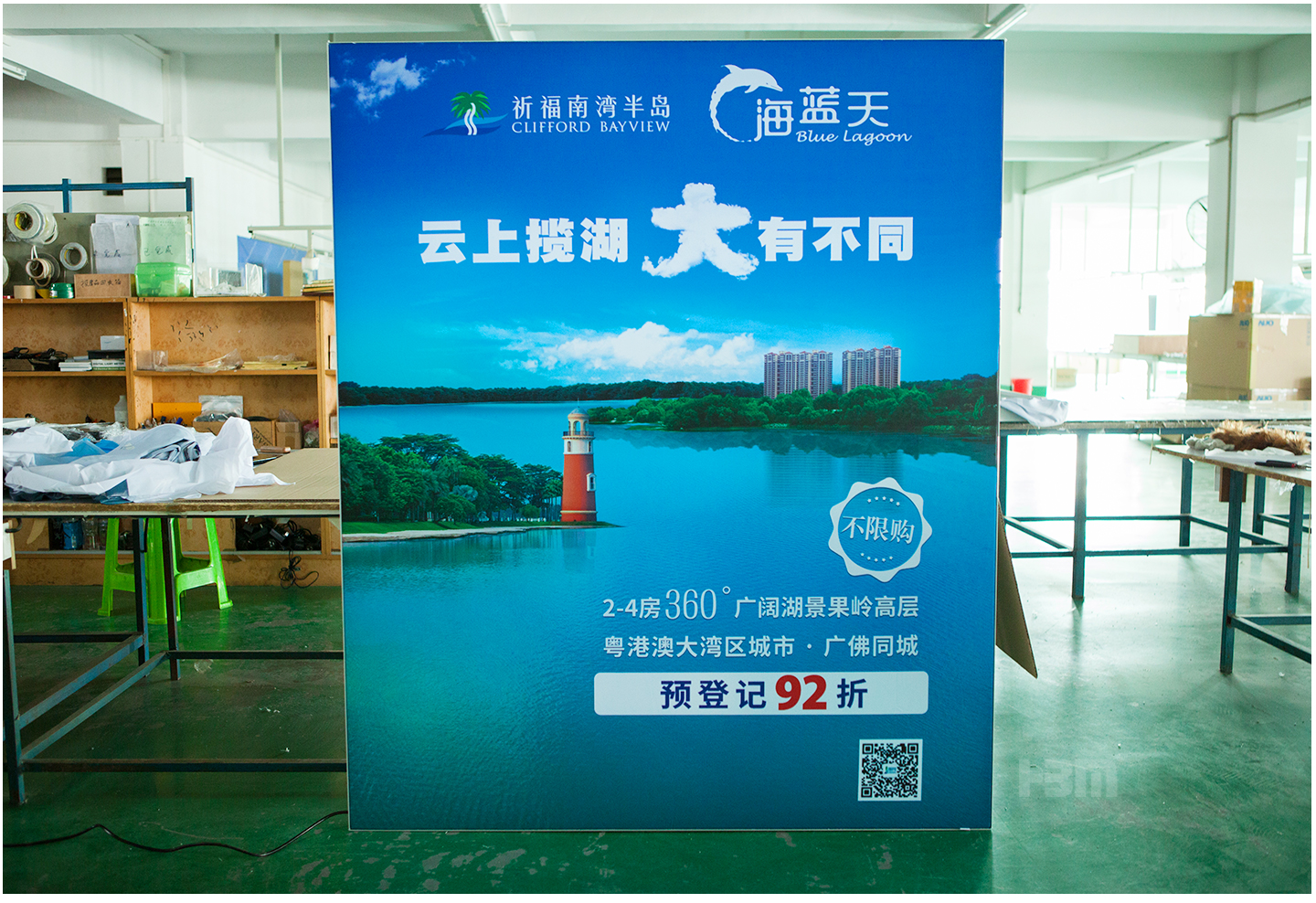

Wall mounted or free standing type to disply for shopping mall or exhibition backwall.Product Specification：
| Model |
HBMCB-80 |
| Thickness |
80mm |
| Length |
6meters (conventional) |
| Material |
6063 aluminum alloy |
| Function |
For advertising light box |
| Color |
Silver,customized colors available |
| Shape |
Strip |
| Type |
Single side |
| Surface Treatment |
Anodized(conventional), other crafts available. |
| OEM & ODM |
Both |
| Certification |
SGS |
| Packing |
Bulk package, special packing foam to protect the frames. |
| Free Sample |
Less than 10cm sample for free is available,but you will be responsible for the shipping charge. |

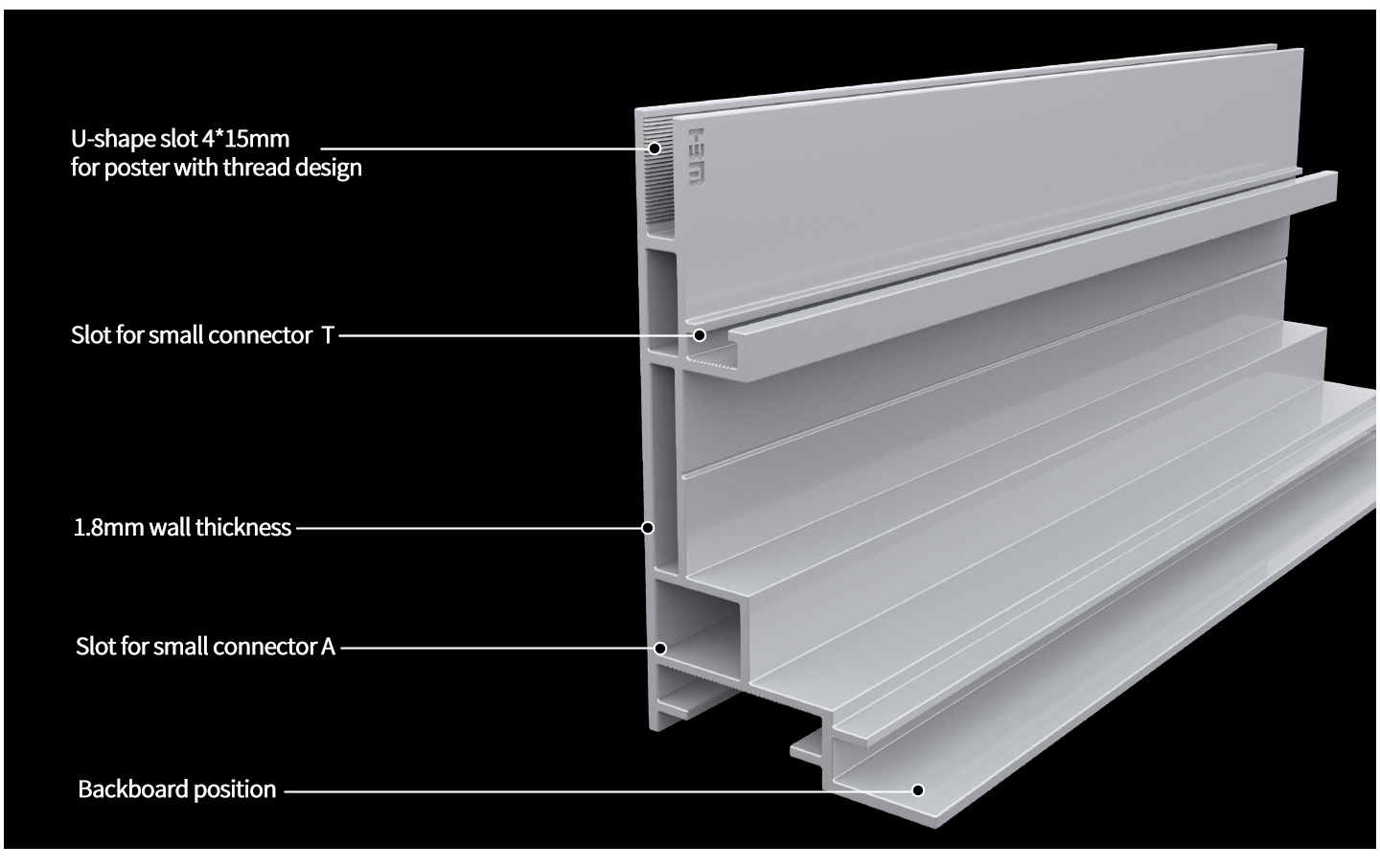

01. Unique design solid up to 1.8 mm wall thickness 02. 15mm U-Shape saw-toothed slot design

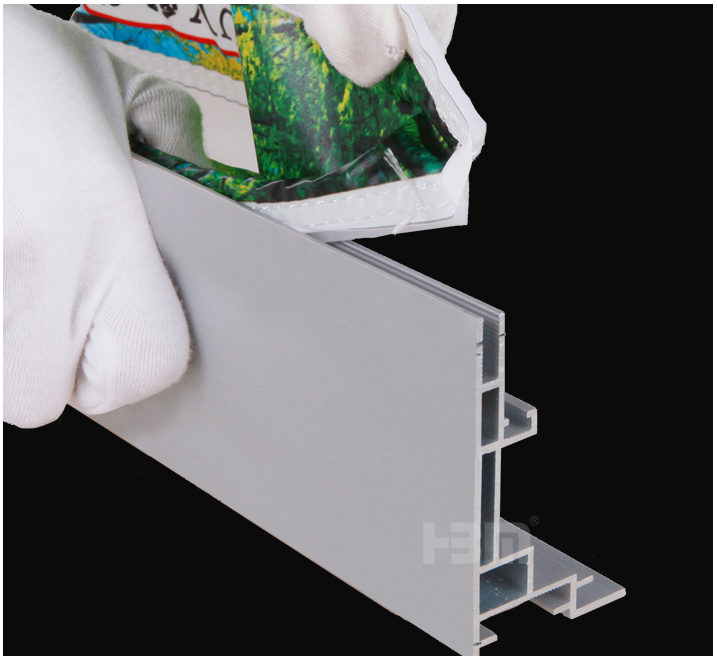

03. Easy to insert/ change poster with rubber strip
04. Different corner connetor design 05. Both backlit and edgelit LED source
Product accessories：

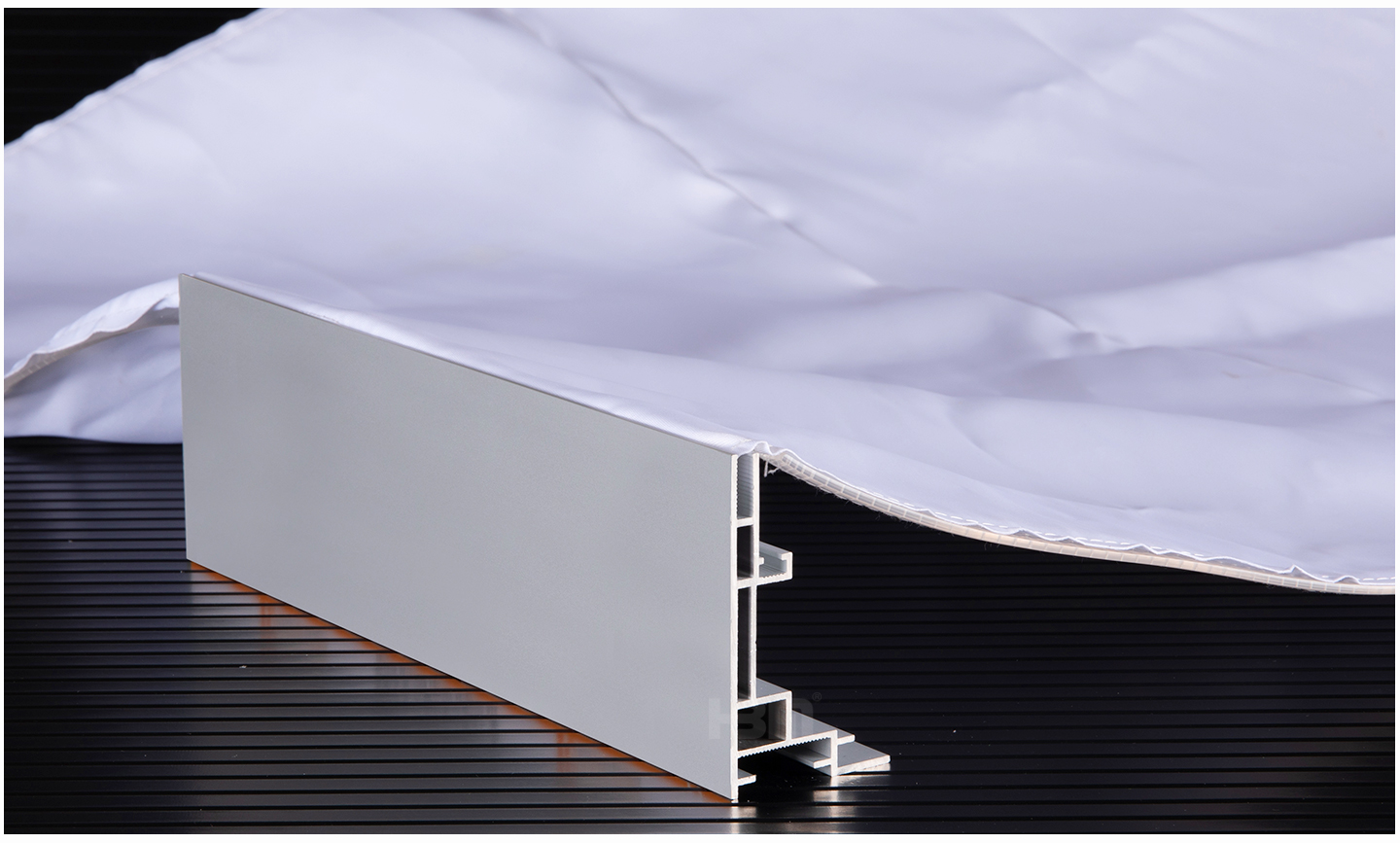

01.UV tension fabric printing poster with rubber strip02.4 big corner connectorB/Small corner connector A/Φ5 hexagonal screw spanner

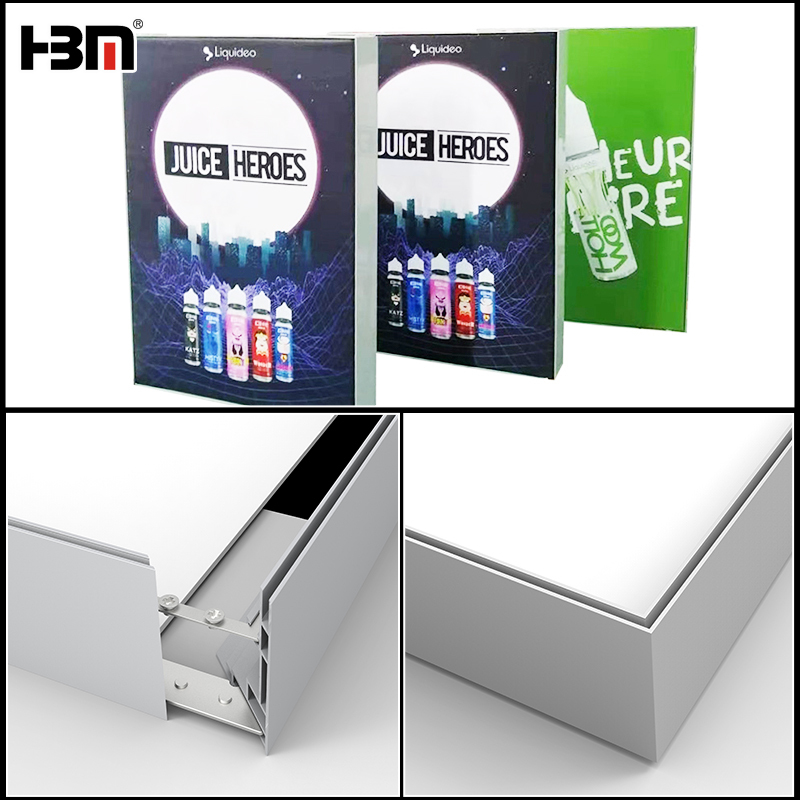

03.Corner connector location

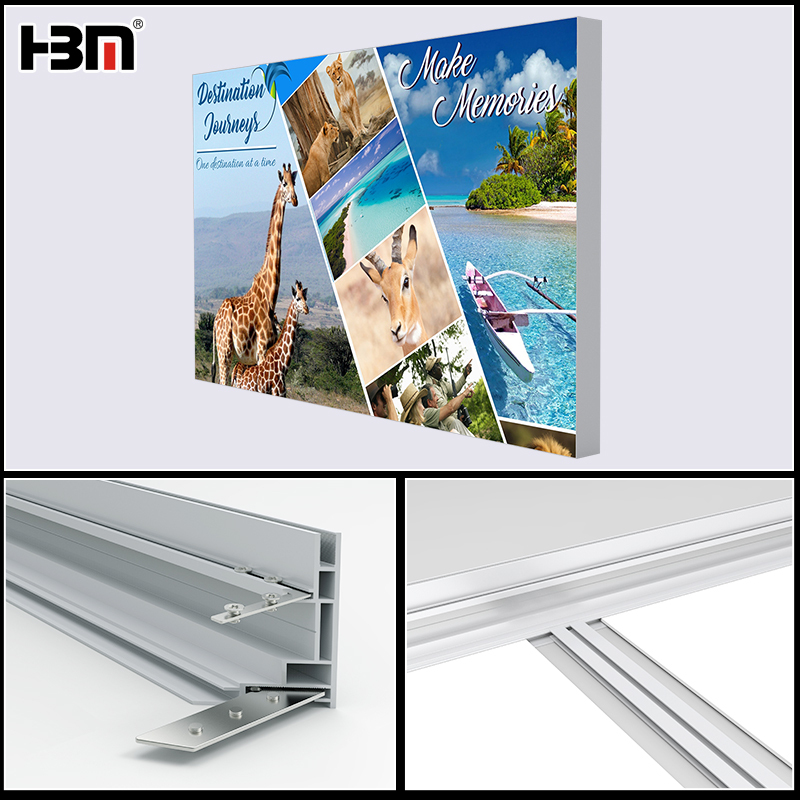

04.90° Aluminum frame seamless splicing

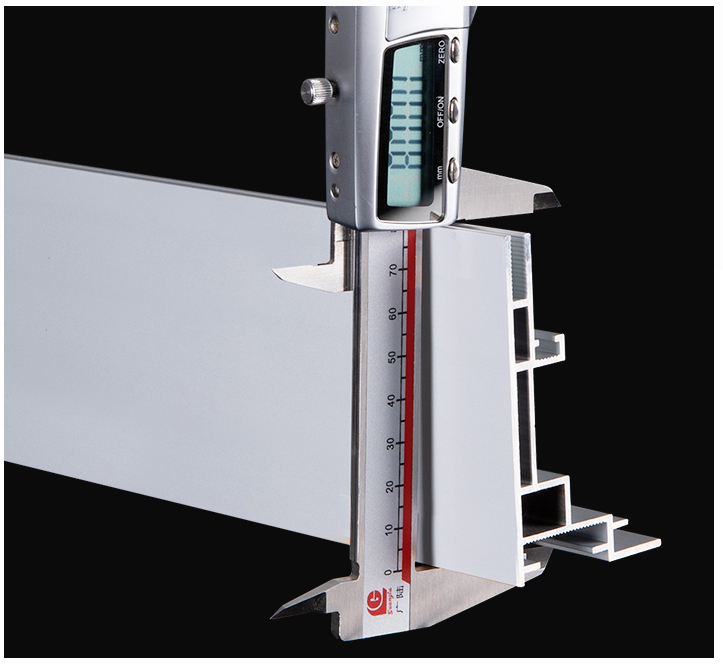

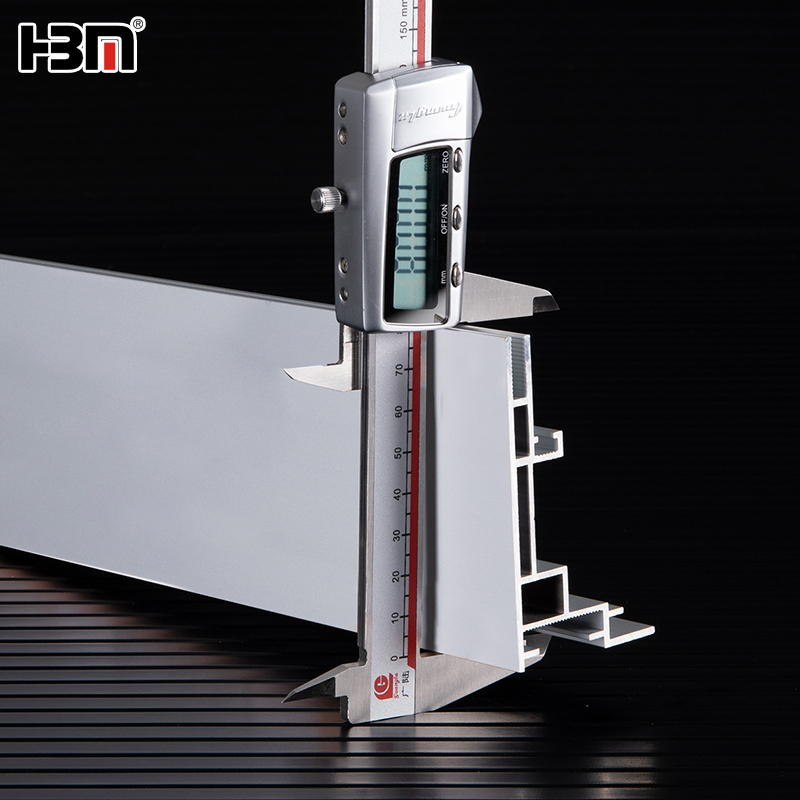

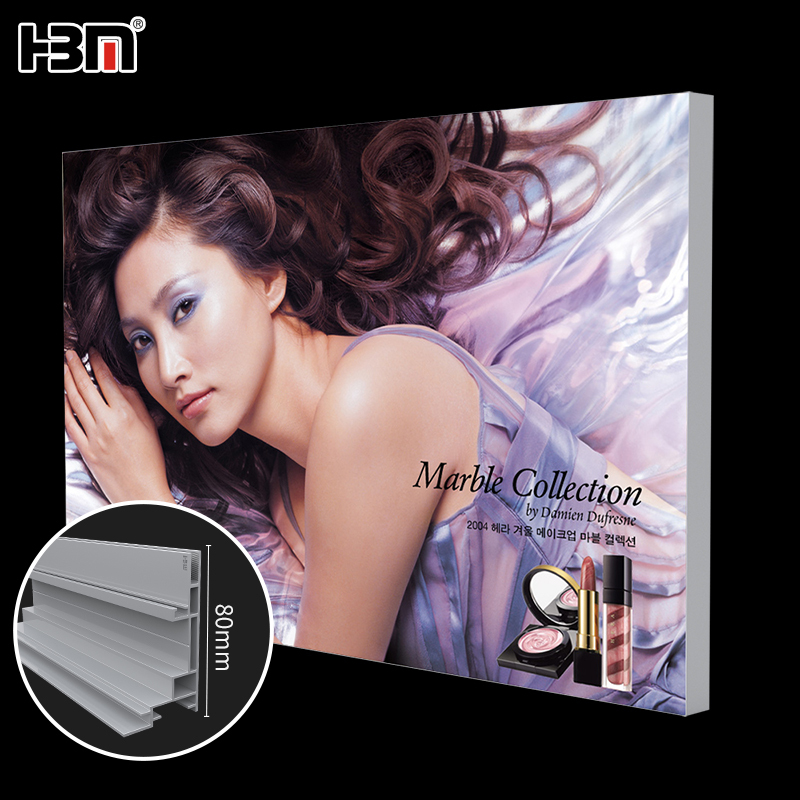

80mm aluminum material |

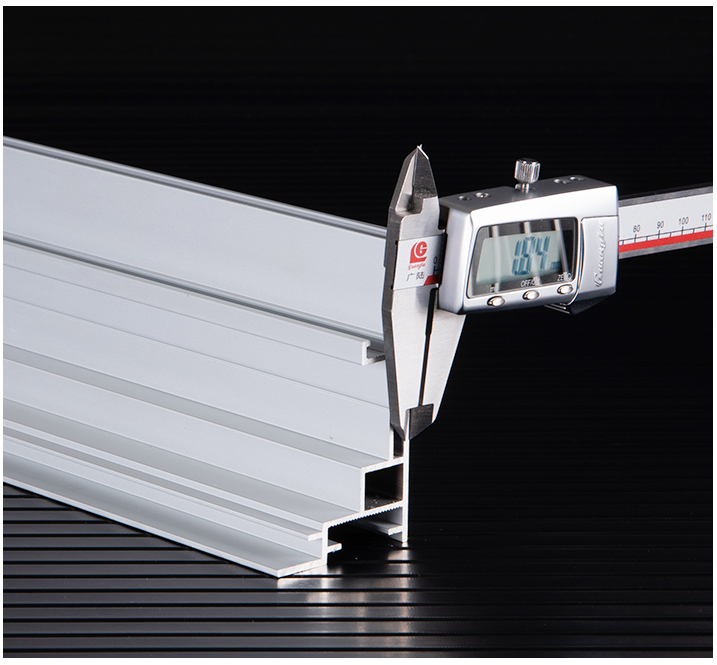

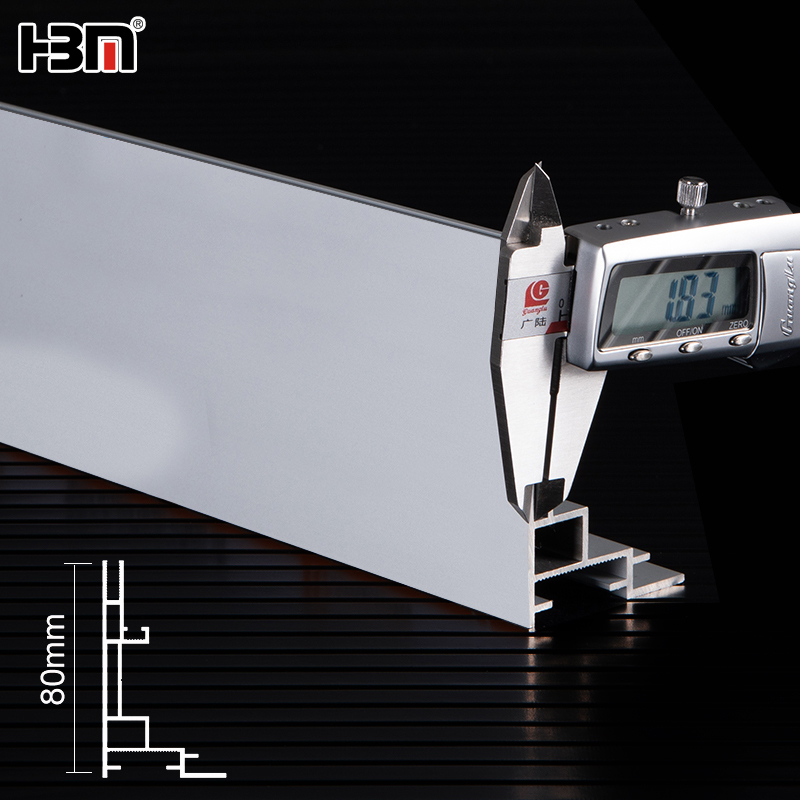

1.4 Wall thickness |

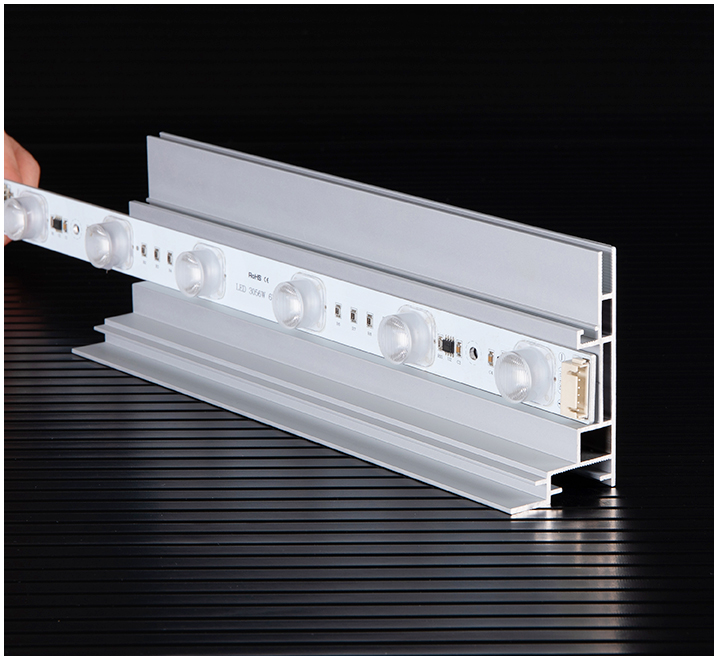

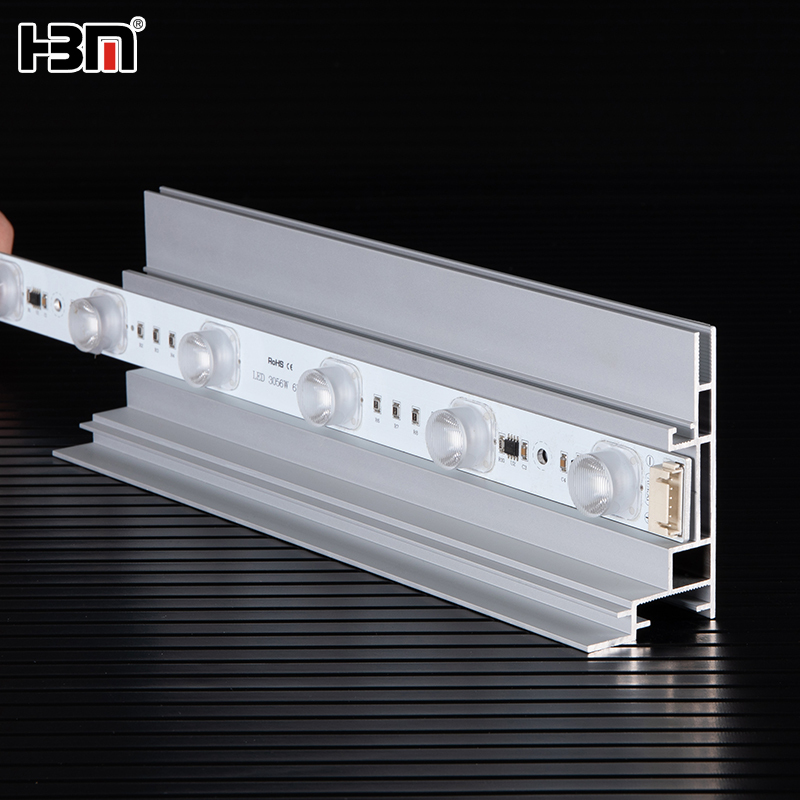

Side lighting illustration |
Cable installation |
An 80 mm deep aluminum frame designed for single-sided fabric displays
The HBMCB-80 profile uses 6063 aluminum alloy, with a thickness of 80 mm and wall thickness about 1.8–2.0 mm. The structure ensures stability for medium and large indoor fabric light boxes. The conventional frame finish is anodized silver, while custom colors or finishes are available. Each strip measures 6 meters in length and can be cut to project needs. This design supports wall mounting or free-standing installation, offering flexibility for advertising displays and exhibition backwalls.
Lighting and slot system support both backlit and edge-lit configurations
The profile is compatible with backlit LED strips or edge-lit LED strips, depending on desired illumination. A 15 mm U-shaped saw-toothed slot with rubber strip makes inserting and fixing fabric posters straightforward. To maintain precise angles, the frame is equipped with 90-degree connectors and options for big or small corner connectors. This ensures that frames can be spliced neatly, creating a seamless finish that enhances the visual quality of the poster.
Certified material quality and careful packaging ensure project reliability
The product holds SGS certification, affirming that the aluminum alloy and processing meet relevant quality standards. Each profile is packaged in bulk, with protective foam applied around the frame to prevent scratches or damage during transportation. Free sample lengths under 10 cm are available, though buyers cover shipping. The OEM and ODM options allow project customization in size, color, and surface finish, enabling the frame to meet diverse requirements for indoor promotional and branding environments.
Product Advantages
Achieve uniform illumination and strong visual presence with flexible LED options
This single side 80mm anodized aluminum extrusion fabric picture profile frame with edgelit LED is designed to work with either backlit or edge-lit LED sources, adapting to different lighting preferences. The 80 mm depth provides adequate space for lighting integration, reducing shadows and hotspots while ensuring fabric graphics appear evenly illuminated across the full surface. This balance of slim form and effective lighting helps achieve clarity and vividness in promotional messages, making it a reliable choice for shops, malls, and exhibition advertising displays.
Simplify updates and reduce handling risks through a practical poster-changing design
The U-shaped slot system combined with rubber strips allows users to replace fabric posters quickly without needing to dismantle or reposition the aluminum frame. Corner connectors keep edges aligned, producing seamless corners that preserve a polished appearance even after multiple changes. With reinforced stability and ease of handling, frequent updates can be carried out with minimal risk of frame damage. This is especially helpful for businesses that refresh visuals regularly, such as retail stores, seasonal campaigns, or event organizers seeking efficiency in display management.
Rely on durable aluminum structure with customizable finishes for long-term use
Constructed from 6063 aluminum alloy with a wall thickness close to 2 mm, the profile ensures long-term stability and resists bending or deformation even during repeated setup and dismantling. The anodized surface improves resistance to scratches and wear while maintaining a consistent appearance. For branding or interior design alignment, customized colors and finishes are available. With SGS certification and protective foam packaging, the product ensures reliable quality and safe delivery. Combined with OEM/ODM services, this frame adapts to different project requirements and provides dependable performance for professional indoor advertising and branding environments.
About Us
Empowering Global Brands with Innovative Light Box and Display Solutions
XING HANG YUN, located in Guangfeng Building, Dashi Mengyong Village, Panyu District, Guangzhou City, the company was founded in 2008, with a registered capital of 1 million yuan, is a company in Guangzhou City, Guangdong Province to R & D design, production and marketing
A manufacturer of advertising equipment such as advertising light boxes, SEG aluminum profiles and billboards.
Core Manufacturing Capabilities and Quality Assurance
- Comprehensive Product Range: We offer a full spectrum of products, including fabric light boxes, aluminum profiles (ranging from 17mm to 160mm in depth), and various LED models.
- One-Stop Service: From profile design and mold production to the assembly of finished products, our integrated approach ensures time-saving, cost-effective, and efficient services.
- Certified Quality: Our factory has passed the ISO9001 quality management system certification. Additionally, some of our products have obtained international certifications such as CE, RoHS, and UL, ensuring compliance with global standards.
Production Strength
- Experienced Team: Our technical and sales teams boast over 10 years of experience in the industry, providing expert guidance and support throughout the project lifecycle.
- Global Reach: HBM's products are exported to 98 countries, serving a diverse clientele that includes renowned brands like China Mobile, Chimelong Group, Wanda Group, Midea, and international names such as Gucci and Dior.
Commitment to Sustainability
Eco-Friendly Practices: Since 2012, we have invested significantly in upgrading our production equipment to meet national environmental safety standards. Notably, we transitioned to natural gas combustion equipment, enhancing safety and reducing environmental impact.
Customer Collaboration Process
- Consultation: Understanding client needs and project requirements.
- Design & Development: Tailoring solutions from profile design to mold production.
- Production: Manufacturing high-quality products with precision.
- Quality Assurance: Rigorous testing to ensure product excellence.
- Delivery & Support: Efficient logistics and dedicated after-sales service.
Global Service Capability
With a robust export experience spanning over 10 years, XING HANG YUN adeptly handles various professional foreign trade affairs, ensuring timely and safe delivery of goods. Our mature after-sales service system guarantees customer satisfaction across different regions.
Partner with XING HANG YUN for reliable, high-quality, and innovative advertising display solutions that elevate your brand's visibility globally.
FAQ
Who are we?
XING HANG YUN is a specialized manufacturer of advertising light boxes and display products, serving clients in 98 countries with over a decade of industry experience.
How can we guarantee quality?
Our factory is ISO9001 certified, and our products have obtained international certifications like CE, RoHS, and UL. We implement strict quality control measures throughout the production process to ensure product excellence.
What can you buy from us?
We offer a wide range of products, including fabric light boxes, aluminum profiles (17mm to 160mm depth), various LED models, and customized advertising display solutions.
Why should you buy from us and not from other suppliers?
XING HANG YUN provides one-stop services from design to production, ensuring efficiency and cost-effectiveness. Our extensive experience, certified quality, and global client base, including brands like Gucci and Dior, attest to our reliability and excellence.
What services can we provide?
We offer comprehensive services, including product design, mold production, manufacturing, quality assurance, and after-sales support, tailored to meet the unique needs of each client.
Looking to enhance indoor displays with a single-side 80mm anodized aluminum frame designed for fabric light boxes? Contact XING HANG YUN today to customize your display solution and make a lasting impression!
