Single Side 30mm Aluminum Fabric Frame LED Slim Light Box With LGP
  • Single Side 30mm Aluminum Fabric Frame LED Slim Light Box With LGP
  • Single Side 30mm Aluminum Fabric Frame LED Slim Light Box With LGP
  • Single Side 30mm Aluminum Fabric Frame LED Slim Light Box With LGP

Single Side 30mm Aluminum Fabric Frame LED Slim Light Box With LGP

Item No.: HBMC-30 light box
30mm ultra-thin Aluminum Fabric Frame LED Slim Light Box With LGP is cost-effective for indoor advertisement light box, this special design aluminum frame slim light box always use light guide panel for lighting,but led rigid strips can also be easy to in
INQUIRY

Single Side 30mm Aluminum Fabric Frame LED Slim Light Box With LGP
30mm ultra-thin fabric frame slim light box is cost-effective for indoor advertisement light box, this special design aluminum frame always use light guide panel for lighting and led rigid strips can be easy to insert in the aluminum frame, which can save a lot of labour cost, 2mm thickness aluminum profile is strong enough to avoid distortion. This item fabric frame slim light box be widely used in clothing advertising / cosmetics advertising and luxury brand.

Specification
Model HBMC-W-30
Frame Thickness 30mm
Aluminum Profile Length 6meters (conventional)
Light source LGP/SMD3030 Diffused LED backlit light
Material 6063 aluminum alloy and fabric poster
Function For advertising and display
Frame Color Silver,customized colors available
Shape Square and special shape
Type Single sided
Hang type wall mounted or free standing
Poster print UV,3P fabric,textile,french fabric
Surface Treatment Anodized(conventional), other crafts available.
OEM & ODM Both
Certification CE UL RoHS SGS
Packing Foam plastic bag+carton+splint wooden frame
Free Sample Sample  is available,but you will be responsible for the shipping charge.

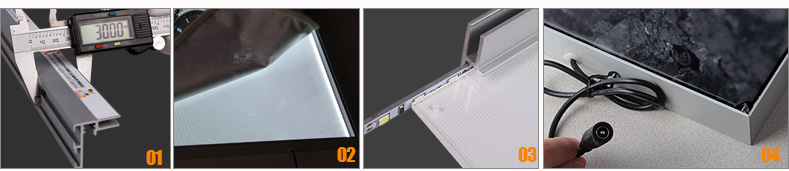

30mm frameless light box details:
01.Slim Design--Ultra Thin 30mm
02.Easy change picture--Embedded Poster Simply
03.Insert the LED strip and LGP into the side aluminum slot
04.Safety wiring--DC12V wire

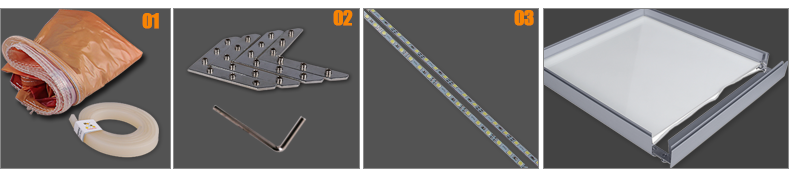

30mm frameless light boxaccessories:
01.UV printing poster and Rubber strip
02.4 big corner connector G and Φ5 hexagonal screw spanner
03.LED rigid strip


LED Light Source:
Item HBMC-W-30 slim fabric aluminum profile, the design of “double slots”is specialized for fabric light box with LGP backlit. It is easier installation , just insert the LED light strip& LGP into the correspondingslot.The LGP is used as the backlit source. with  2 sided or 4 sided LED rigid strip. The light will be more uniformity.
