double side led backlit square light box sign led aluminum extrusion profile 120mm frame

Name: double side led backlit square light box sign led aluminum extrusion profile 120mm frame
Brand: Guangzhou Huibaimei Information Technology Co.,Ltd.
Availability: InStock
Rating: 5 (1 reviews)

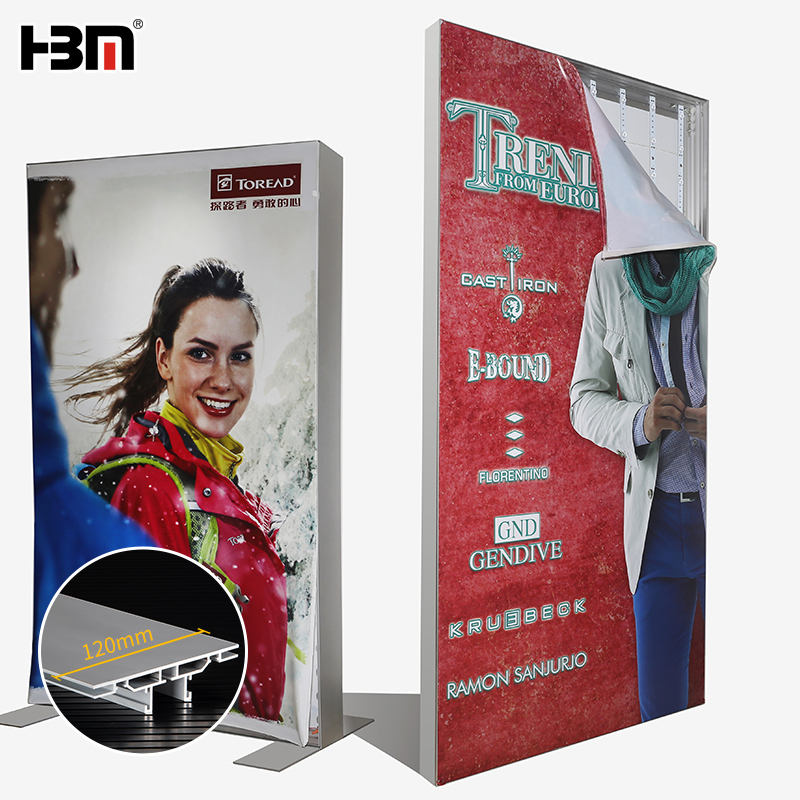

120mm thickness double sided aluminum profile ，double side light box is mostly used for exhibition display/ shopping mall advertising two side display. It can be not only free standing also hanging with system.

INQUIRY

PDF Format

Description

Installation Steps

case

OTHER ALUMINUM

Name:double side led backlit square light box sign led aluminum extrusion profile 120mm frame
Complete aluminum profile,thickness from 17mm to 160mm, single side and double side, frameless frame and snap frame .Our fabric light boxes have been sold to more than 98 countries.
Product specification：

Model	HBMCD--120

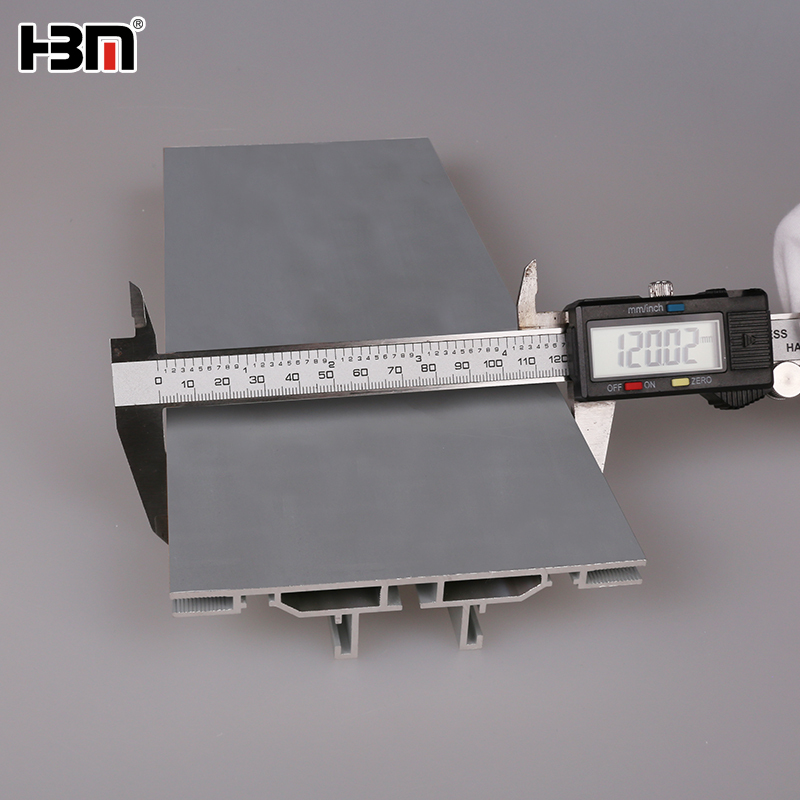

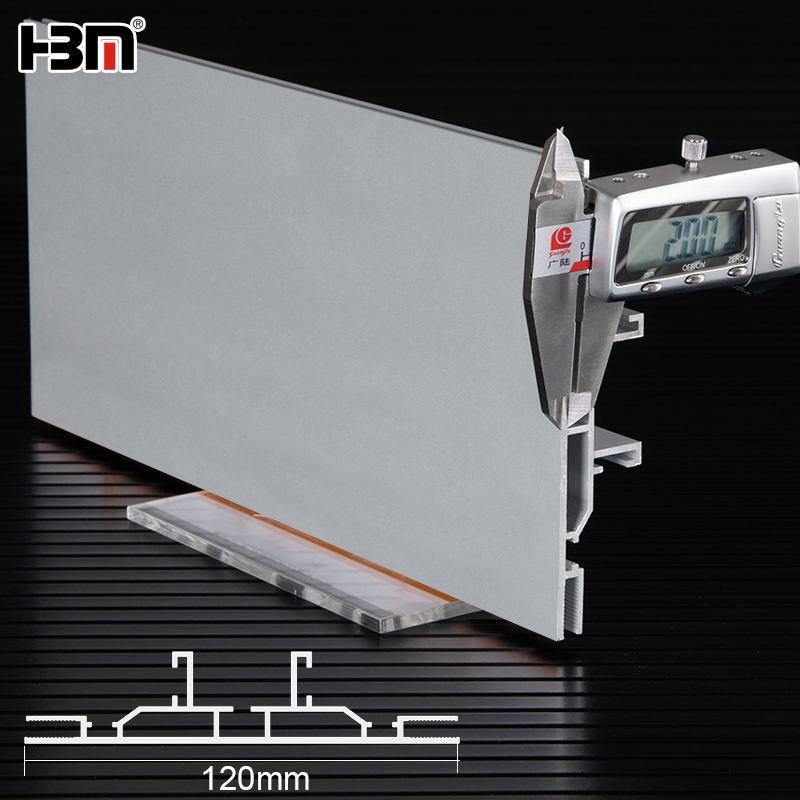

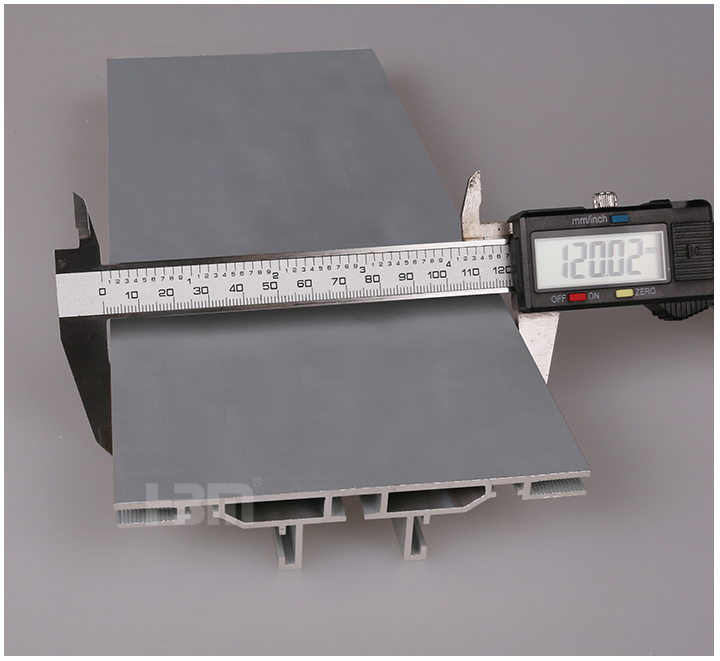

Thickness	120mm
Length	6meters (conventional)
Material	6063 aluminum alloy
Function	For fabric advertising light box
Color	Silver,customized colors available
Shape	Strip
Type	Double sided
Surface Treatment	Anodized(conventional), other crafts available.
OEM & ODM	Both
Certification	SGS
Packing	Bulk package, special packing foam to protect the frames.
Free Sample	Less than 10cm sample for free is available,but you will be responsible for the shipping charge.

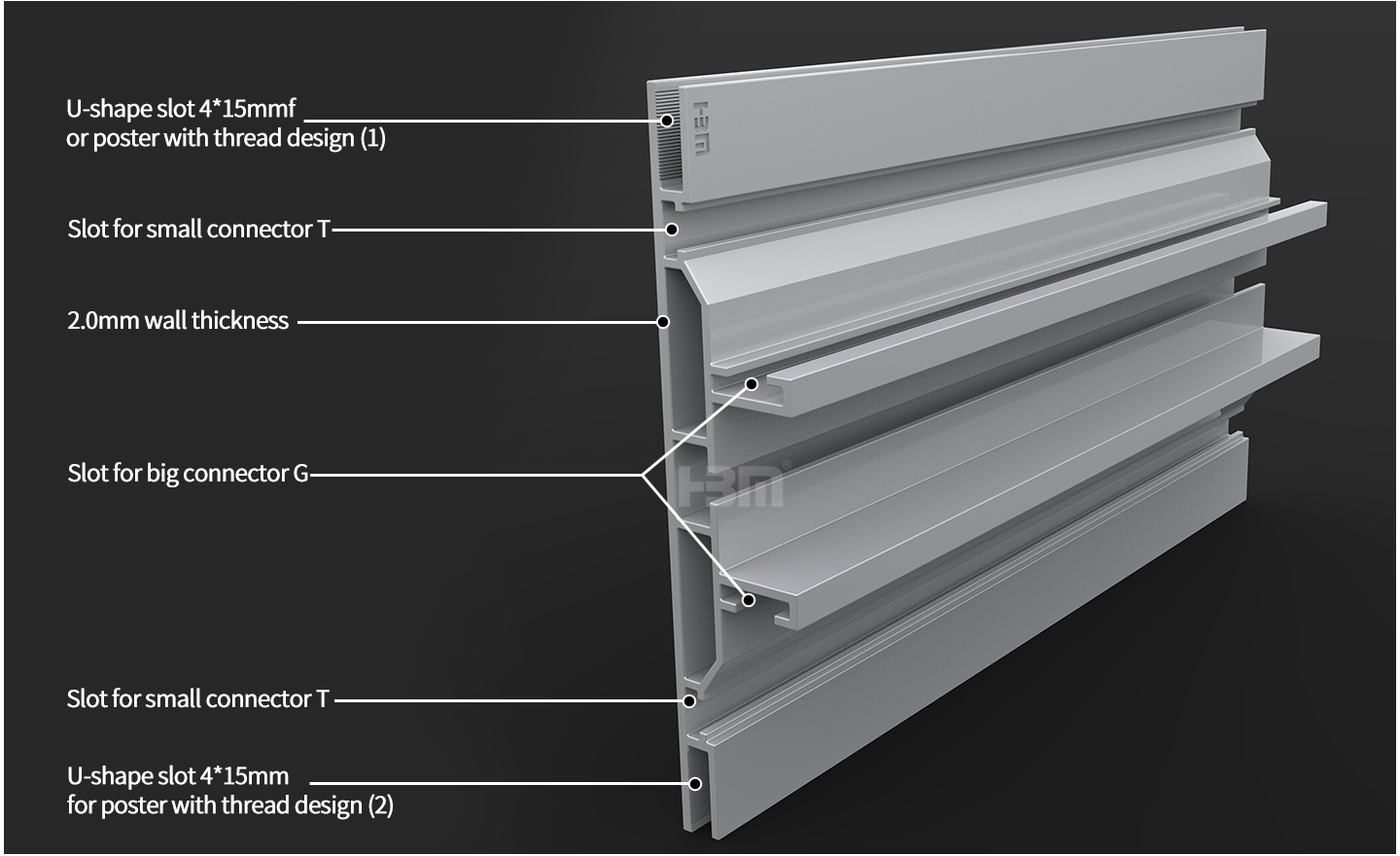

Product details:

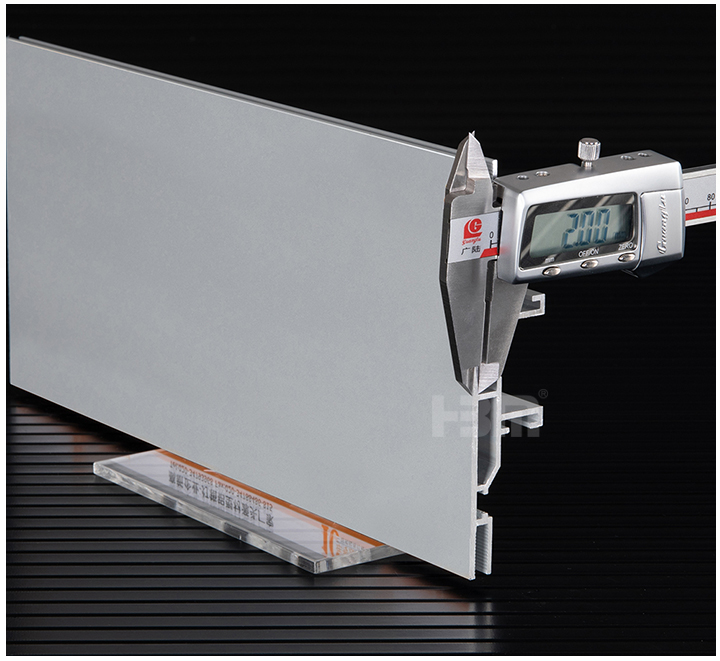

01.Unique design solid up to 2.0 mm wall thickness
02.15mm Special Serrated U-shape design

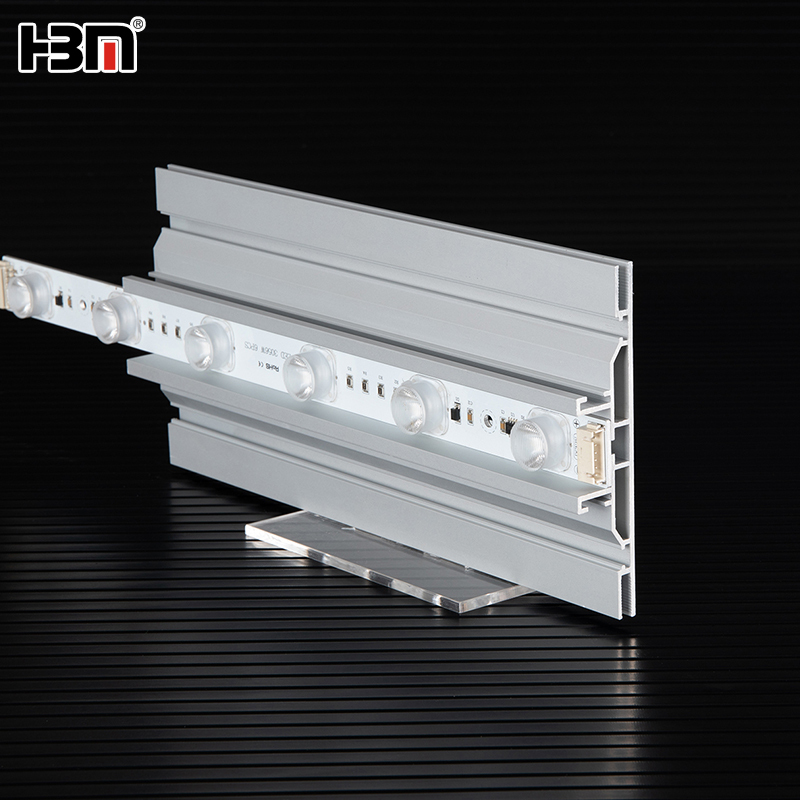

03.120mm double side aluminum profile use the high power edge-lit led .Ex: insert the led strip to the aluminum profile groove
04.Double side slot and double side insert poster

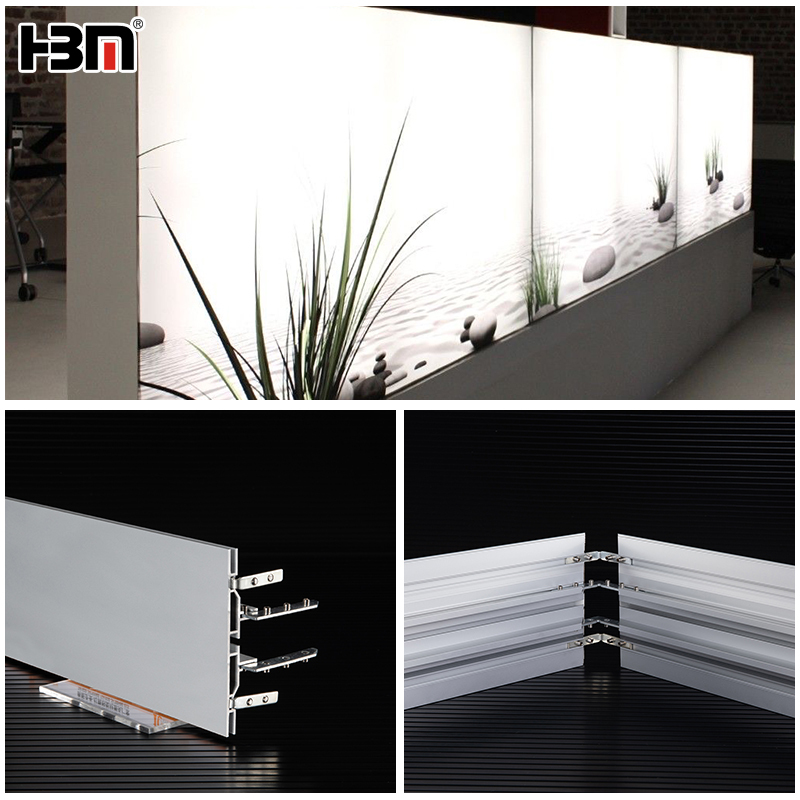

6063 aluminum double sided 120mm frameless fabric light box frame

6063 aluminum double sided 120mm frameless fabric light box frame

Product accessories:

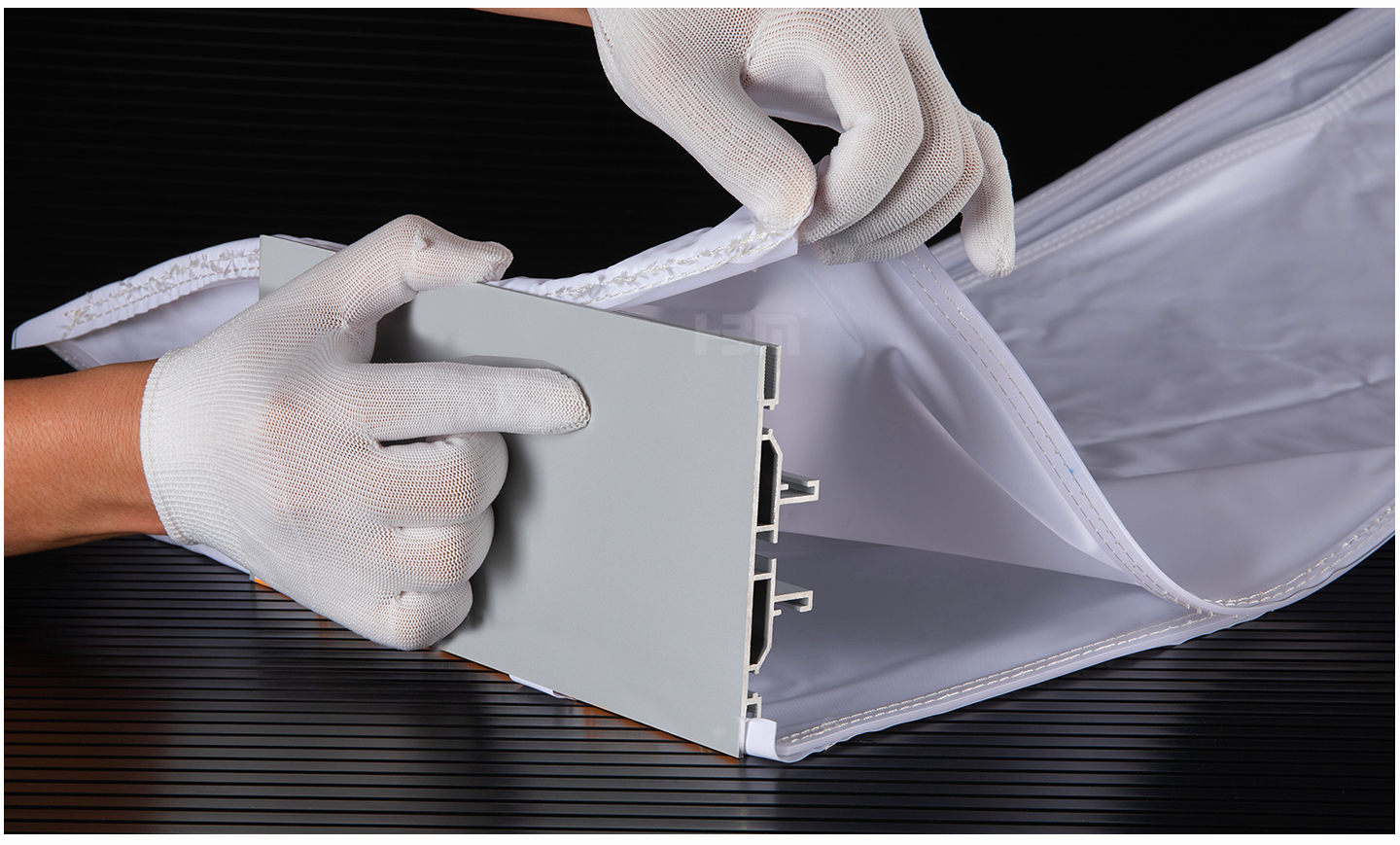

01.UV printing poster and theRubber strips

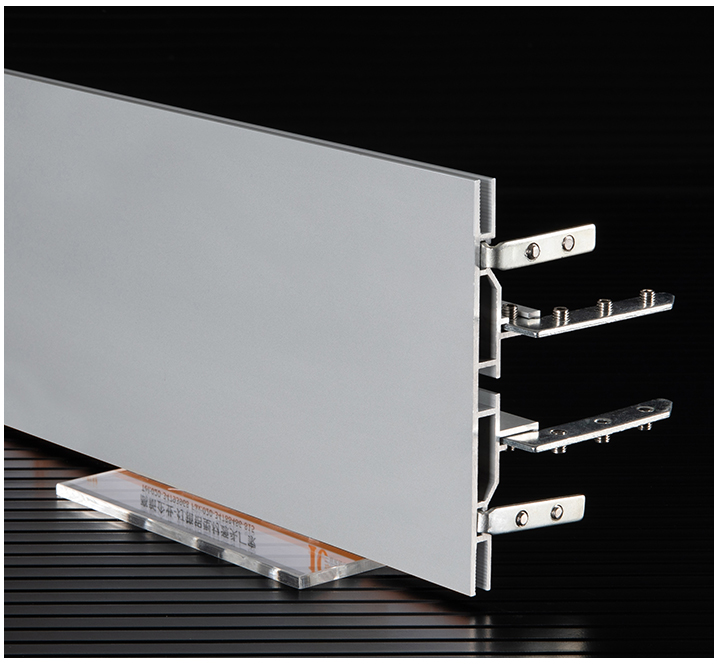

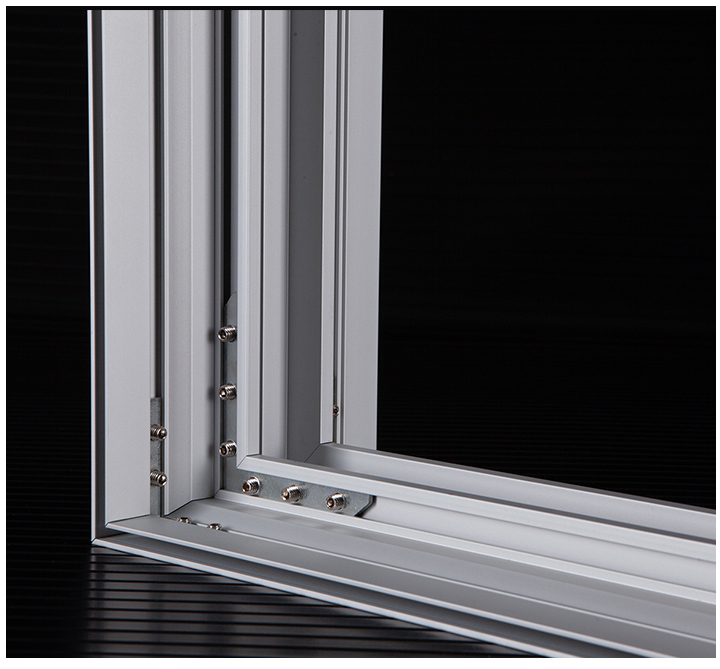

02:8 Big corner connector G and 8 Small corner connector A
03.120mm aluminum Reinforce accessory
04.90°seamless splicing
6063 aluminum double sided 120mm frameless fabric light box frame

Installation Steps:
1.Prepare 4 aluminum profiles and the following accessories
2.Drill on the aluminum profiles
3.Install the corner connectors
4.Splice the first angle--splice according to the corner connectors prepared
5.Splice the next angles
6.Put edge-lit LED in the slot of aluminum profile to fasten
7. Multiple LED strips splice correspondingly
8. Install built-in power supply
9. Connect wire--connect the power line and LED lamp line
10. Drill a hole: wire location
11. Install base --straight base or triangular base
12. Install poster--install posters on both sides, finished products

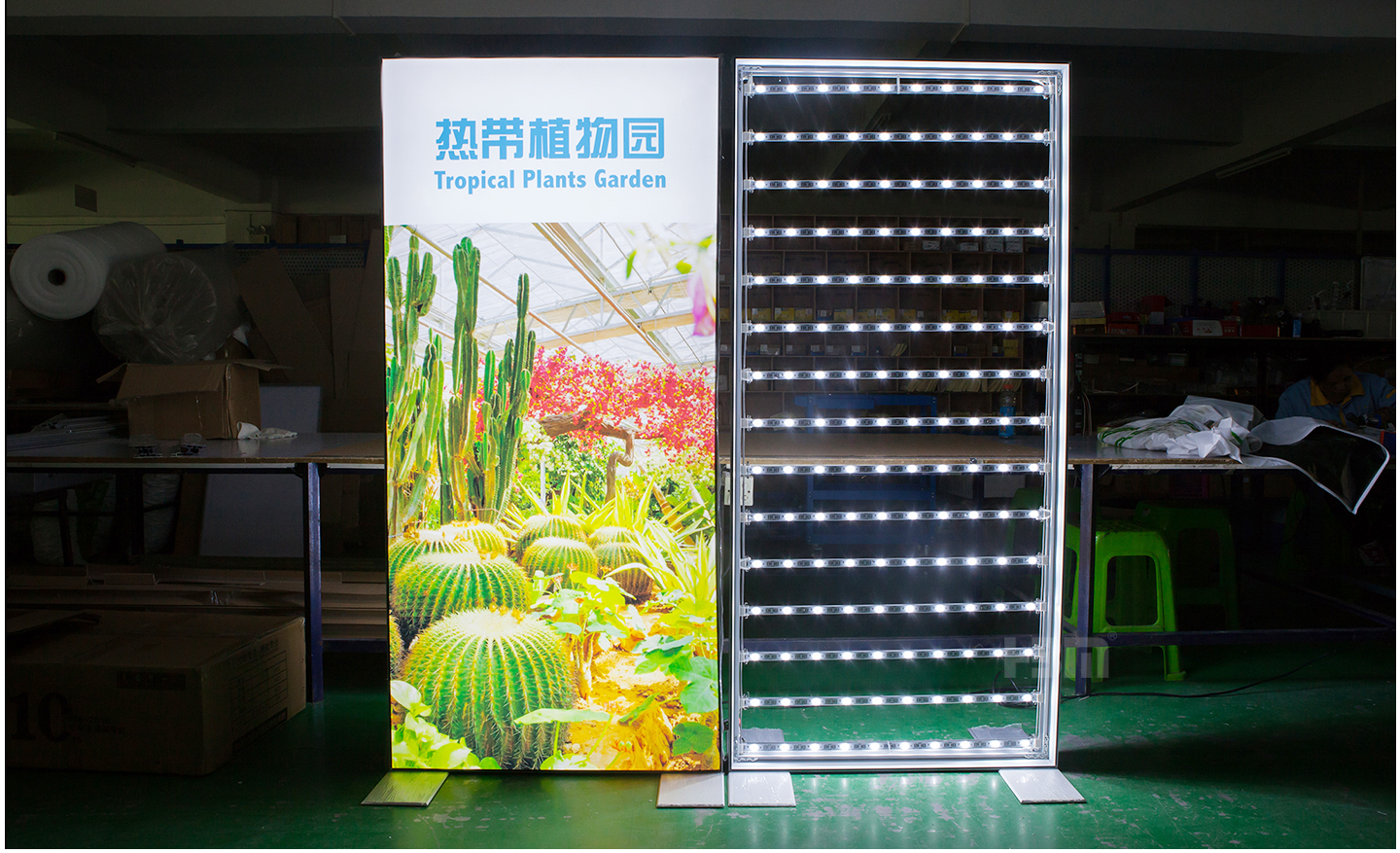

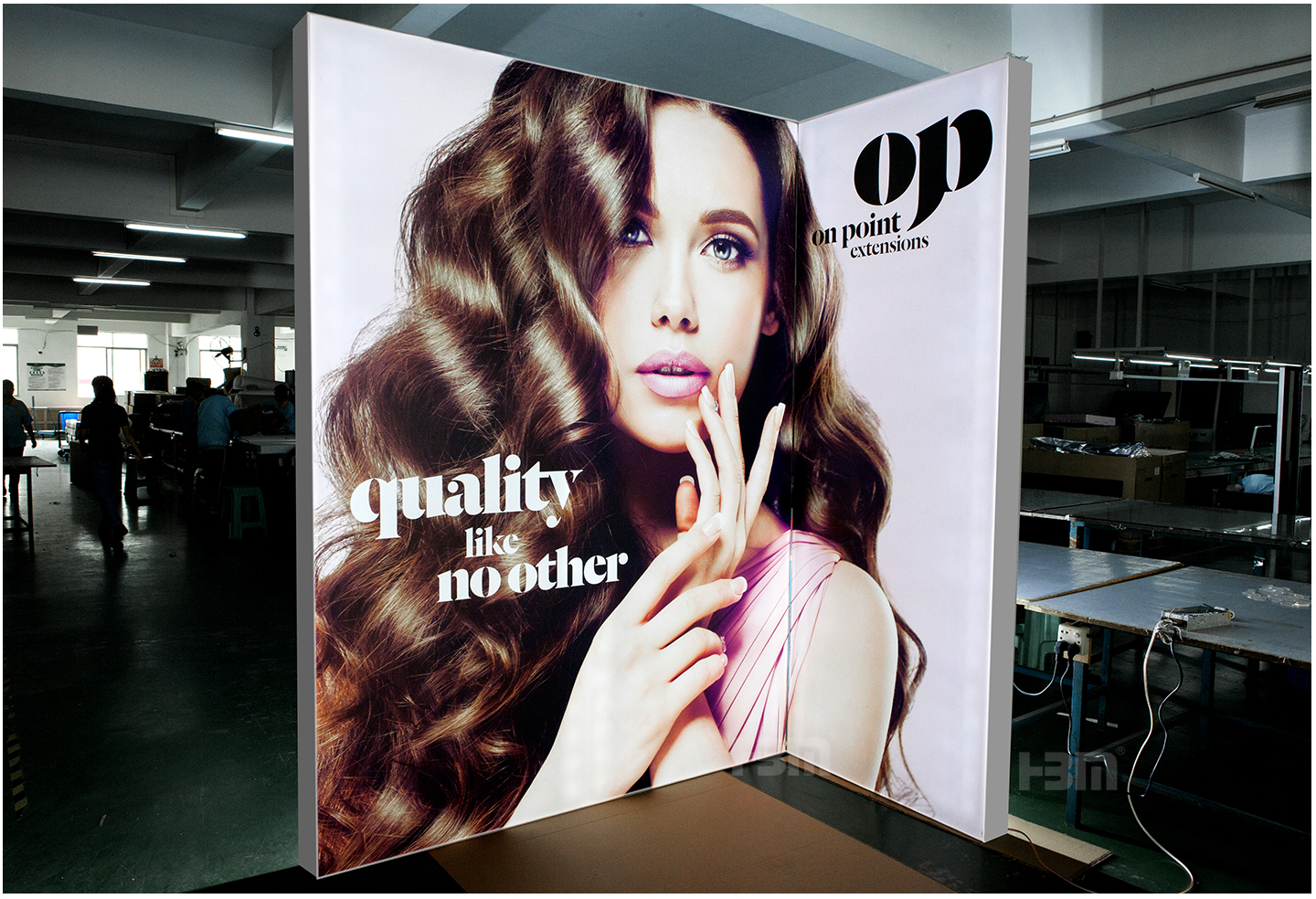

Double side aluminum profile application case：

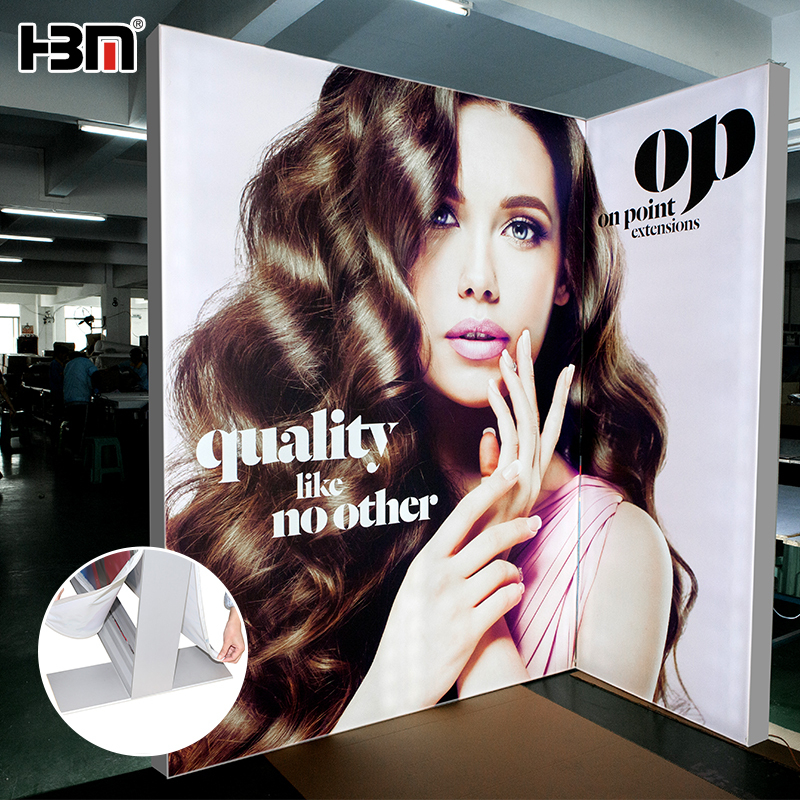

120mm double side aluminum profile be widely used for advertisement light box( mainly for beauty brand/ fashion brand/glasses brand),also for exhibition display and decoration display.

Other models for your reference:
HBM developed more than hundreds of models aluminum profile for fabric light box, varous frame thickness, styles and function for you to choose according to installation place and requirement , 2 ways display: single side and double sided.
