billboard advertising equipment outdoor led tension fabric advertising display stand

Name: billboard advertising equipment outdoor led tension fabric advertising display stand
Brand: Guangzhou Huibaimei Information Technology Co.,Ltd.
SKU: Outdoor light box
Availability: InStock
Rating: 5 (1 reviews)

Item No.: Outdoor light box

this is large project aluminum profile of outdoor light box,
the size is not limited.our design that use to big light box,
the lifetime is so long, most of the customer use it,
because it is popular with led display.

HBMAX-101-120 outdoor light boxDownload

INQUIRY

PDF Format

Description

Product advantage

Application case

Installation method

Billboard advertising equipment outdoor led tension fabric advertising display stand
this is large project aluminum profile of outdoor light box,the size is not limited.our design that use to big light box,the lifetime is so long, most of the customer use it, because it is popular with led display. Wall thickness is up to 3.0mm. Usually used for waterfproof outdoor light box. Large size light box use the profile.
outdoor light box—Product parameters


Name:Precision ultra strong aluminum profile for light box	Color:Anodised silver color
Model:HBMAX-H-101-120 light box	LED : 3030model ledl ight
Material:6063Aluminum	poster material：waterproof fabric poster
Surface cover: 101.5mm Hight: 120mm	wall mounted thickness:3.3mm
light box : waterproof led light , waterproof poster, backboard,aluminum profile and power supply
Outdoor light box

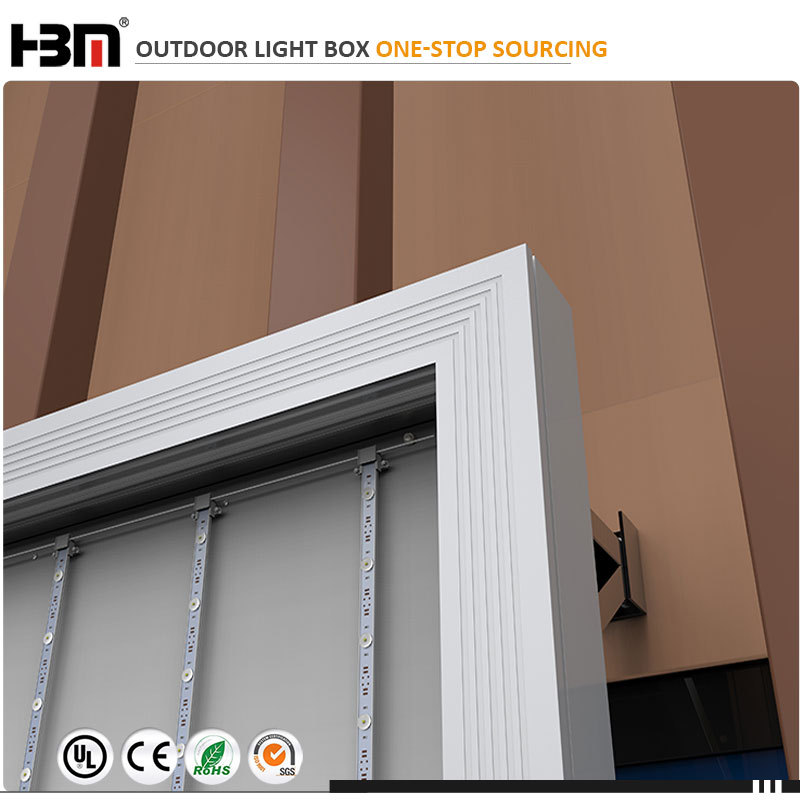

Aluminum profile frame

LED light source(waterproof)

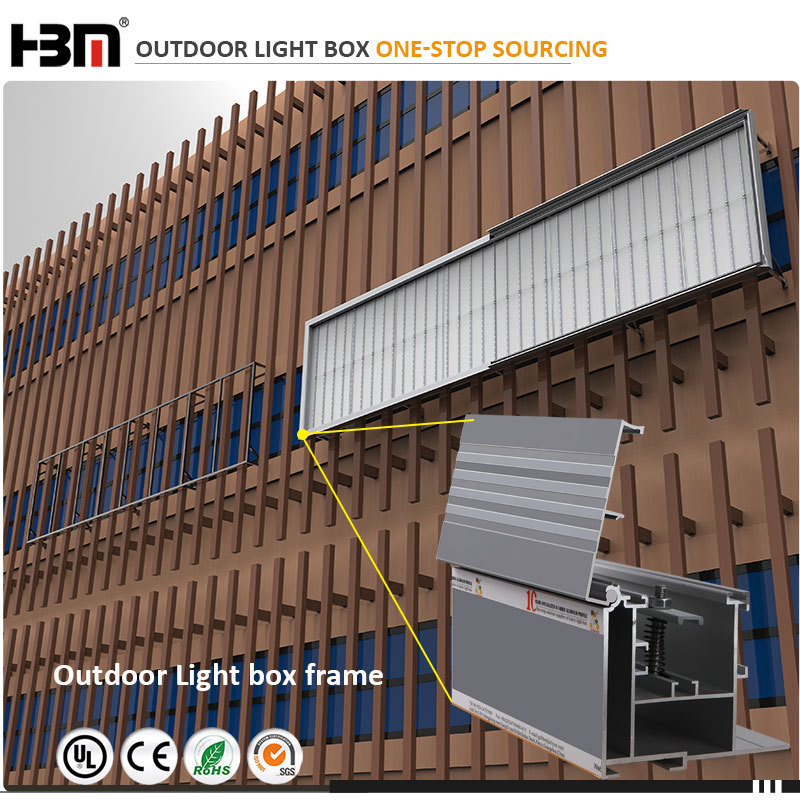

Installation outdoor light box

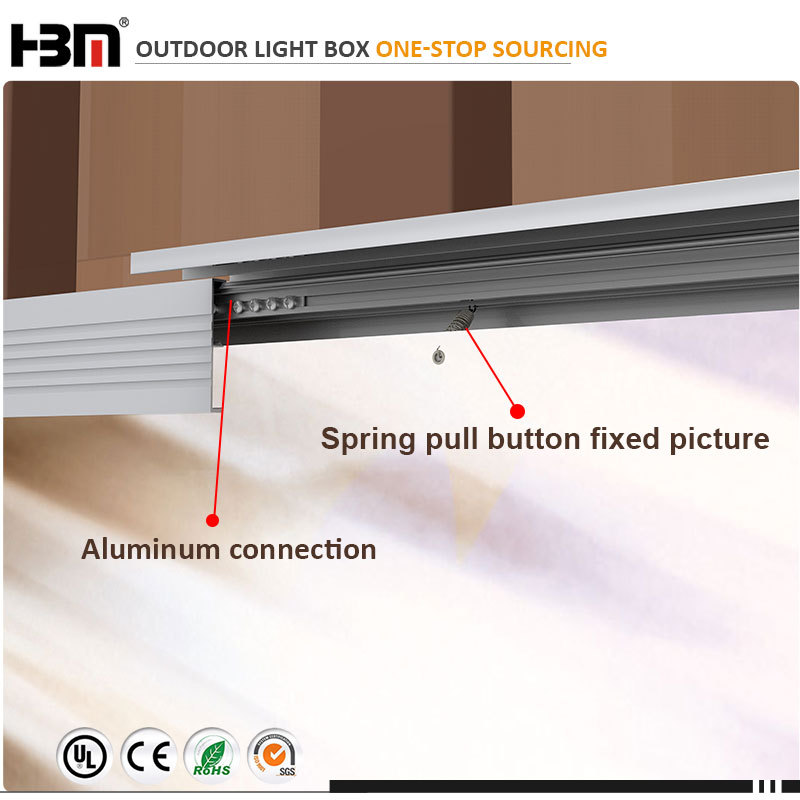

90 degrees seamless right angle splicing	Seamless aluminum connector	Spring pull button fixed picture

UPGRADE POSTER FIXING FOR PRECISION ULTRASTRONG ALUMINUM PROFILE
Offer three ways to fix ,you can choose the fixing way freely according to the environment Enhanced and upgrade! More stable！More safe！ More worry-saving!
1.Fix with spring&aluminum strip
2.Fix with slide fastener
3.Fix with aluminum tube

Sawtooth design of the corner connector slot make the screws more firmly fixed

waterproof led light sourse
01.waterproofled light with plastial bar
02.waterproof led light with aluminum bar

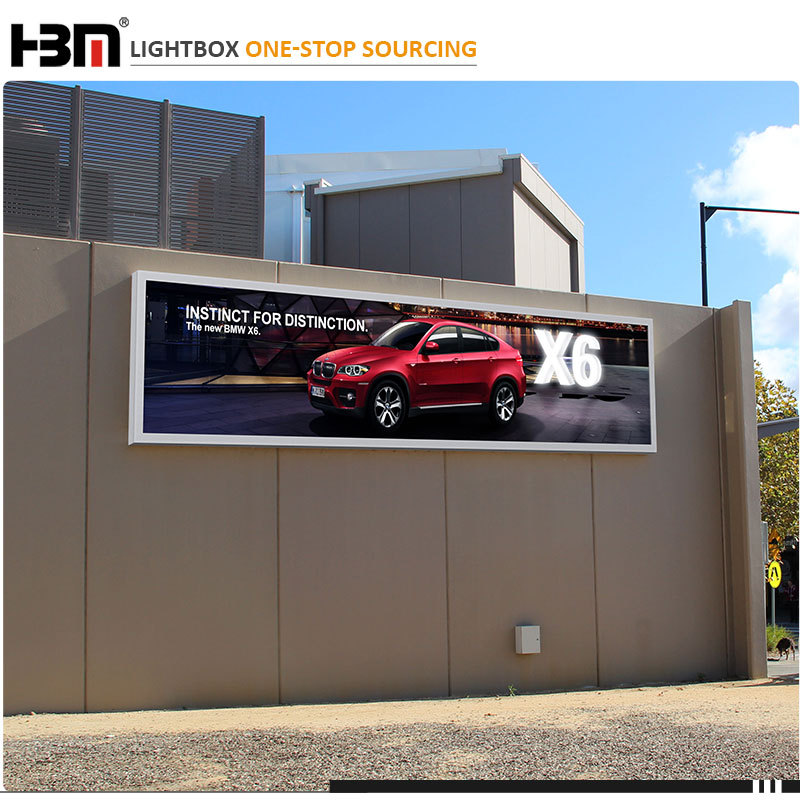

project light box——Application case
Reinforced and thickened fabric lightbox aluminum profile is a secure, stable and high cost-effective advertising material. It is specially used in large and exhibition frame work lightbox. it can strongly undertake the load-bearing with non-defrmation, especially when the large lightbox is more than 30㎡, its advantages are more obvious . It is widely used in airport, subway, high-speed railway, outdooroutdoor wall advertising display, etc.

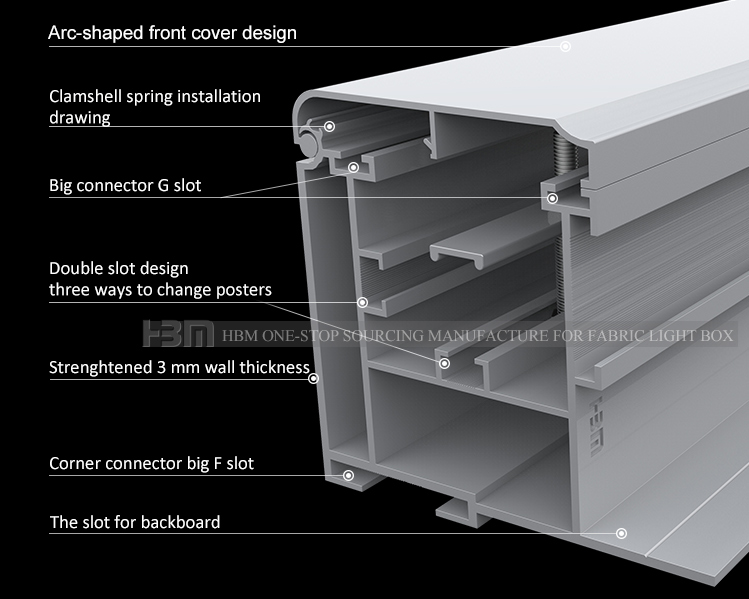

HBMA-X101-120 Snap aluminum profile structure：

Accessories for Snap aluminum fabric light box：

Snap aluminum fabric light box installation method：

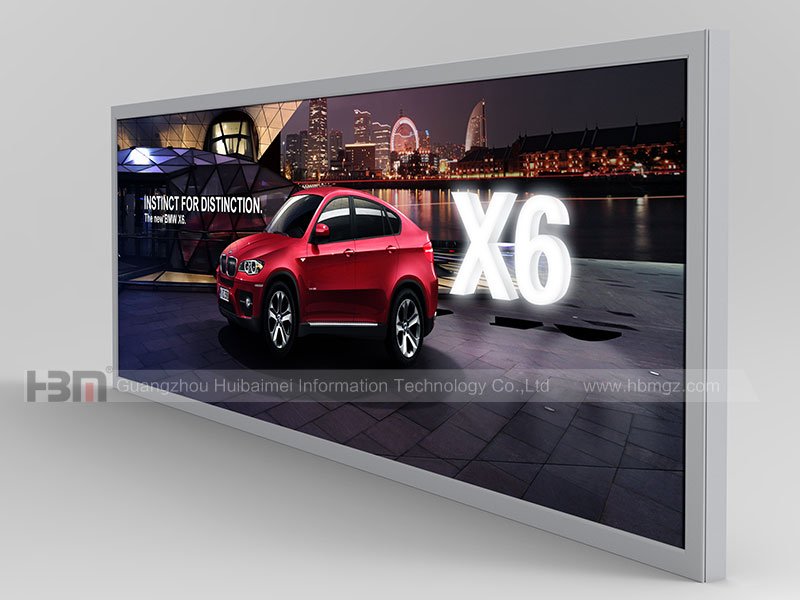

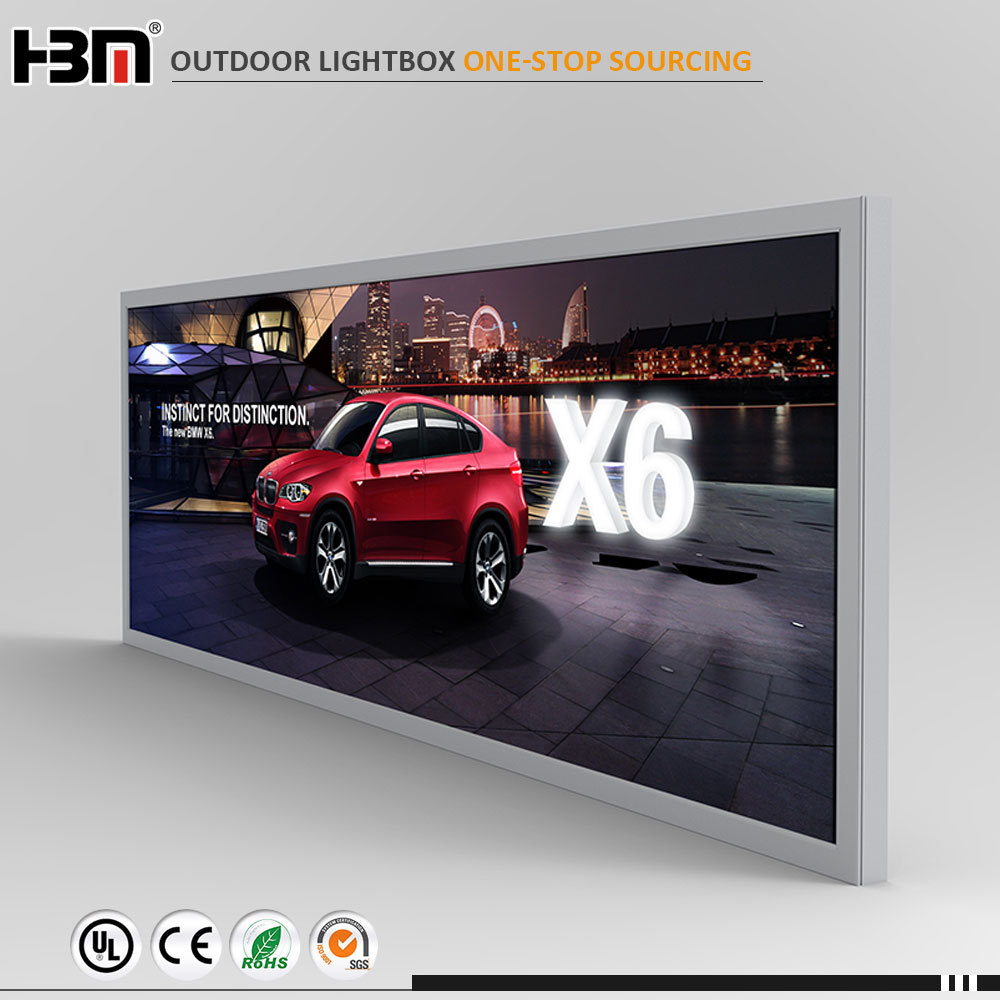

Light box finish effect diagram：
