| Model | HBMCB-100 |
|---|---|

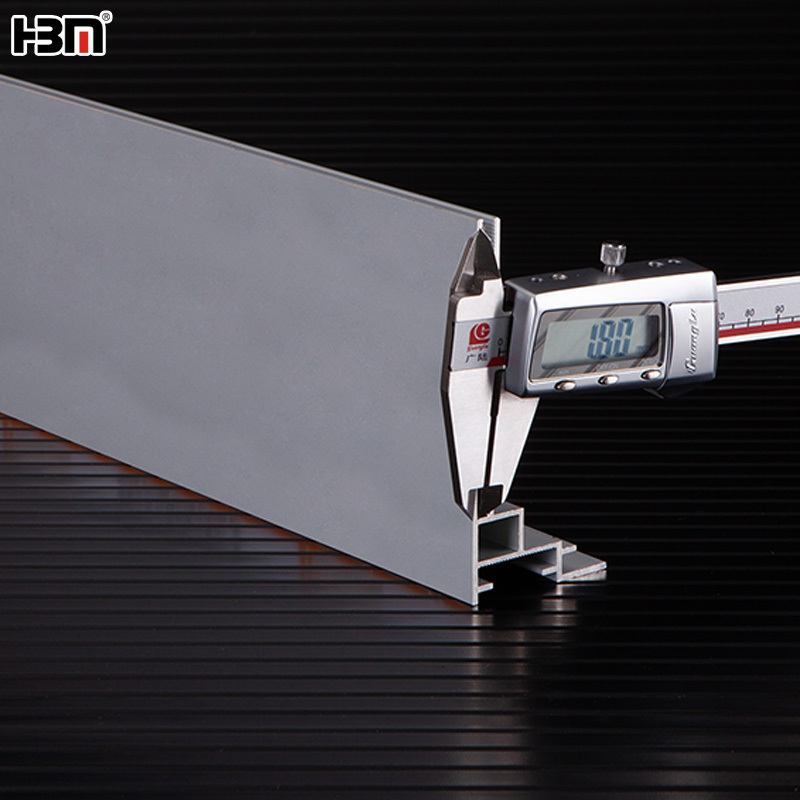

| Thickness | 100mm |
| Length | 6meters (conventional) |
| Material | 6063 aluminum alloy |
| Function | For advertising light box |
| Color | Silver,customized colors available |
| Shape | Strip |
| Type | Single sided |
| Surface Treatment | Anodized(conventional), other crafts available. |
| OEM & ODM | Both |
| Certification | SGS |
| Packing | Bulk package, special packing foam to protect the frames. |
| Free Sample | Less than 10cm sample for free is available,but you will be responsible for the shipping charge. |
product details：
|

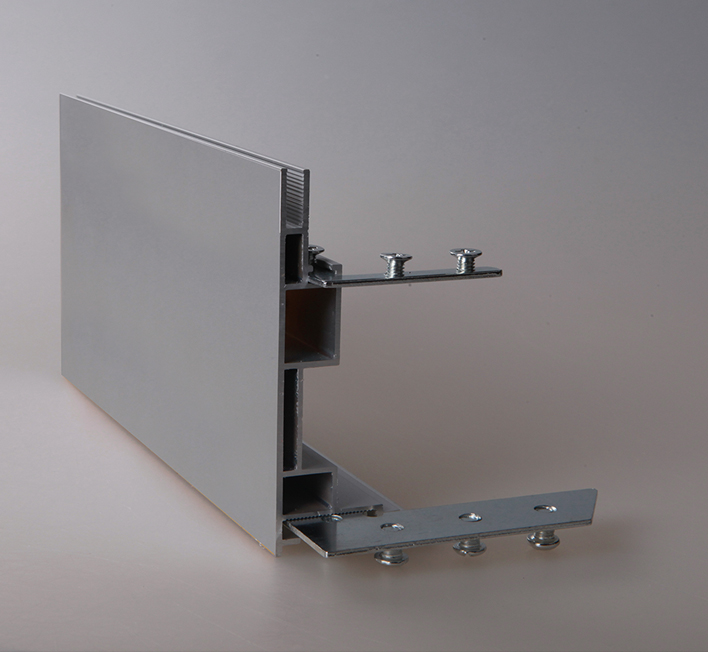

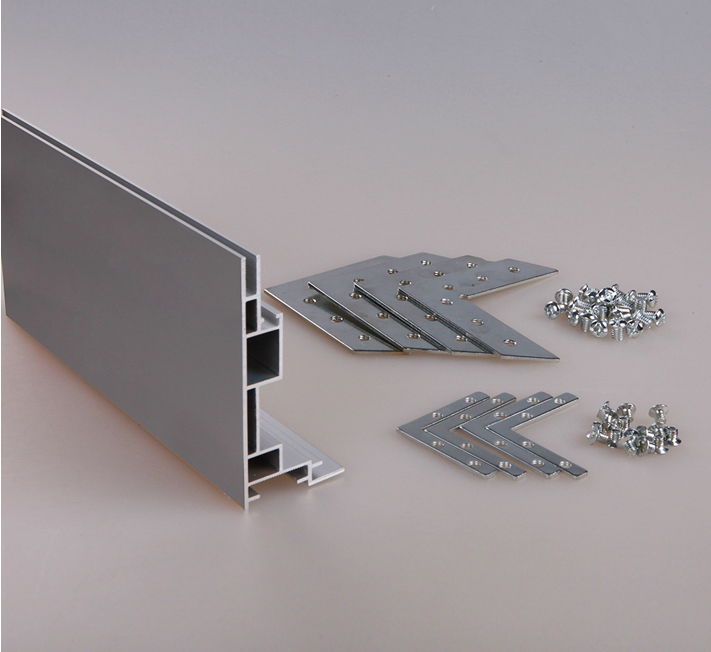

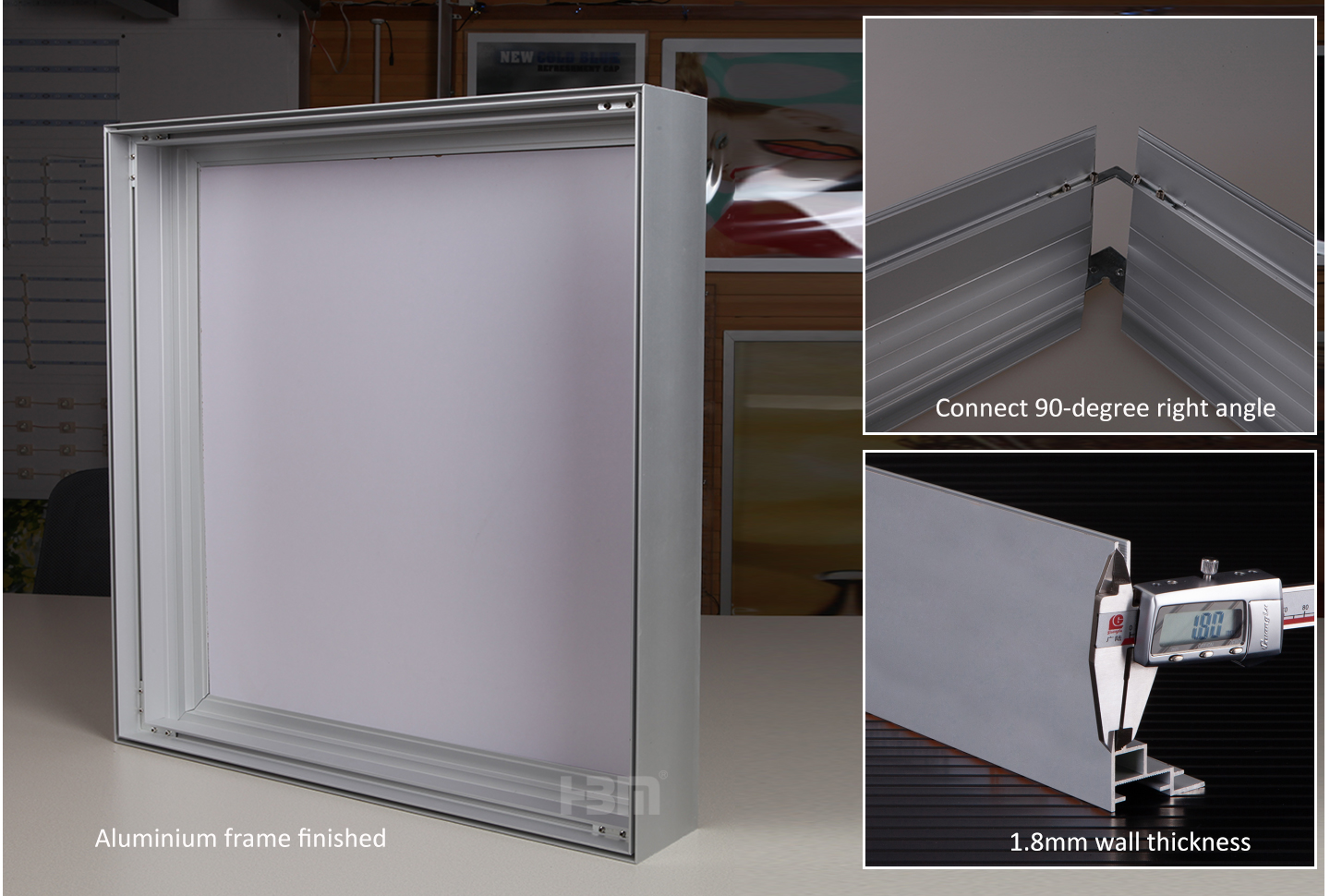

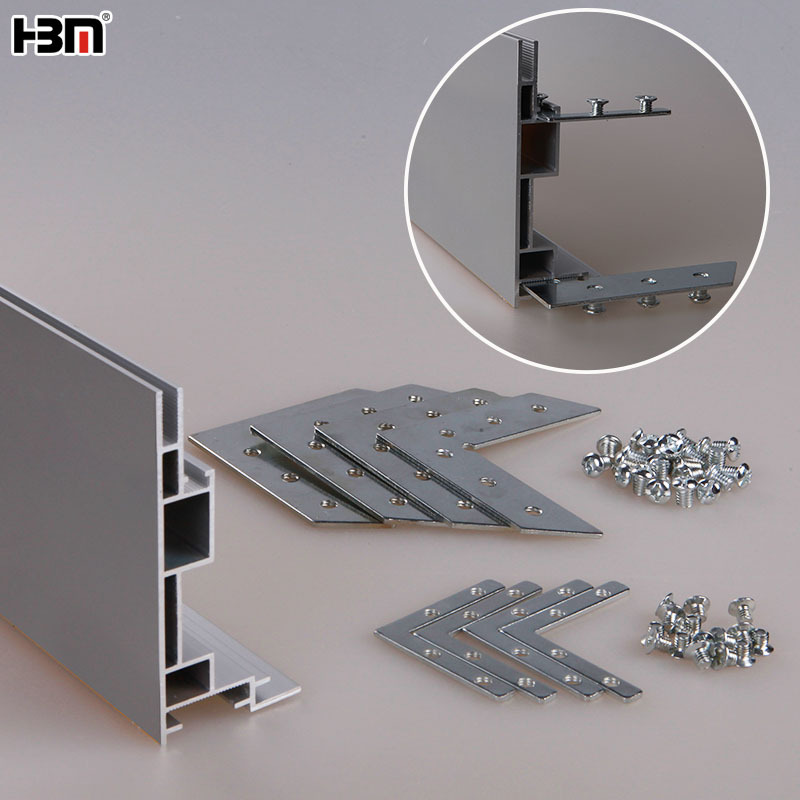

Connector accessories for the aluminum frame |
The slot position for the key code placement |
|

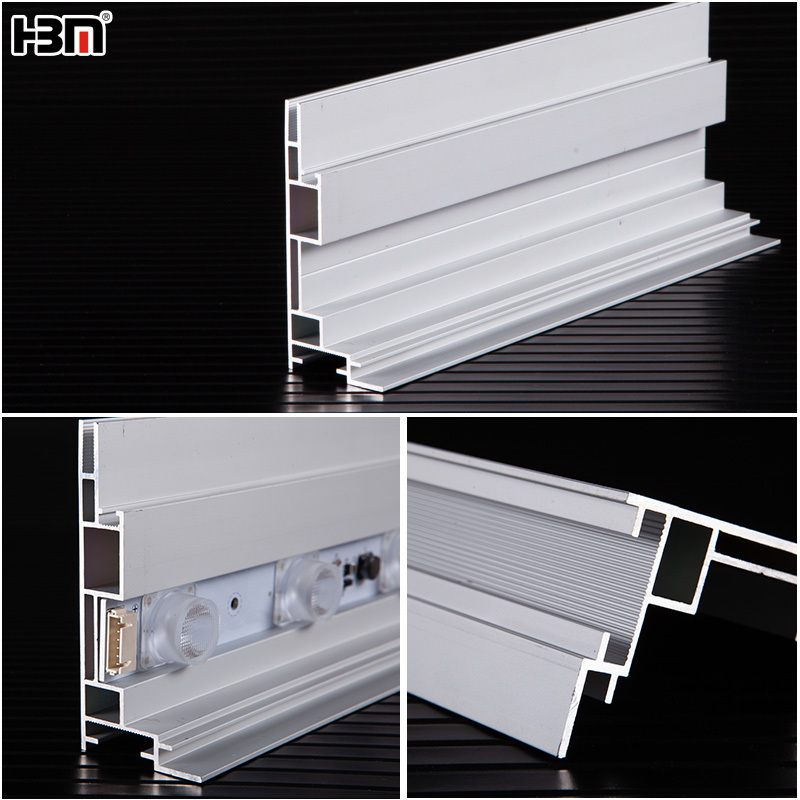

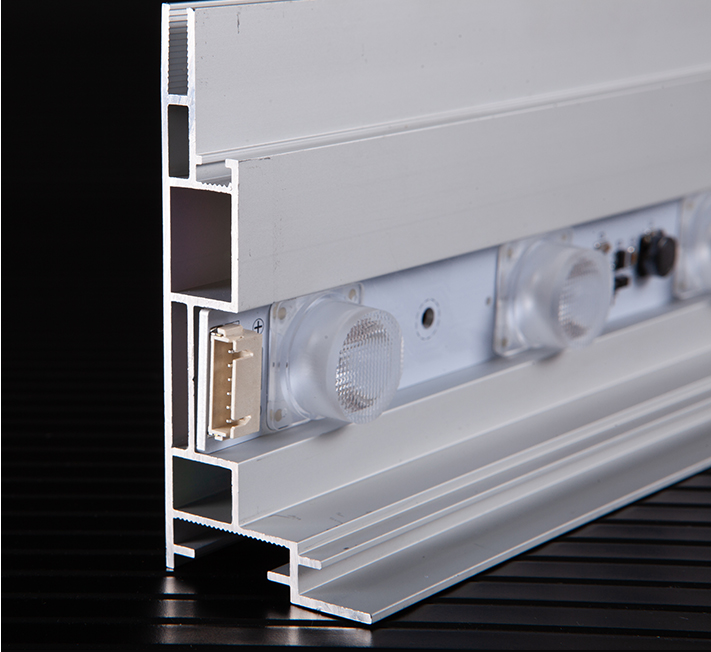

The LED edgelit light slot design, it is easy to install the LED light,Fix with screws or 3M adhesive, saving labor and costs. and make great brightness and effect of the light. Save time and cost |

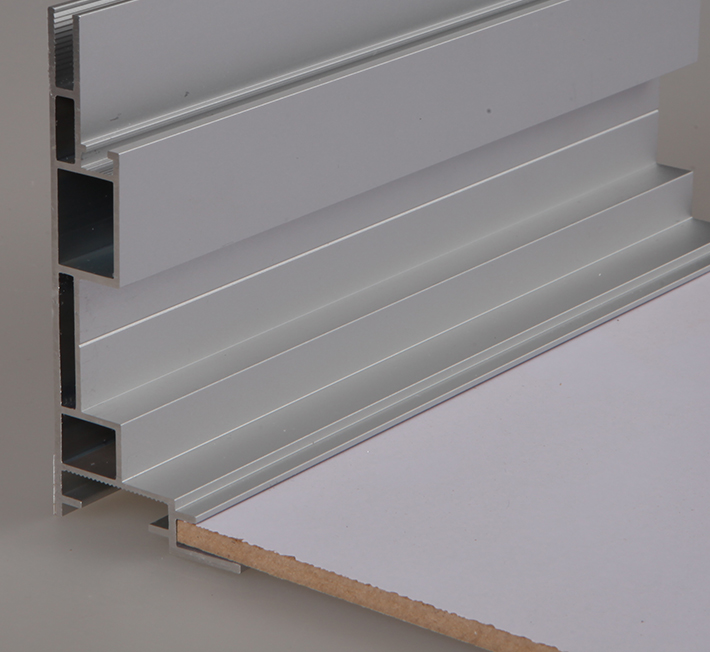

The backpanel slot design, you may insert the backpanel directly for small size lightbox. If big size, we advise to screw it on the frame to make sure the stability. |

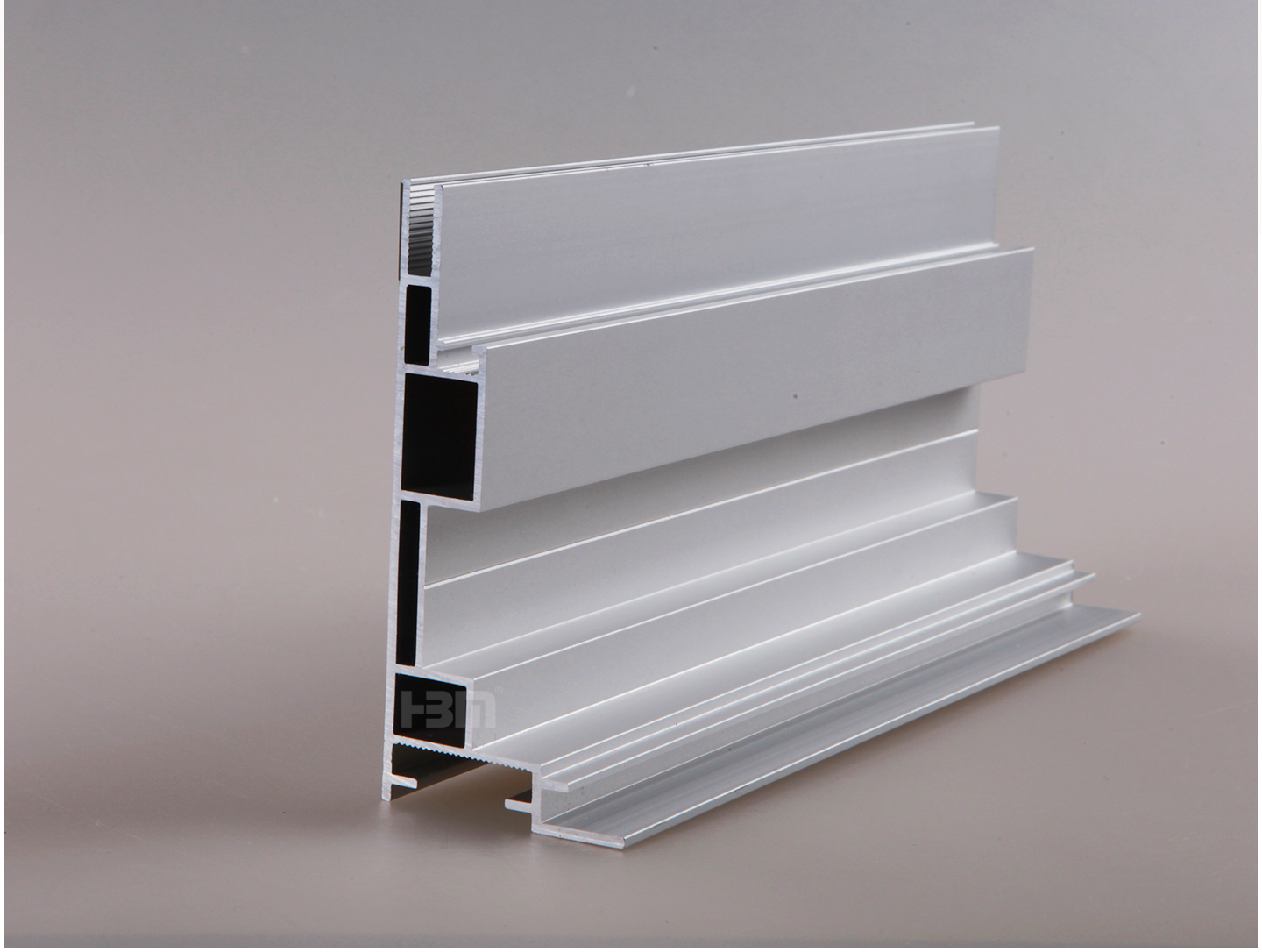

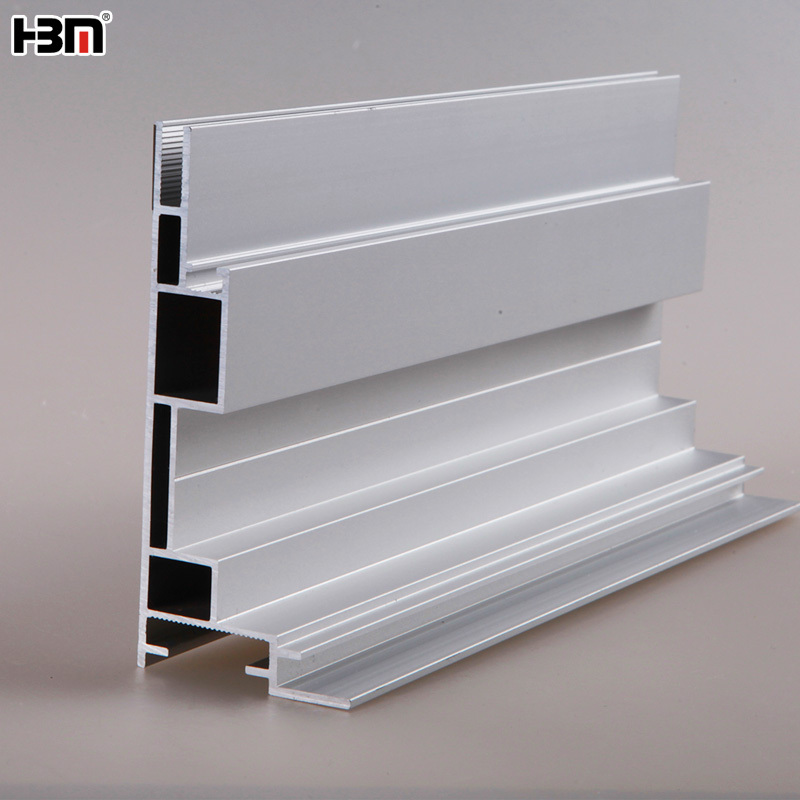

10cm aluminum profile structure diagram

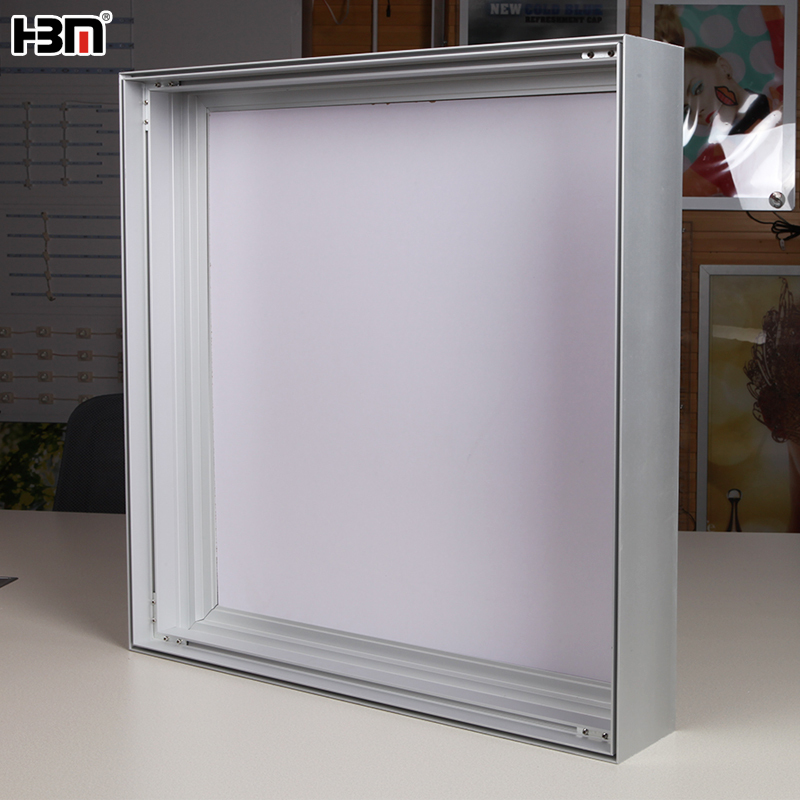

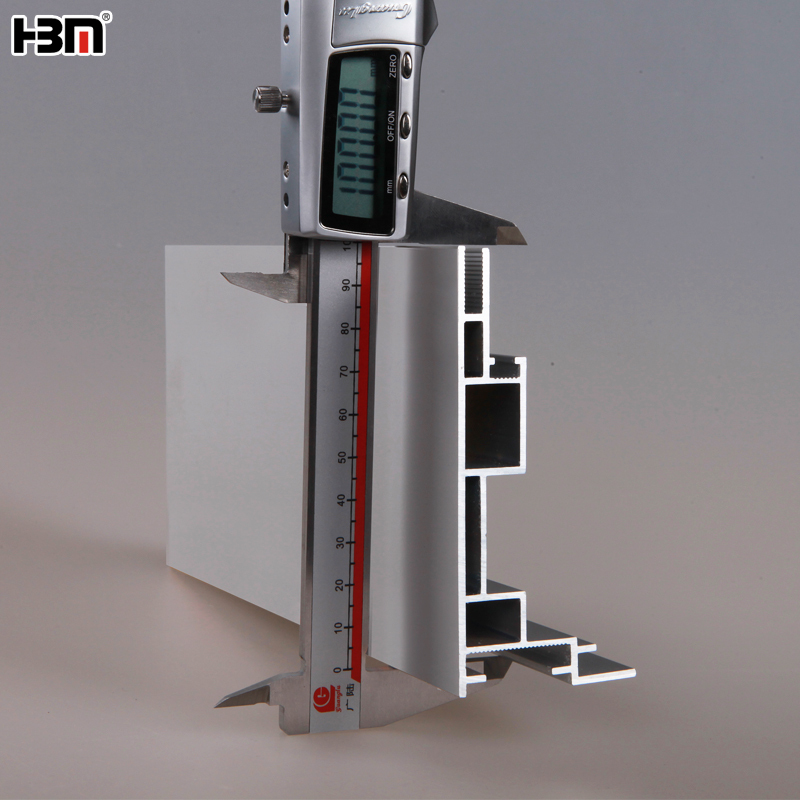

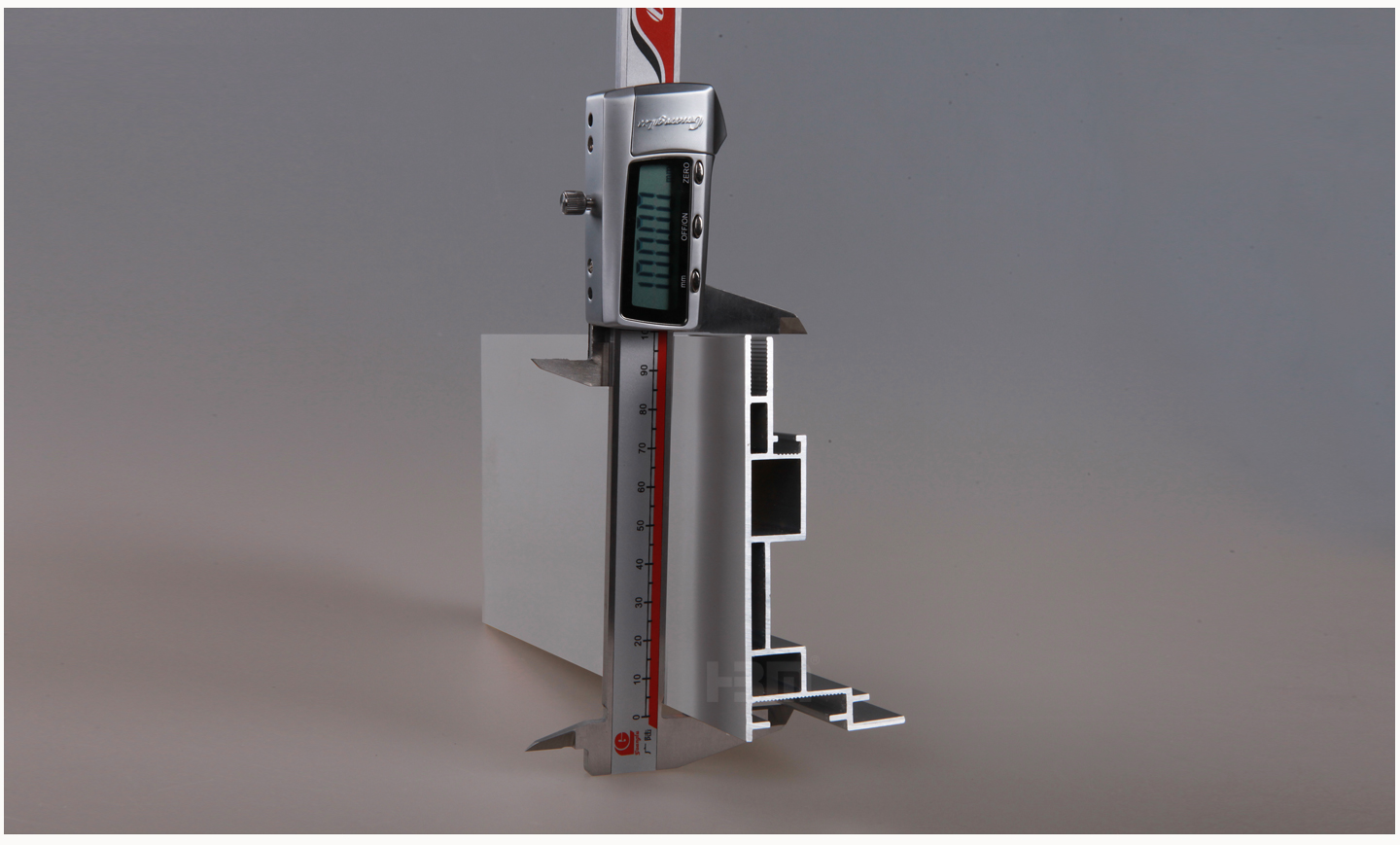

The 100 mm deep aluminum SEG frame is engineered for single-side backlight or edge light applications
This profile is made of 6063 aluminum alloy, with a 100 mm thickness and wall thickness approximately 2.0 mm. It is designed as a single-sided frameless SEG frame, which can be used with either backlight LED strips or edge-lit LED strips according to visual requirements. The frame shape is a strip, finished with anodizing as standard, while custom colors and other surface treatments are available. The strip standard length is 6 meters, though custom cuts are possible. This product is suitable for advertising light boxes using fabric graphics.
The material and structure support durability and visual quality in indoor advertising settings

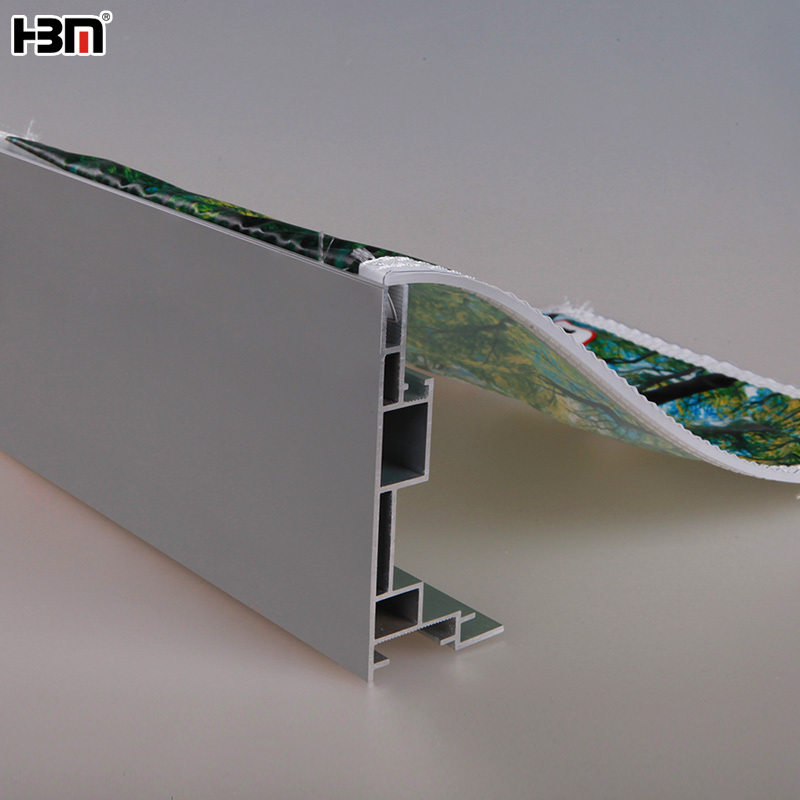

This profile is intended for fabric light boxes in settings such as shopping malls, retail stores, exhibition displays, and similar environments. The single-sided SEG frame allows one face of fabric graphic, and its design supports inserting backpanel or backing material, especially for smaller size boxes. In larger size, screwing of backpanel onto the frame is recommended to ensure stability. Connector accessories are provided to link frame segments; LED edge-lit slots are designed to allow LED strips to be fixed either with screws or with 3M adhesive, facilitating efficient installation and consistent lighting effect.
Packaging, custom options and sample policy ensure flexibility and protection during supply chain
The profile comes with SGS certification, and OEM & ODM customization is supported. Standard color is silver, but customized colors can be ordered. Packaging is bulk packaged, with special foam protection around the frames to protect finishes during transportation. For small samples (less than 10 cm), free samples are available but shipping cost is borne by the buyer. Accessories include connector joints for aluminum frame, slots for installing LED light, and backpanel slots. The overall product is designed for indoor advertising display use where neat frame edges and high visual fidelity are needed.
Product Advantages
Improve clarity of advertising graphics with large, single-side display capability
Because this is a backlight or side light lightbox profile single side 100mm frameless aluminum SEG frame, brands can display vivid fabric graphics on one face, with lighting either from behind or from the edge of the frame. The 100 mm depth ensures there’s sufficient room to house LED strips and backpanels for even illumination, reducing hot spots and visible strip shadows.
Reduce installation time and ensure secure LED mounting with dedicated slot design
The product includes an LED edge-lit light slot design that allows LED strips to be fixed via screws or 3M adhesive, making installation more efficient. The backpanel slot feature allows direct insertion for smaller frames or screwing for larger ones to improve stability. These structural details mean less labor and fewer parts required, helping lower installation complexity and cost for companies using this single-side SEG frame profile.
Enhance durability and flexibility through robust materials and protective packaging
Constructed from high-quality 6063 aluminum alloy with a thick wall, the profile frame resists bending or warping. Anodized surface treatment protects against wear and gives a consistent appearance. Packaging with foam guards reduces risk of damage in transit. Availability of custom colors, OEM/ODM services, and inclusion of connector accessories make the product flexible for different display formats while maintaining long-term performance in indoor lightbox settings.
