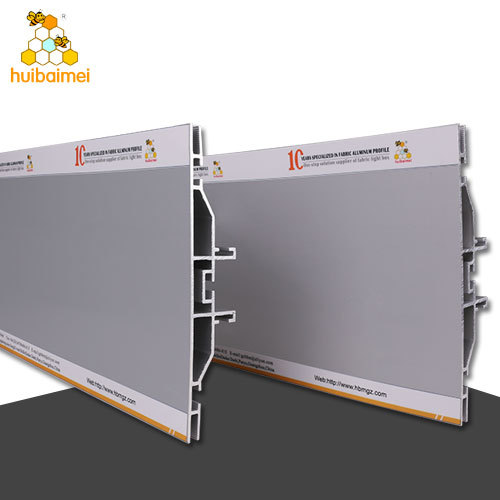

lightbox frame aluminium profile for frame 160MM edgelit exhibition advertising light box aluminum frame

Name: lightbox frame aluminium profile for frame 160MM edgelit exhibition advertising light box aluminum frame
Brand: Guangzhou Huibaimei Information Technology Co.,Ltd.
SKU: HBMCDX-160
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HBMCDX-160

160mm double side aluminum profile is widely used for advertisement light box( mainly for beauty/brand/ fashion brand/glasses brand),also for exhibition display and decorate display.

INQUIRY

PDF Format

Description

Installation Steps

case

Product description：

160mm double sided aluminum profile is mainly used for trade show / exhibition advertising display, 2mm wall thickness can be make large format fabric light box. Can be with backlit and edgelit light for the LED source. In additional, it is also designed with LED grooves for you to assemble simply and conveniently. Two side advertisement dispaly to attract customer eyes and which is the strongest show of products.

Product parameters
Model	HBMCDX-160
Thickness	160mm
Length	6meters
Material	6063 aluminum alloy
Function	For fabic light box
Color	Silver,customized colors available
Shape	Strip
Type	double side
Surface Treatment	Anodized(conventional), other crafts available.
OEM & ODM	Both
Certification	SGS
Packing	Bulk package, special packing foam to protect the frames.
Free Sample	Less than 10cm sample for free is available,but you will be responsible for the shipping charge.

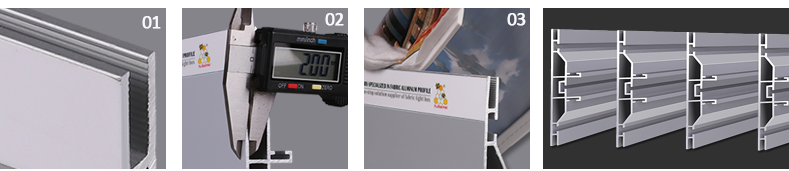

Product details:
01.Exclusive design15mm depth U shape slot

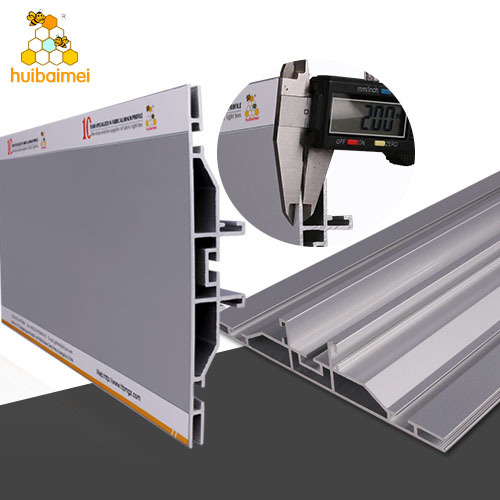

02.Unique design solid up to 2.0 mm wall thickness
03.Embedded Poster Simply

Product accessories:
01.UV printing fabric poster sewed with silicon rubber strips
02.Small corner connector A / Big corner connector G/ Inner hexagonal screw
03.Reinforce accessory(More than 3m support rod used)

Installation Steps:
1.Prepare 4 aluminum profiles and the following accessories
2.Drill on the aluminum profiles
3.Install the corner connectors
4.Splice the first angle--splice according to the corner connectors prepared
5.Splice the next angles
6.Put edge-lit LED in the slot of aluminum profile to fasten
7. Multiple LED strips splice correspondingly
8. Install built-in power supply
9. Connect wire--connect the power line and LED lamp line
10. Drill a hole: wire location
11. Install base --straight base or triangular base
12. Install poster--install posters on both sides, finished products

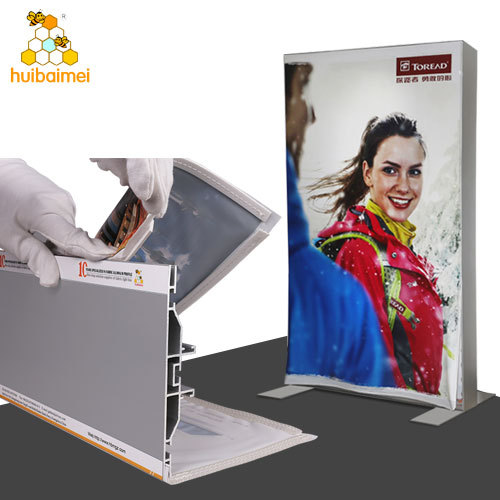

Double side aluminum profile application case
160mm double side aluminum profile be widely used for advertisement light box( mainly for beauty brand/ fashion brand/glasses brand),
also for exhibition display and decorate display.

Other models for your reference:
HBM developed more than hundreds of models aluminum profile for fabric light box, varous frame thickness, styles and function for you to choose according to installation place and requirement , 2 ways display: single side and double sided.
