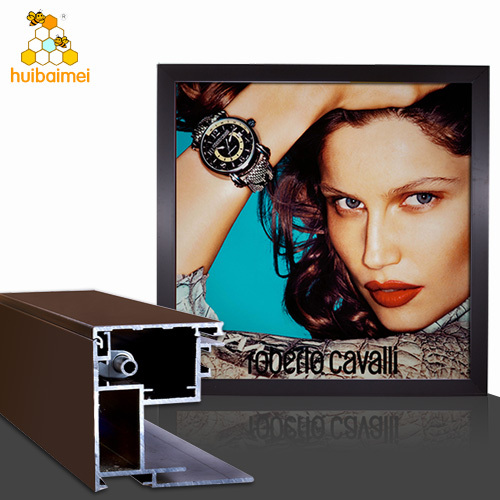

80mm depth aluminium extrusion profile snap fabric frame for outdoor large size advertising lightbox

Name: 80mm depth aluminium extrusion profile snap fabric frame for outdoor large size advertising lightbox
Brand: Guangzhou Huibaimei Information Technology Co.,Ltd.
SKU: HBMAX65-80 Aluminum
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HBMAX65-80 Aluminum

80mm front open fabric snap frame aluminum profile, cover width 65mm, the depth 80mm, 2mm wall thickness design, can be used for large format fabric light box., is usually used in outdoor/indoor large fabric light box advertising and more popular with do

INQUIRY

PDF Format

Description

Installation Steps

case

OTHER ALUMINUM

Product description：

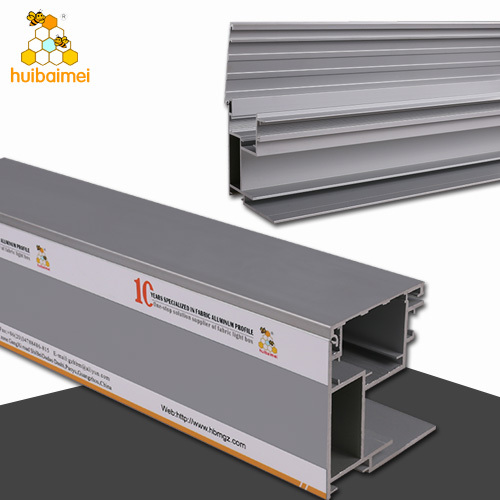

HBMA65-80 front open fabric snap aluminum profile, cover width 65mm, the depth 80mm,with the features of front cover open and fix posters using slide fasteners, is usually used in outdoor/indoor large fabric light box advertising, the thicken design make the fabric light box stable,thicken,high cost-efficient etc.
Snap frame aluminum profile is designed according to the application of mechanics and aesthetics and divided into 2 parts:base and cover. Through shrapnels to connect base and cover, the finished aluminum profile can be waterproof. In addition, its wall thickness is up to 2.0mm, makes the light box stable and keeping the shape. As engineering profile, is widely used in subway/high-speed railway/municipality/property business siness, etc . indoor and outdoor advertising light boxes. Large advertising can attract customers easily and achieve the advertising effect.
Product specification：

Model	HBMAX65-80

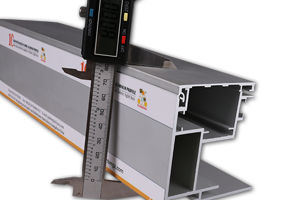

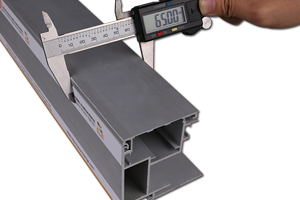

Thickness	frame depth:80mm front cover width:65mm
wall thickness	2.0-2.2mm
Length	6meters (conventional)
Material	6063 aluminum alloy	Aluminum front cover width:65mm
Function	For fabric advertising light box
Color	Silver,customized colors available
Shape	Strip
Type	Single sided
Surface Treatment	Anodized(conventional), other processing available.	Aluminum frame depth:80mm
OEM & ODM	Both
Certification	SGS
Packing	Bulk package, special packing foam to protect the frames.
Free Sample	Less than 10cm sample for free is available,but you will be responsible for the shipping charge.	Aluminum splicing method

Product details:

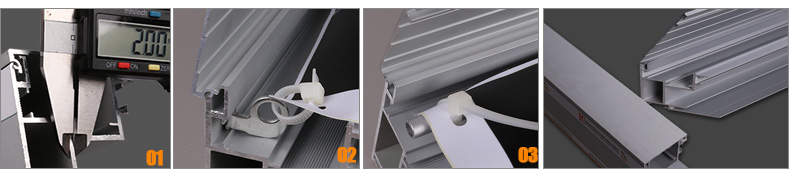

01.Unique design solid up to2.0 mm wall thickness

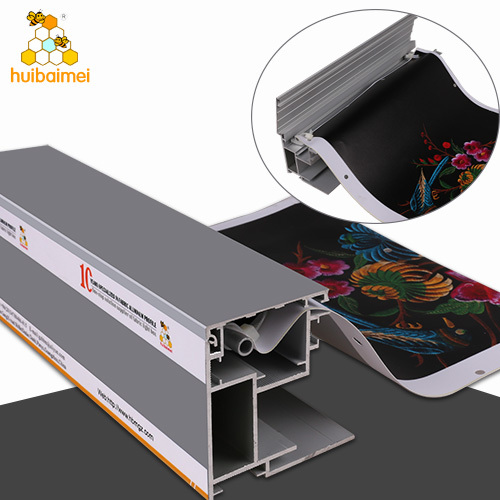

02.Details of poster fixing-Fix slide fastener
03.Details of poster fixing-Fix circule tube
80mm depth aluminium extrusion snap fabric frame

80mm depth aluminium extrusion snap fabric frame

Product accessories:

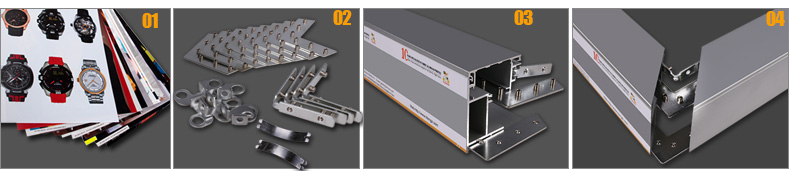

01.Fabric poster（waterproof）
02:8 Big corner connector A /4 Small corner connector A/Slide fastener A(8pcs/m)/Shrapnel B(5pcs/m)
03.Aluminum corner connector accessory

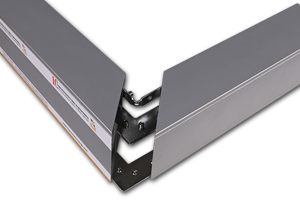

04.90°seamless splicing
80mm depth aluminium extrusion snap fabric frame

Installation Steps：
1.Confirm the location and mark the size according to light box installation holes
2.Drill hole with expansion screws inserted
3.Fix poster with slide fastener(8pcs/m) or pipe
4.Put relevant corner connectors in the place of 4 aluminum profiles' cutting
5.Splice the first 90°angle of aluminum profile
6.Insert back panel
7.Splice the fourth aluminum profile with screws fixed
8.Put the aluminum frame on the wall with screws fixed
9.Fix the led on the back panel
10.Connect power supply with corresponding positive and negative wire
11. Fix the poster with ribbon
12.Finished products
light box installation

SNAP FRAME aluminum profile application case：

HBMAX65-80 thicken style fabric light box aluminum profile is widely used for big size fabric light box advertisement, such as: shopping mall exterior wall, railway, metro, airport, indoor/outdoor all suitable, is a multifunction advertising aluminum profile .

Other models for your reference:
Huibaimei has more than 100 models for the fabric light box aluminum profile, different frame thickness，different styles and different function for you to choose according to using place and using environment , 2 ways display: single side and double side. snap fabric aluminum recommended：
