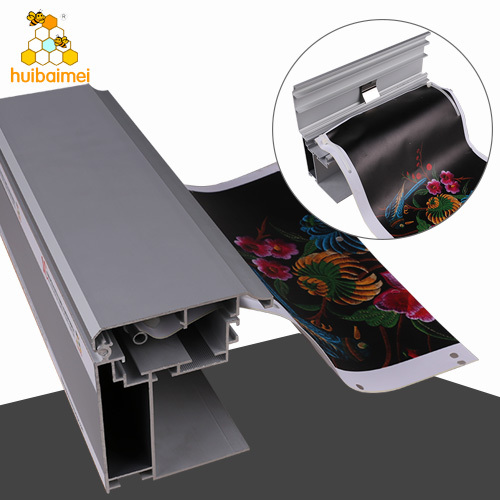

120mm depth silver anodized aluminium snap frame profile for outdoor light box

Name: 120mm depth silver anodized aluminium snap frame profile for outdoor light box
Brand: Guangzhou Huibaimei Information Technology Co.,Ltd.
SKU: HBMA100-120
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HBMA100-120

Thicken 100-120 fabric snap frame aluminum profile, 120mm depth and wall thickness is up to 2.0mm. which is specially designed for outdoor large engineering advertising light box. Usually used for waterfproof outdoor light box.

snap frame catalogDownload

INQUIRY

PDF Format

Description

Installation Steps

case

OTHER ALUMINUM

Product description：
HBMA100-120 front open fabric snap aluminum profile, cover width 100mm, the depth 120mm,with the features of front cover open and fix posters using slide fasteners, is usually used in outdoor/indoor large fabric light box advertising and more popular with advertisers with the features of stable,safe,thick,anti-corrosion,high cost-efficient etc.

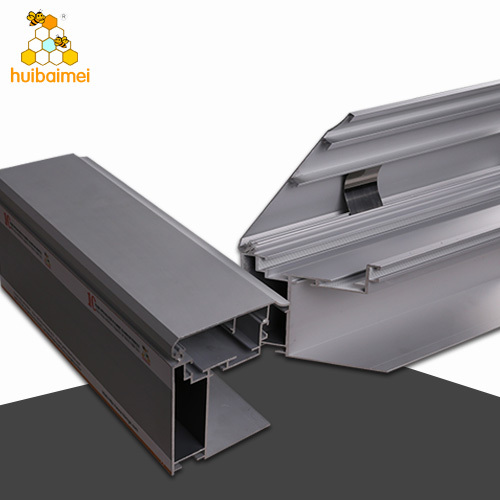

Front open fabric snap aluminum profile is designed according to the application of mechanics and aesthetics and divided into 2 parts:base and cover. Through shrapnels to connect base and cover, the finished aluminum profile can be waterproof. In addition, its wall thickness up to 2.0mm, makes the light box stable and keeping the shape. The design of built-in accessory and “sawtooth-type” thread, makes the aluminum profile beautiful,convenient, stable and safe. As engineering profile, is widely used in subway/high-speed railway/municipality/property business siness, etc indoor and outdoor advertising light boxes. Large advertising can attract customers easily and achieve the advertising effect.
Product specification：

Model	HBMA100-120

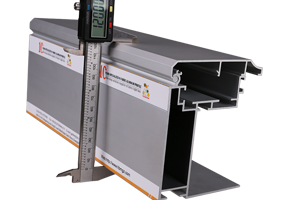

Thickness	frame depth:120mm front cover width:100mm
wall thickness	1.8-2.0mm
Length	6meters (conventional)

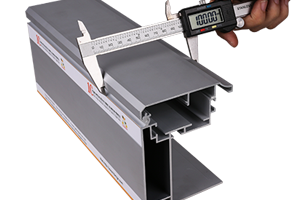

Material	6063 aluminum alloy	Aluminum front cover width:100mm
Function	For fabric advertising light box

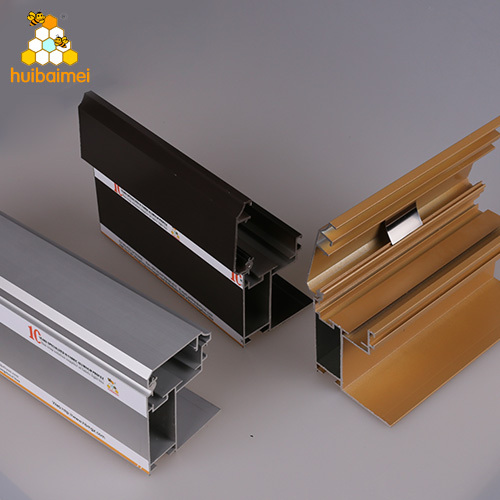

Color	Silver,customized colors available
Shape	Strip
Type	Single sided
Surface Treatment	Anodized(conventional), other processing available.	Aluminum frame depth:120mm
OEM & ODM	Both
Certification	SGS
Packing	Bulk package, special packing foam to protect the frames.

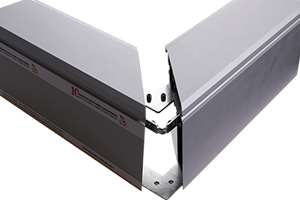

Free Sample	Less than 10cm sample for free is available,but you will be responsible for the shipping charge.	Aluminum splicing method

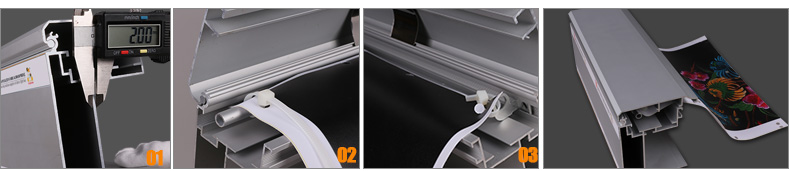

Product details:
01.Unique design solid up to2.0 mm wall thickness
02.Details of poster fixing-Fix circule tube
03.Details of poster fixing-Fix slide fastener
120mm depth outdoor waterproof fabric light box

120mm depth outdoor waterproof fabric light box

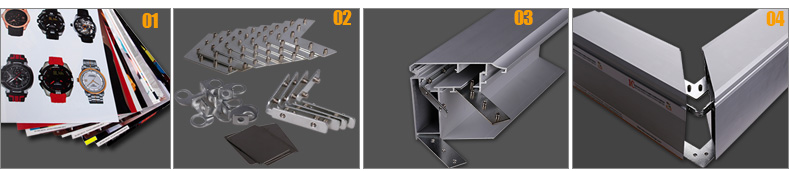

Product accessories:
01.Fabric poster（waterproof）
02:8 Big corner connector A /4 Small corner connector A/Slide fastener A(8pcs/m)/Shrapnel A(5pcs/m)
03.Aluminum Reinforce accessory
04.90°seamless splicing
120mm depth outdoor waterproof fabric light box

Installation Steps：
1.Confirm the location and mark the size according to light box installation holes
2.Drill hole with expansion screws inserted
3.Fix poster with slide fastener(8pcs/m) or pipe
4.Put relevant corner connectors in the place of 4 aluminum profiles' cutting
5.Splice the first 90°angle of aluminum profile
6.Insert back panel
7.Splice the fourth aluminum profile with screws fixed
8.Put the aluminum frame on the wall with screws fixed
9.Fix the led on the back panel
10.Connect power supply with corresponding positive and negative wire
11. Fix the poster with ribbon
12.Finished products
light box installation

Single side snap frame aluminum profile application case：

HBMA100-120 thicken style fabric light box aluminum profile is widely used for big size fabric light box advertisement, such as: shopping mall outer wall, railway, metro, airport, indoor/outdoor all suitable, is a multifunction advertising aluminum profile .

Other models for your reference:
We, Huibaimei comnay have more than 100 models for the fabric light box aluminum profile, different frame thickness，different styles and different function for you to choose according to using place and using environment , 2 ways display: single side and double side.
