Installation instructions for double sided wall mouted fabric lightbox

Views : 489
Update time : 2018-06-12 14:27:22
Installation for EXPO free standing fabric light box

Double sided fabric light box is popular used for exhibition advertising display stands, which is made of double sided aluminum profile SEG frame with base free standing, high brightness LED edge lit module illuminate uniformity, and no shadow and dark on the poster.

HBM SEG double sided frame various depth for option:45mm/78mm/100mm/120mm/150mm/160mm               Edgelight and backlight LED for option.
Here provide the installation guide for reference

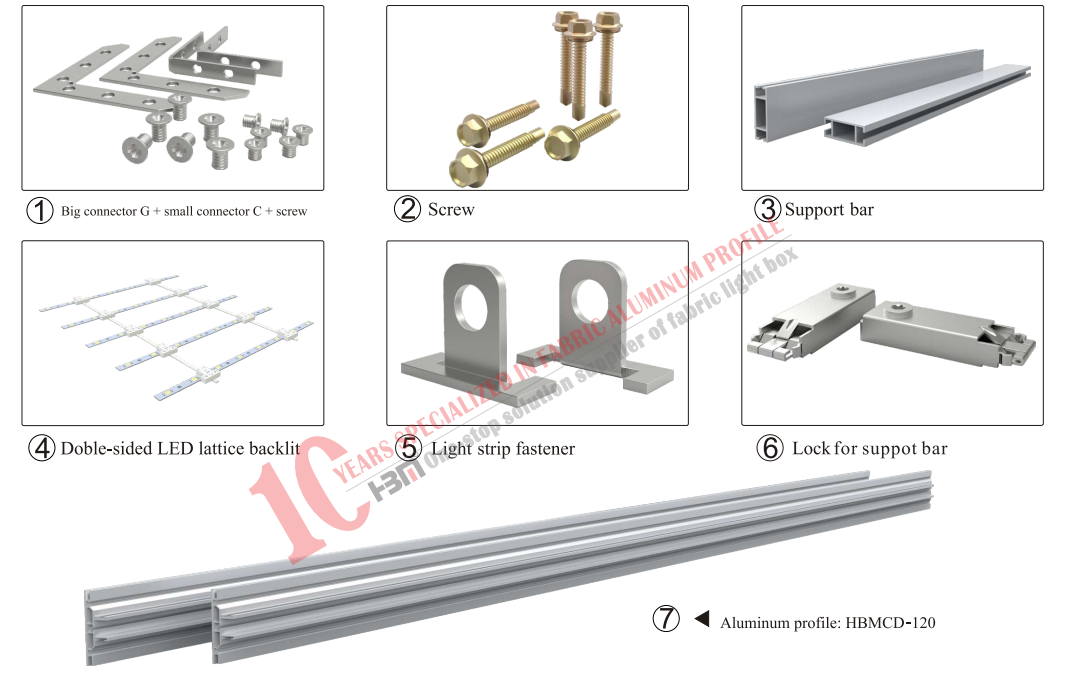

1)  prepare all the materials :

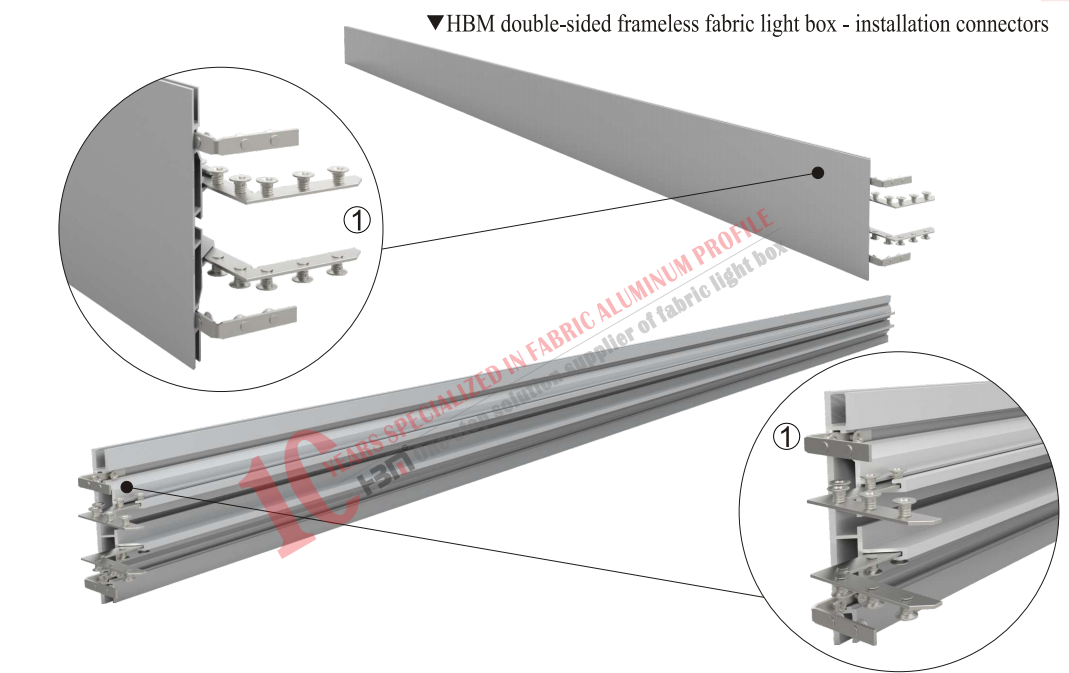

2) Install the frame with connetors

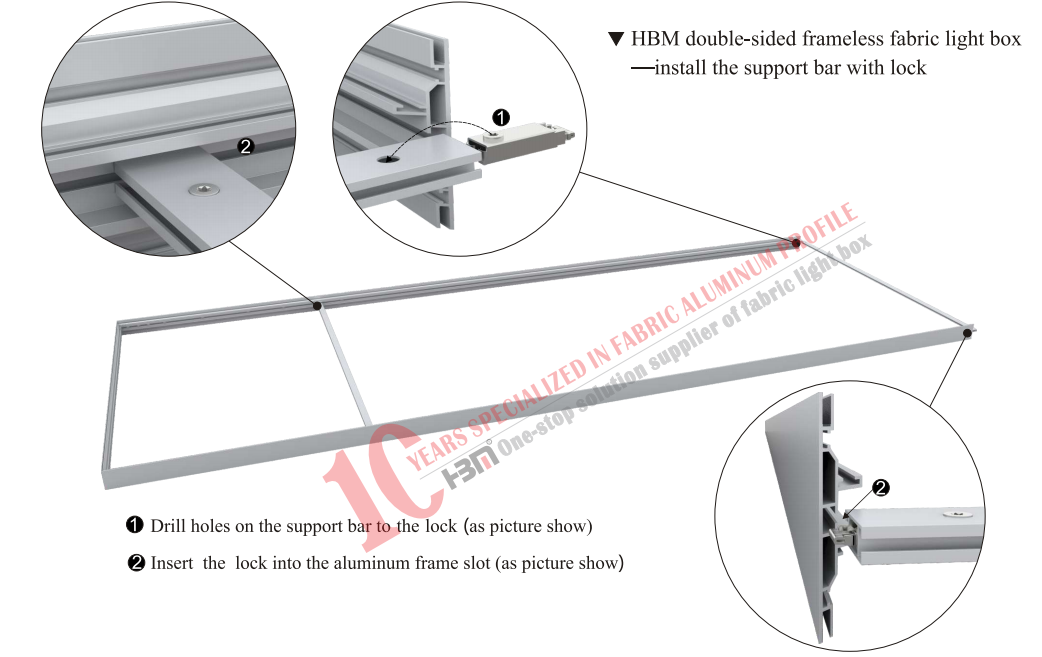

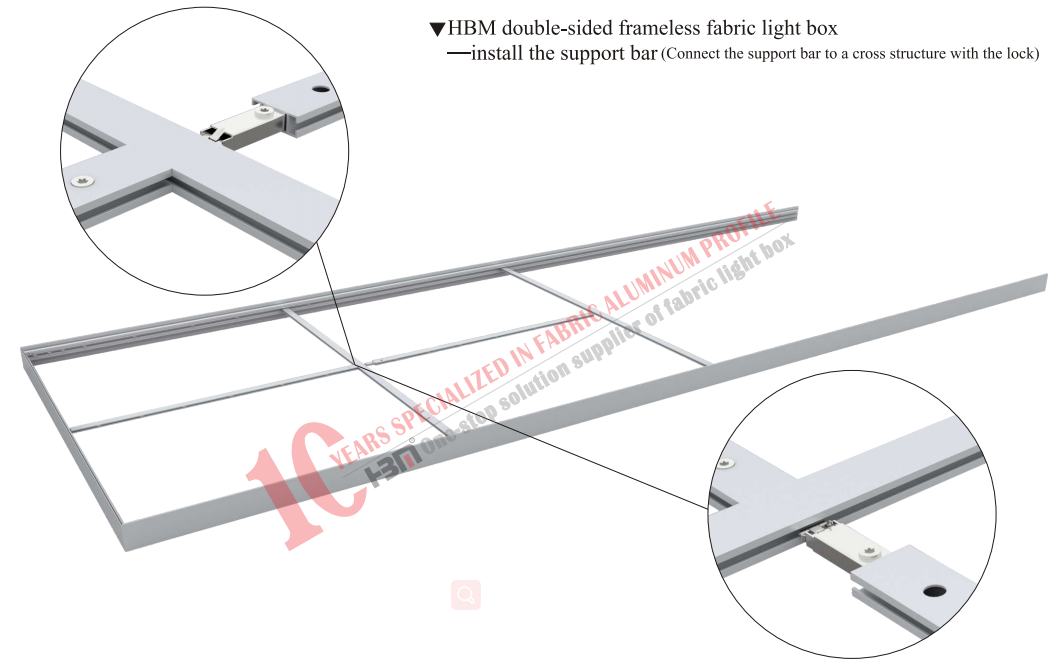

3) Install the middle support frame

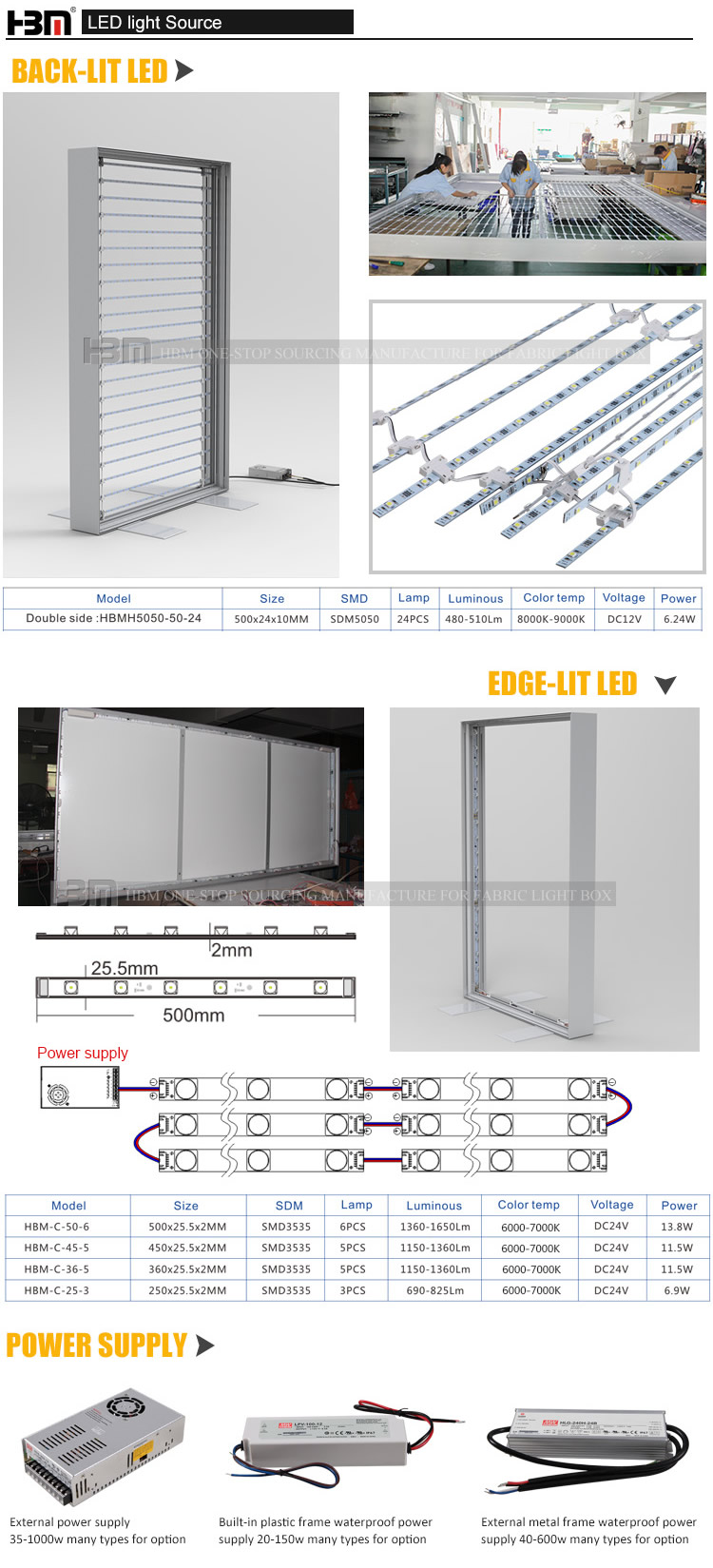

4) Install the LED strip: backlight or edgelight

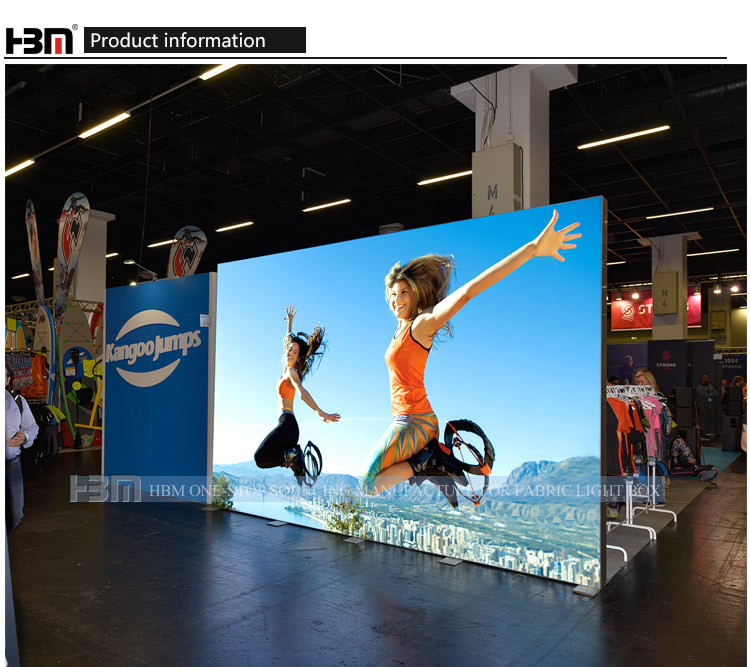

5) The finished lightbox photos


Hope our instructions can do help with you, any confused pls feel free to contact us.
Many thanks for your time!
