Double sided fabric light box Home > Fabric light box > Double sided fabric light box

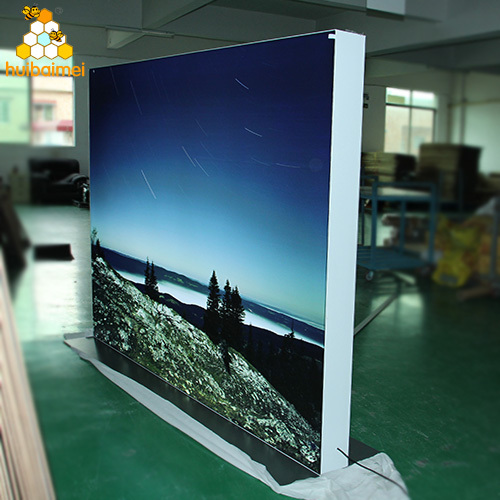

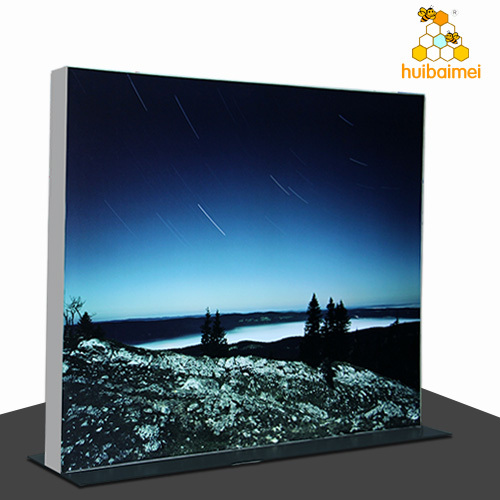

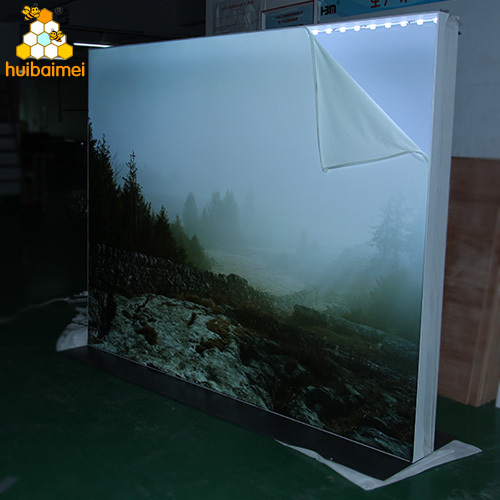

160mm double side aluminum frameless fabric light box customized modular exhibition trade stand dispaly
  • 160mm double side aluminum frameless fabric light box customized modular exhibition trade stand dispaly
  • 160mm double side aluminum frameless fabric light box customized modular exhibition trade stand dispaly
  • 160mm double side aluminum frameless fabric light box customized modular exhibition trade stand dispaly

160mm double side aluminum frameless fabric light box customized modular exhibition trade stand dispaly

Item No.: HBMCDX-160 light box
Double sided fabric light box is widely used for customized modular exhibition trade stand dispaly. Floor standing with base or ceiling hanging display type. Backlit LED or edgelit LED is workable for the aluminum profile frames.
INQUIRY

 Aluminum Frame Diffuse Reflection Backlit LED Fabric Slim Light Box For Tradeshow:
Double side fabric light box are widely used for supermarket, Window display and large size exhibition. One light box with double side advertisement, make full use of products features. Double side light box always display with floor standing or hanging type ( small sizesuitable for hanging type),  high power edge-lit led is the best choice with it's high brightness and energy-saving, without shadow on the surface.

Specification
Model HBMCDX-160
Frame Thickness 160MM
Aluminum Profile Length 6meters (conventional)
Light source side light LED3535
Material 6063 aluminum alloy and fabric poster
Function For advertising and display
Frame Color Silver,customized colors available
Shape Square and special shape
Type Double Sided
Hang type wall mounted or free standing
Poster print UV,3P fabric,textile,french fabric
Surface Treatment Anodized(conventional), other crafts available.
Both & ODM Both
Certification CE UL RoHS SGS
Packing foam plastic bag+carton+splint wooden frame
Free Sample Sample  is available,but you will be responsible for the shipping charge.

160mm frameless light box details:
01.2.0mmAluminum wall thickness
02.Easy change picture--Embedded Poster Simply
03.Thick and solid flat aluminum alloy base
04.high power edge-lit LED SMD3535


160mm double side light box accessories:
01.UV printing poster and theRubber strips
02.Small corner connector A / Big corner connector G/ Inner hexagonal screw
03.Reinforce accessory(More than 3m support rod used)


you can also choose the same with different thickness of double-sided light box:
HBMCD-120 double side light box HBMCD-150 double side light box
Double Sided Fabric Light Box Installation Instructions:

Installation Steps:
1.Prepare 4 aluminum profiles and the following accessories
2.Drill on the aluminum profiles
3.Install the corner connectors
4.Splice  the first angle--splice according to the corner connectors prepared
5.Splice  the next angles
6.Put edge-lit LED in the slot of aluminum profile to fasten
7. Multiple LED strips splice correspondingly
8. Install built-in power supply
9. Connect wire--connect the power line and LED lamp line
10. Drill a hole: wire location
11. Install base --straight base or triangular base
12. Install poster--install posters on both sides, finished products

                                          Double side aluminum profile application case
160mm double side aluminum profile be widely used for advertisement light box( mainly for beauty brand/ fashion brand/glasses brand),
also for exhibition display and decorate display
.
